| Place of Origin: | Hefei, Anhui province, China |
|---|---|
| Certification: | ISO9001:2020 |
| Model Number: | MF57 |
| Minimum Order Quantity: | 2,000pcs/order |
| Price: | USD 0.12 per piece |
| Packaging Details: | standard export packing for seaworthy |
| Delivery Time: | 12 to 15days |
| Payment Terms: | Western Union, L/C, T/T |
| Supply Ability: | 20,000 pcs/month |
| Length: | Min25mm | Lead Material: | Tinned Copper |
|---|---|---|---|
| Lead Length: | 25mm | Type: | NTC (Negative Temperature Coefficient) Thermistor |
| Thermal Shock Resistance: | ≤5% | Resistance At 25°C: | 10kΩ |
| Sensing Way: | Resistence | Glass Probe: | 1.3mm |
| Probe: | 1.3mm Glass Probe | Use: | Home Appliances, Automotive Oil Temp |
| Way To Install: | Inserting | Chip: | NTC Thermistor |
| Operating Temperature: | Normal Or Low Temperature | Resistence Value: | Custom |
| Tube: | PTFE Telfon 30L |

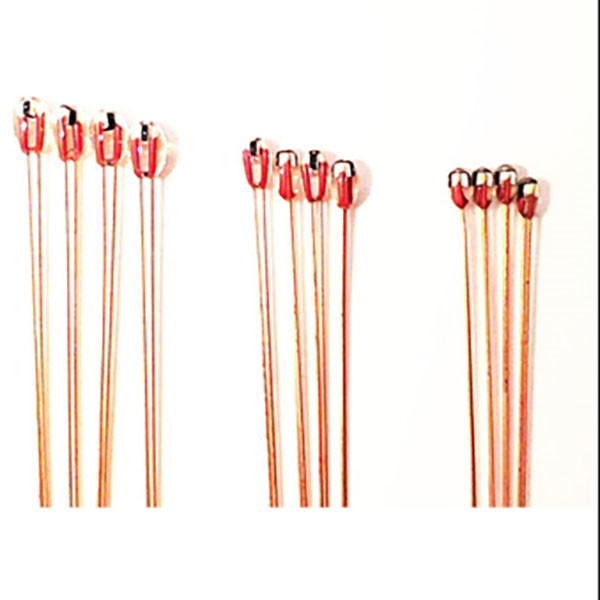

Intake Air Temp Sensor Oil temperature Sensor glass bead NTC thermistor probe
Product Description
The item is one intake air temperature sensor oil temperature sensor glass bead NTC thermistor probe, which play an important role in the air temperature measurement, oil temperature measurement. Thermistors have a large change in resistance with just a small change of temperature. A thermistor can be easily tailored to different ranges, depending on the one you purchase. As we all know, as the temperatura rises, the resistance lowers. This is a main property of negative temperature coefficient resistors (NTC).
Product Features:
Glass bead
High temperature resistant
Operating temperature range: -40℃~120℃
R25℃=10KΩ±1%, B25/50=3950K±1%
Application:
• Automotive parts
• Air temperature measurement
• Oil temperature measurement
Product Dimensions&Drawing
