| Place of Origin: | Hefei, Anhui, China |
|---|---|
| Brand Name: | Jingpu Brand |
| Certification: | CE,ROHS,ISO9001,ISO13485,UL |
| Model Number: | Mf57 |
| Minimum Order Quantity: | 1000 |
| Price: | USD 0.1-5 /PCS |
| Packaging Details: | Carton packing |
| Delivery Time: | 2-7days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 200 Million per Year |
| Way To Install: | Inserting | Sensing Way: | Resistence |
|---|---|---|---|
| Output Signal Type: | Analog Type | Material: | Ceramics |
| Measuring The Dielectric: | Temperature | IP Code: | IP64 |
| Transport Package: | Carton Packing | Appearance: | Miniature |
| Warranty: | 2 Years | After-sale Service: | Quality Assurance |
| Chip: | NTC Thermistor | Customization: | Yes |
| Operating Temperature: | Normal Or Low Temperature | Resistence Value: | Custom |
| B Value: | Custom | Shipping: | Shipping, Air, Or Express |
| Wire: | PVC, , Enamel Insulation | Free Sample: | Yes |
| High Light: | Glass Coating 100k Thermistor,Automobile Ntc Thermistor Sensor,Glass Coating Ntc100k |
||
100kohm 3950k 1% Glass Coating Ntc Thermistor Sensor For Automobile
Brief Instruction:
As one NTC thermistor sensor, glass coating NTC thermistor is made of glass bead, thinner dumet wire. Its feature is high temperature resistance. Glass coating NTC thermistor be widely apply for automotive electronic, home appliance, industrial device etc.
Features:
Glass encapsulation
High temperature resistant
Operating temperature range: -40℃~300℃
R25=100KΩ±1%,B25/50=3950±1%
Glass probe 1.3mm
Application:
Home appliance
Automotive electronic
Industrial device etc
Part Number Code:
Structure and Dimensions:
Electrical specification:
| Product Specification | Rec.at 25℃(KΩ) | Beta value | (In air) Pmax(mW) |
δ (mW/℃) |
thermaltime constant τ(sec.) | Operating Temperature Range TL-TH(℃) | Total length L(mm) |
| B7A202□3470A□L50 | 2 | B25/85=3470 | Approx.20 | Approx.0.75 | Max.10 | -40~300 | 50 |
| B7A202□3830A□L50 | 2 | B25/85=3977 | |||||
| B7A502□3950A□L50 | 5 | B25/85=3950 | |||||
| B7A103□3435B□L50 | 10 | B25/85=3435 | |||||
| B7A103□3950A□L50 | 10 | B25/50=3950 | |||||
| B7A503□3950A□L50 | 50 | B25/50=3950 | |||||
| B7A104□3950A□L50 | 100 | B25/50=3950 | |||||
| B7A104□4132B□L50 | 100 | B25/85=4132 | |||||
| B7A104□4200A□L50 | 100 | B25/50=4200 |

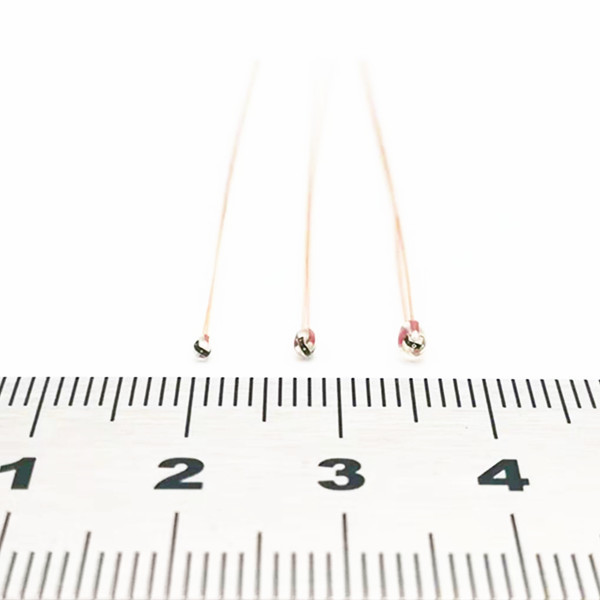

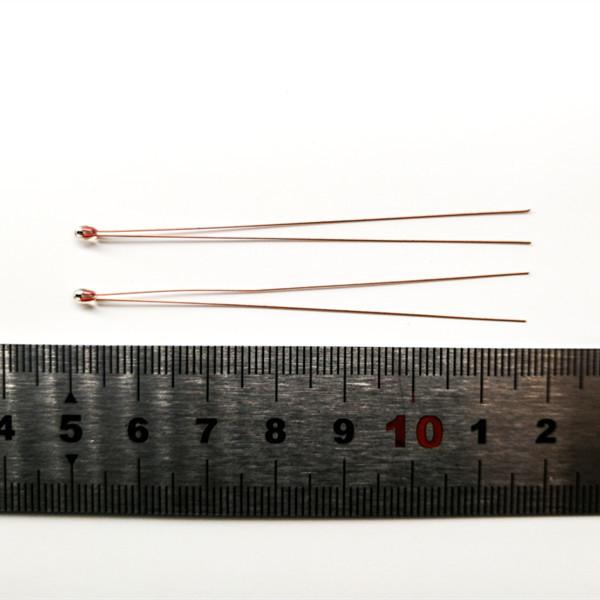

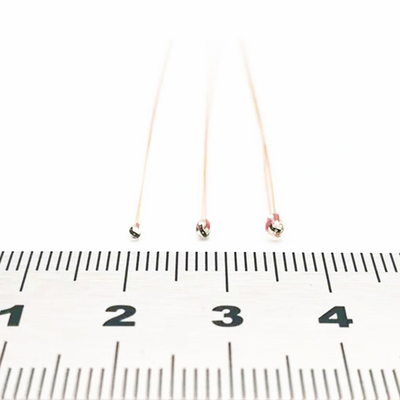

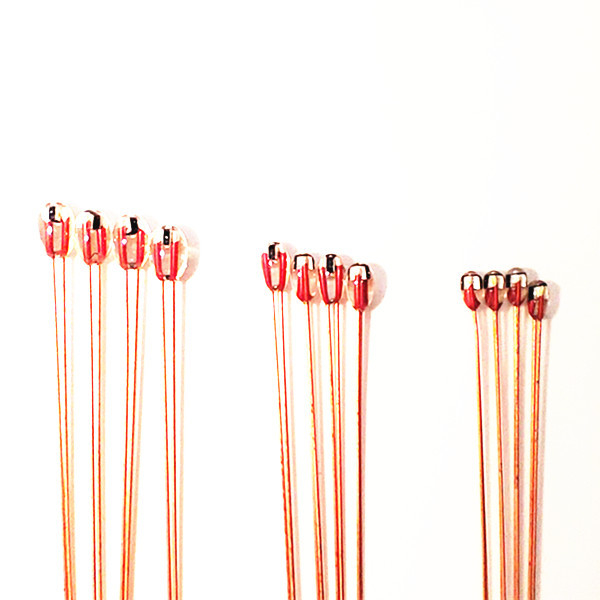

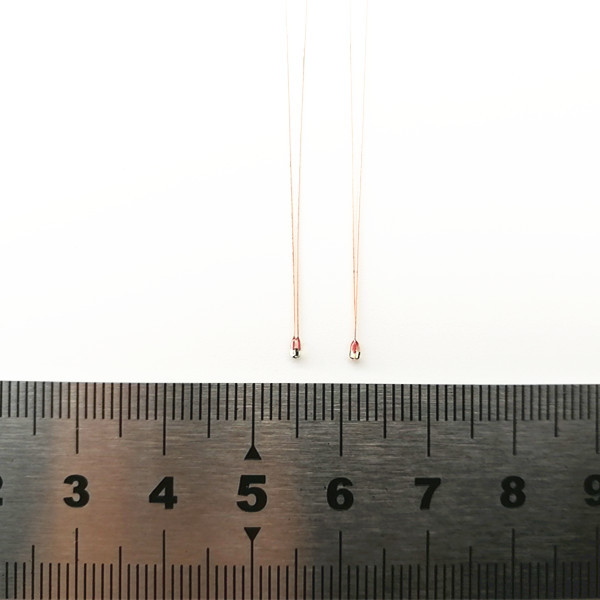

product picture/images:

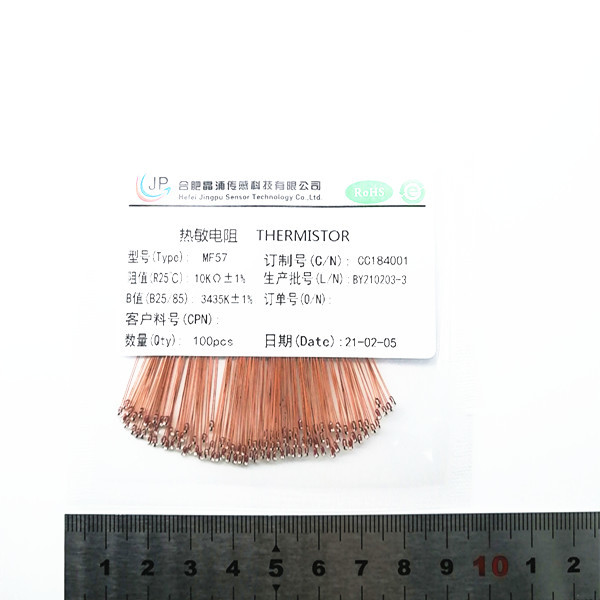

Standard packing (inner packing): 500pcs/polybag
Operation Notice
1.Application:Temperature measure and control；
2.The current flowing through the NTC is controlled within the Pmax range to avoid the measurement error caused by the self-heating of the component.
3.Avoid excessive heat shock,The hot air blow should beat least 30mm to the probe in case heat shrink protection tube need to be attached.
1:MF57 series products for radial lead single-end glass encapsulation type NTC thermistor sensor
2: good stability, high reliability
3: wide range of resistance: 1KΩ~200KΩ
4 resistance and B value high precision
5: glass packaging, can be used in high temperature and high humidity and other harsh environment
6: small volume, strong structure, easy to automate installation
7: use temperature range -40℃~+300℃ 8: rated power :≤25mW 9: fast thermal sensitivity, high sensitivity
