| Place of Origin: | Anhui, China |
|---|---|
| Brand Name: | JP SENSOR |
| Certification: | ISO9001, RoHS |
| Model Number: | MF57 |
| Minimum Order Quantity: | 1000 Pieces |
| Price: | To be Negotiated |
| Packaging Details: | Standard Packing |
| Delivery Time: | 2 Weeks |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 200 Million per Year |
| Resistance Value: | R25=2KΩ±1% | B Value: | B25/50=3470K±1% |
|---|---|---|---|
| Probe: | 1.3mm Glass Encapsulation | Operating Temperature Range: | -40℃~300℃ |
| Chip: | NTC Thermistor | Wire: | Dumet Wire |
| Customization: | Support | ODM/OEM: | Available |
| High Light: | 3950K NTC Glass Bead Thermistor,Glass Bead Thermistor 3950K,Glass Bead Thermistors 3950K |
||

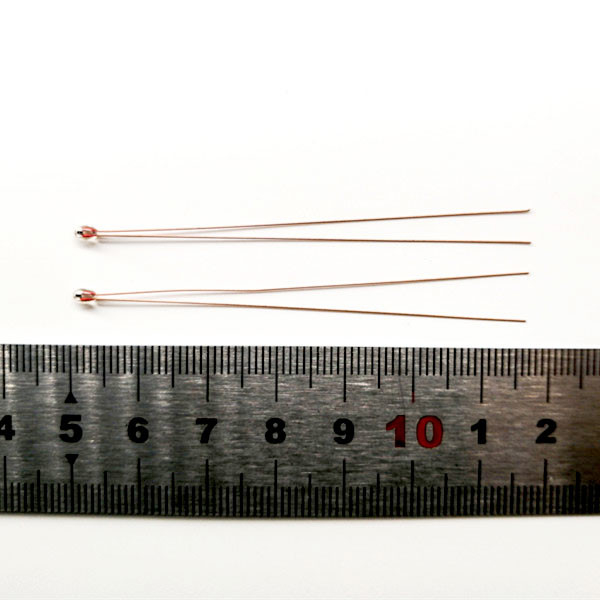

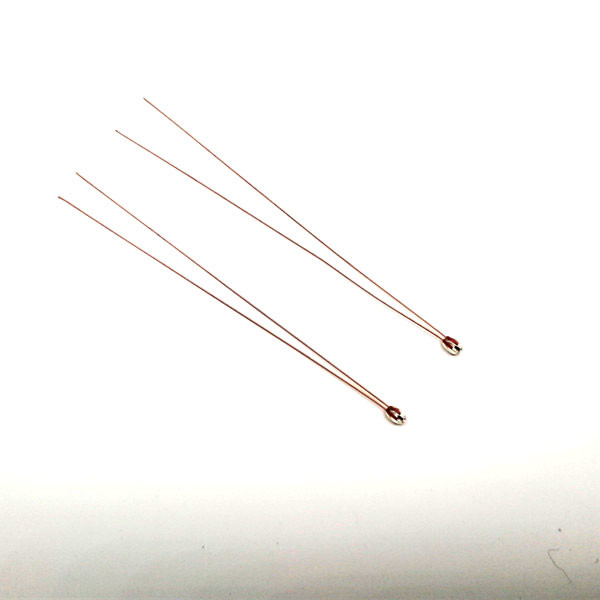

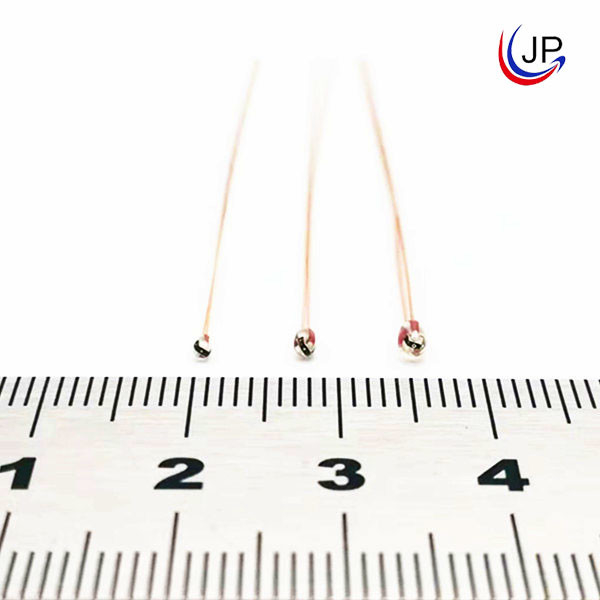

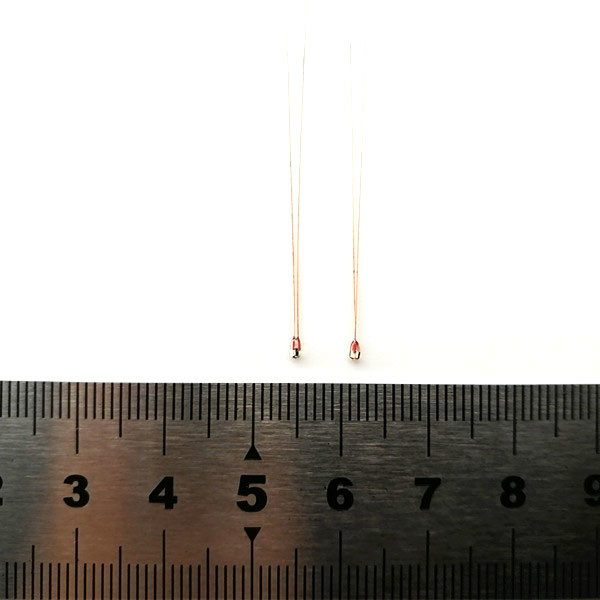

R25 2K B25/85 3470K NTC Glass Bead Thermistor 1.3mm
Brief Introduction:
As one NTC thermistor sensor, glass coating NTC thermistor is made of glass bead, thinner dumet wire. Its feature is high-temperature resistance. Glass coating NTC thermistor is widely applied for automotive electronics, home appliances, industrial devices, etc.
Features:
Glass encapsulation
High temperature resistant
Operating temperature range: -40℃~300℃
R25=2KΩ±1%,B25/50=3470±1%
Glass probe 1.3mm
Application:
Home appliances
Automotive electronics
Industrial devices, and so on.
Part Number Code:
Structure and Dimensions:
Electrical Specification:
| Rec.at 25℃(KΩ) | Beta value | (In air) Pmax(mW) |
δ (mW/℃) |
thermal time constant τ(sec.) | Operating Temperature Range TL-TH(℃) | Total length L(mm) |
| 2 | B25/85=3470 | Approx.20 | Approx.0.75 | Max.10 | -40~300 | 50 |
| 2 | B25/85=3977 | |||||
| 5 | B25/85=3950 | |||||
| 10 | B25/85=3435 | |||||
| 10 | B25/50=3950 | |||||
| 50 | B25/50=3950 | |||||
| 100 | B25/50=3950 | |||||
| 100 | B25/85=4132 | |||||
| 100 | B25/50=4200 |
