| Place of Origin: | Hefei, Anhui, China |
|---|---|
| Brand Name: | Jingpu Brand |
| Certification: | CE,ROHS,ISO9001,ISO13485,UL |
| Model Number: | Mf58 |
| Minimum Order Quantity: | 1000 |
| Price: | USD 0.1-5 /PCS |
| Packaging Details: | Carton packing |
| Delivery Time: | 2-7days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 200 Million per Year |
| Way To Install: | Inserting | Sensing Way: | Resistence |
|---|---|---|---|
| Output Signal Type: | Analog Type | Material: | Ceramics |
| Measuring The Dielectric: | Temperature | IP Code: | IP64 |
| Transport Package: | Carton Packing | Appearance: | Red |
| Warranty: | 2 Years | After-sale Service: | Quality Assurance |
| Chip: | NTC Thermistor | Customization: | Yes |
| Operating Temperature: | Normal Or Low Temperature | Resistence Value: | Custom |
| B Value: | Custom | Shipping: | Shipping, Air, Or Express |
| Wire: | PVC, , Enamel Insulation | Free Sample: | Yes |
| Highlight: | Hair Straightener Ntc Thermistor,Glass Bead Ntc Thermistor,Hair Straightener Glass Bead Thermistor |
||
Customized Ntc Probe Diode Glass Coating Ntc Thermistor For Hair Straightener
Brief Instruction:
MF58 series glass bead temperature sensor,As one NTC thermistor sensor, glass coating NTC thermistor is made of glass bead, thinner dumet wire. Its feature is high temperature resistance. Glass coating NTC thermistor be widely apply for automotic electronic, house appliances, industrial device etc.
Features:
Glass encapsulation
High temperature resistant
Operating temperature range: -40℃~250℃
R25=10KΩ±1%,B25/50=3950±1%
Application:
Home appliance
Part Number Code:
For example: B8103F3435BF: MF58 series NTC thermistor, R25℃=10kΩ±1%, B25/85=3435k±1%;
Structure and Dimensions:

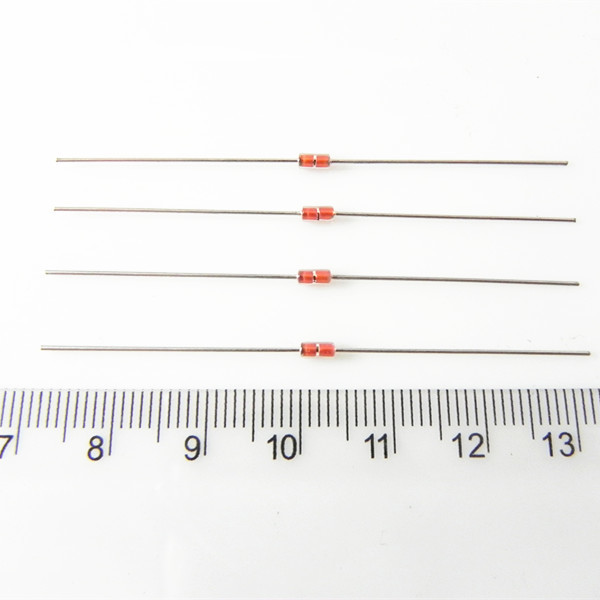

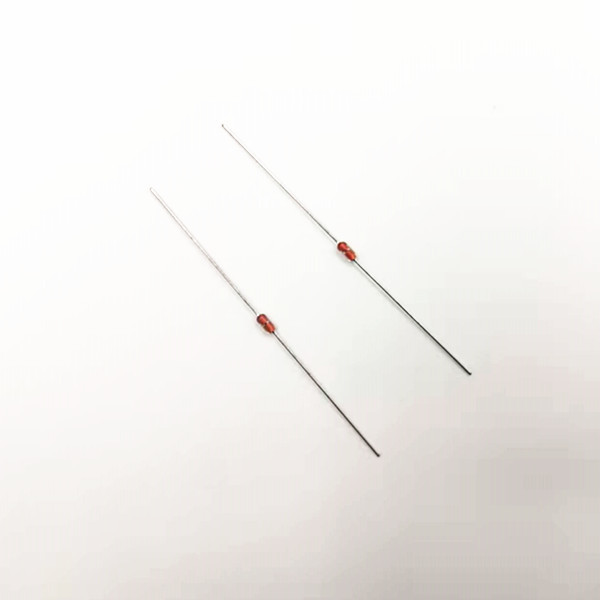

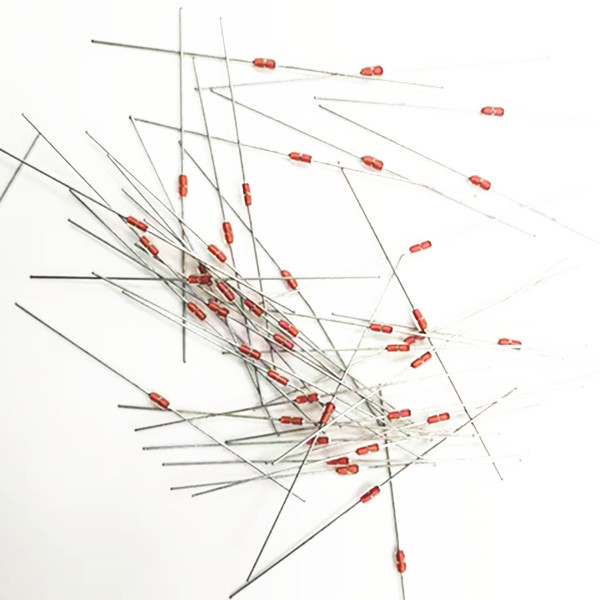

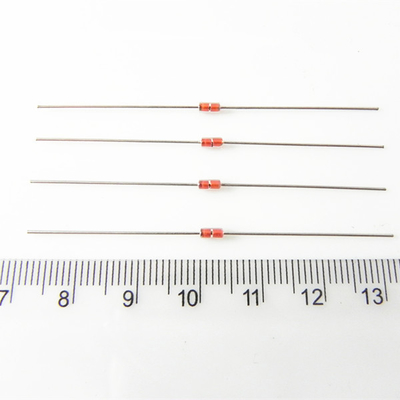

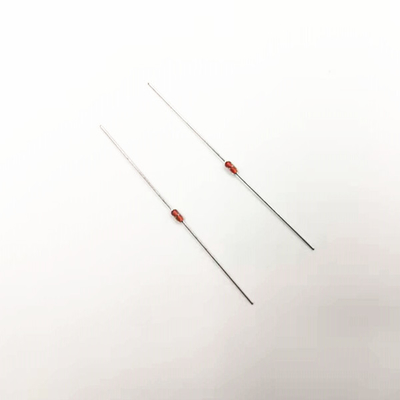

product picture/images:

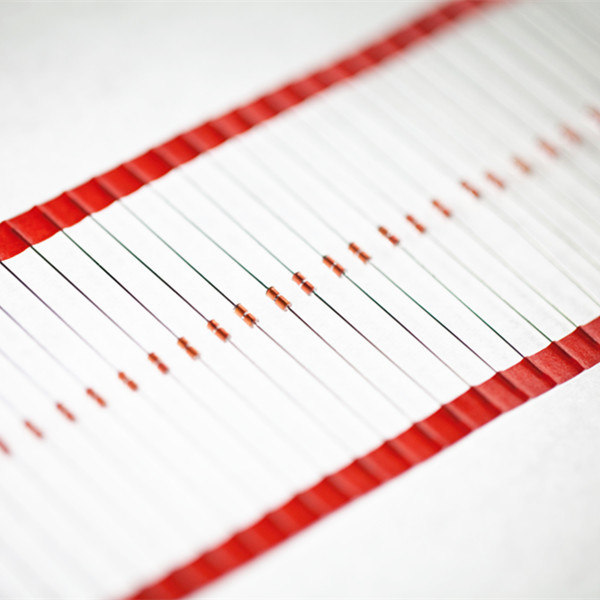

Standard packing (inner packing): 500pcs/polybag
Operation Notice
1. The current flowing through the NTC is controlled within the Pmax range to avoid the measurement error caused by the self-heating of the component.
2. Avoid excessive heat shock,The hot air blow should beat least 30mm to the probe in case heat shrink protection tube need to be attached.
Special Note
Due to the product specifications and models, wire, wire length, B value and precision are different, the price will be different. So all the buyers in the auction before please contact the shop, all the actual offer shall prevail, thank you for your cooperation!
Welcome buyers to come to consult, we can customize the appropriate sensor NTC for you according to your needs.
