| Place of Origin: | Anhui, China |
|---|---|
| Brand Name: | JP SENSOR |
| Certification: | CE, ISO13485, ISO9001, RoHS |
| Model Number: | MF58 |
| Minimum Order Quantity: | 1000 Pieces |
| Price: | To be negotiated |
| Packaging Details: | Standard Packing |
| Delivery Time: | 2 Weeks |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 200 Million per Year |
| Product Name: | Diode Temperature Sensor | Feature: | Glass Encapsulation High Temperature Resistant |
|---|---|---|---|
| Operating Temperature Range: | -40℃~250℃ | Resistance: | 10kΩ±1% |
| B Value: | B25/85=3435k±1% | Warranty: | 2 Years |
| OEM/ODM: | Available | Customization: | Available |
| High Light: | Diode Glass Bead Thermistor,NTC Glass Bead Thermistor,Home Appliance ntc thermistor probe |
||
NTC Diode Glass Bead Thermistor For Home Appliance Automotive Electronics
Brief Introduction:

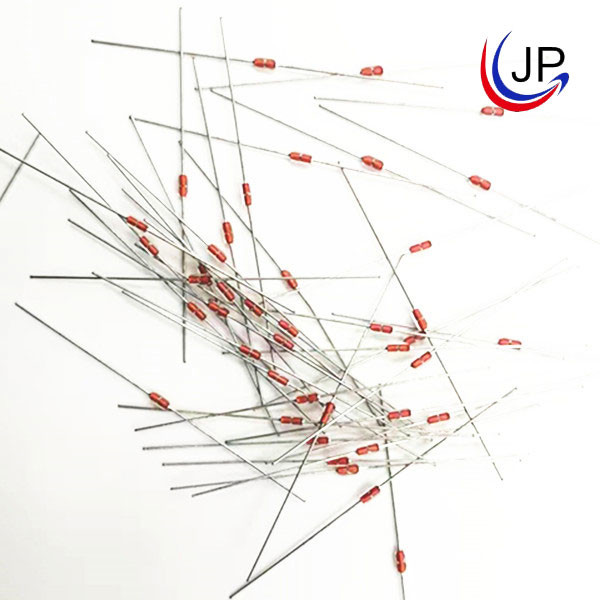

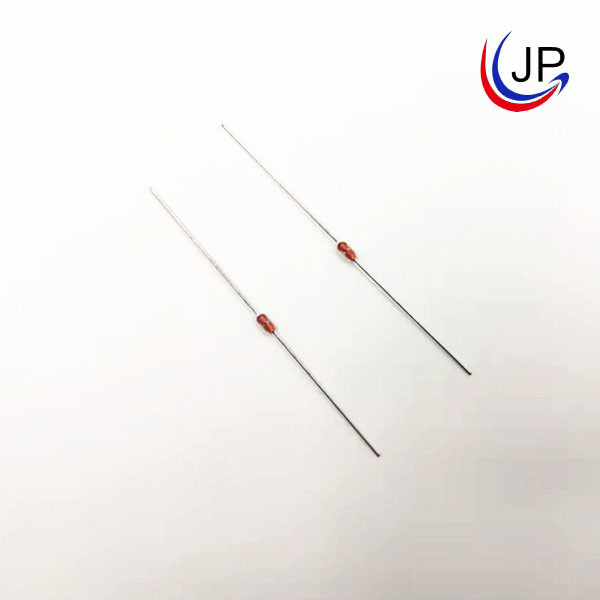

MF58 series glass bead temperature sensor, As one NTC thermistor sensor, glass coating NTC thermistor is made of glass bead, thinner dumet wire. Its feature is high-temperature resistance. Glass coating NTC thermistor is widely applied for automotive electronics, house appliances, industrial devices, etc.
Features:
Glass encapsulation
High temperature resistant
Operating temperature range: -40℃~250℃
Application:
Home appliance
Automotive electronic
Industrial device etc
Part Number Code:
For example: B8103F3435BF: MF58 series NTC thermistor, R25℃=10kΩ±1%, B25/85=3435k±1%

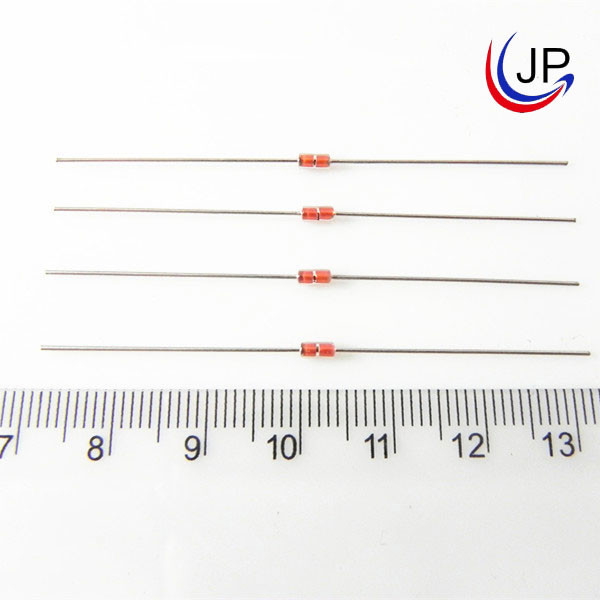

Structure and Dimensions:
| NO. | Name | Material Specification | QTY. | Remarks |
| 1 | Chip | NTC Chip | 1 | / |
| 2 | Encapsulation | Glass | 1 | / |
| 3 | Wire | Cu/Sn Cable | 2 | / |

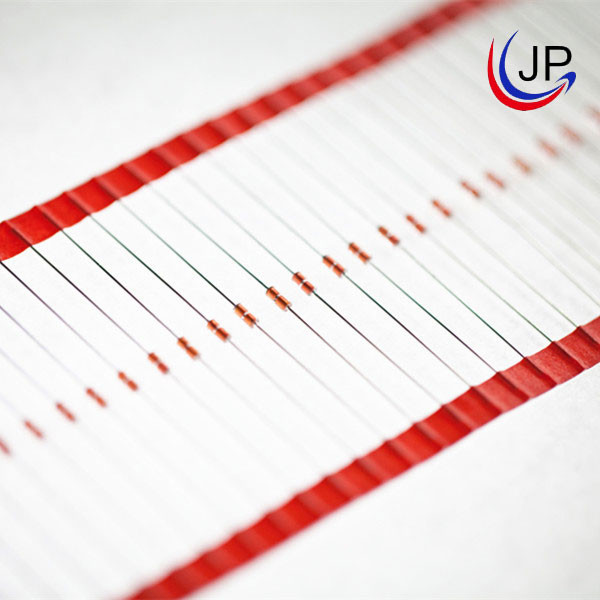

Standard packing (inner packing): 500pcs/polybag
Electrical Specification:
| Product Specification | Rec.at 25℃(KΩ) | Beta value | (In air) Pmax(mW) |
δ (mW/℃) |
Thermal time constant τ(sec.) | Operating Temperature Range TL-TH(℃) | Total length L(mm) |
| B8202□3470A | 2 | B25/85=3470 | Approx.20 | Approx.1.0 | Max.15 | -40~250 | 60 |
| B8202□3830A | 2 | B25/85=3977 | |||||
| B8103□3470A | 5 | B25/50=3470 | |||||
| B8502□3950A | 5 | B25/85=3950 | |||||
| B8103□3435B | 10 | B25/85=3435 | |||||
| B8103□3470A | 10 | B25/50=3470 | |||||
| B8103□3580A | 10 | B25/50=3580 | |||||
| B8103□3630B | 10 | B25/50=3950 | |||||
| B8103□3950A | 10 | B25/50=3950 | |||||
| B8103□3977B | 10 | B25/50=3950 | |||||
| B8503□3950A | 50 | B25/50=3950 | |||||
| B8104□3950A | 100 | B25/50=3950 | |||||
| B8104□3990A | 100 | B25/50=3990 | |||||
| B8104□4132B | 100 | B25/85=4132 | |||||
| B8104□4200A | 100 | B25/50=4200 | |||||
| B8200R102□4537G | R200℃=1 | B100/200=4537 |
Operation Notice:
1. The current flowing through the NTC is controlled within the Pmax range to avoid the measurement error caused by the self-heating of the component.
2. Avoid excessive heat shock, The hot air blow should be at least 30mm to the probe in case a heat-shrink protection tube needs to be attached.
