| Place of Origin: | Hefei, Anhui province, China |
|---|---|
| Certification: | ROHS |
| Model Number: | MFP |
| Minimum Order Quantity: | 2000pcs |
| Price: | USD1.2/pc |
| Packaging Details: | standard export packing |
| Delivery Time: | 20-25days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 2000pcs/month |
| Rohs Compliant: | Yes | Operating Temperature Range: | -40 To 125°C |
|---|---|---|---|
| Supply Current: | 0.5 MA | Resistance Range: | 0.3kΩ To 2000kΩ |
| Wire: | XLPE UL4484 26AWG 7/0.16TS OD1.05*2.2 | Material: | Ceramic |
| Housing: | Ring Lug M2/M4/M6/M8 | Mounting Type: | Surface Mount |
| Encapsulation: | Epoxy Resin Encapsulated | Optical Resolution: | 20:1 |
| Output Type: | Analog | Head Material: | Cu, Cu/ Sn, Cu/ Ni, Nylon...Tube |
| Supply Voltage: | 2.7 To 5.5 V | Power Consumption: | 1.5mW |
| Insulation Resistance: | ≥100MΩ 500VDC |
NTC Thermistor-Probe Assembly with Ring Lug
Product description
NTC Thermistor-Probe Assemblies for temperature sensing and measurement.
Our NTC thermistor probe assemblies are manufactured from a specially formulated metal oxide ceramic material that is extremelly accurate in sensing temperature. Available in a variety of housings with custom design capabilities, PANR probe assemblies are suited best for transformers, electric motors, air sensors, and HVAC systems.
Product Features
• Ring lug terminals enable easy and secure surface mounting
• Completely customizable; offer a variety of housings and lead wire gauges
• Fast response times
• Provide a high-stability replacement for PT100 thermocouples; experience minimal drift from their initial electrical values
Drawing&Dimensions
• Isolation voltage to 2.2kV
• Resistance at 25℃ from 10kΩ to 250kΩ
• Beta value from 3,000K to 4,500K
• Dissipation constant of 3 mW/℃
• Thermal time constant of 40.0 s
• Max. power of 125mW
• Mounting hold diameter of 3.7mm or 4.4mm

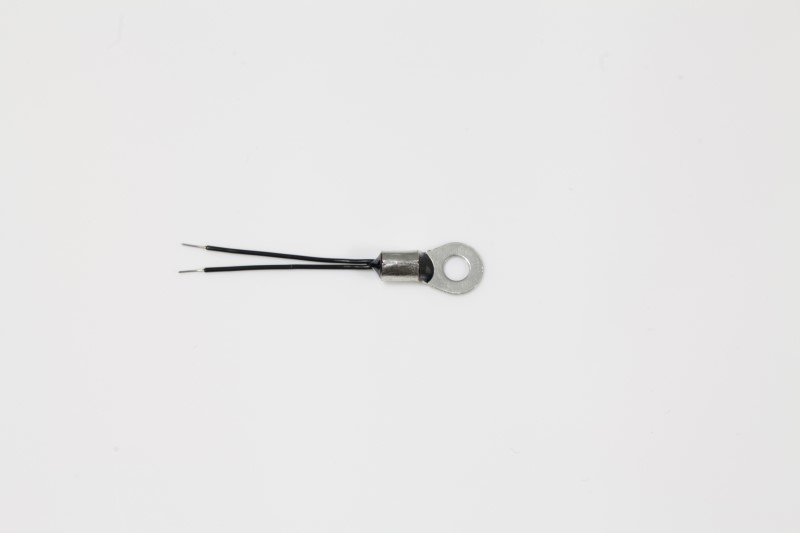

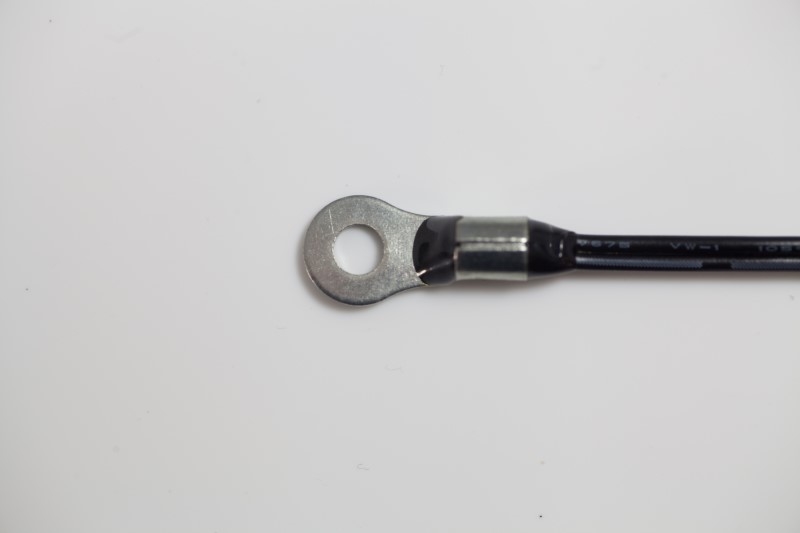

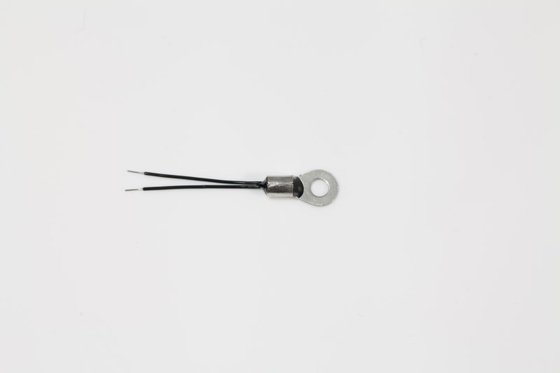

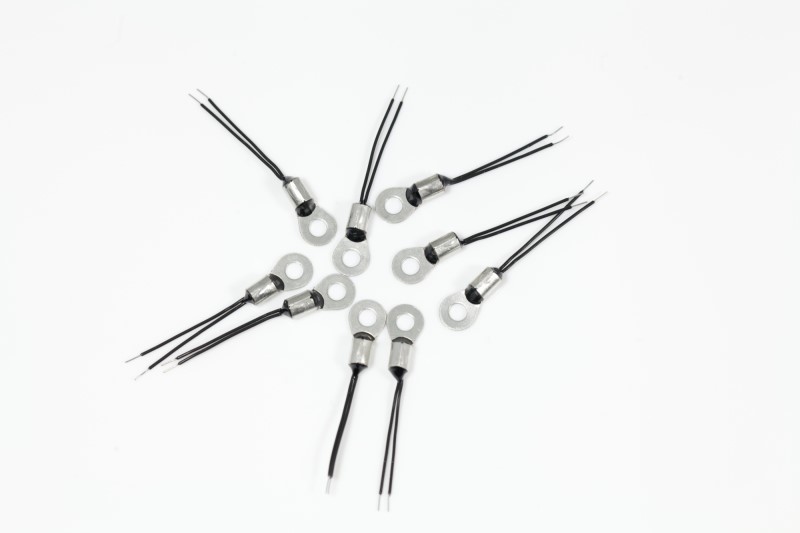

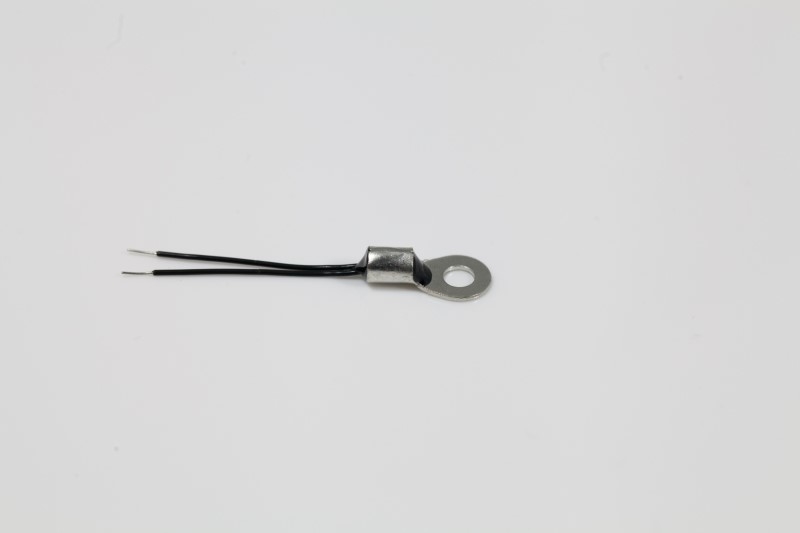

Product image
