| Place of Origin: | Anhui, China |
|---|---|
| Brand Name: | JINGPU SENSOR |
| Certification: | ISO9001, RoHS |
| Model Number: | MFP-2A |
| Minimum Order Quantity: | 500 Pieces |
| Price: | Negotiable |
| Packaging Details: | Standard Packaging |
| Delivery Time: | 2 Weeks |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 200 Million per Year |
| Resistance Range: | 0.3kΩ To 2000kΩ | B Value: | B25/50=3950k |
|---|---|---|---|
| Operating Temperature Range: | Operating Temperature Range | Resistance: | R25℃=10kΩ |
| Application: | Welding Machine | ||
| High Light: | ISO9001 jingpu Cable NTC Temperature Sensor,ISO9001 jingpu Epoxy Resin NTC Temperature Sensor,ISO9001 jingpu 0.3k ntc type temperature sensor |
||

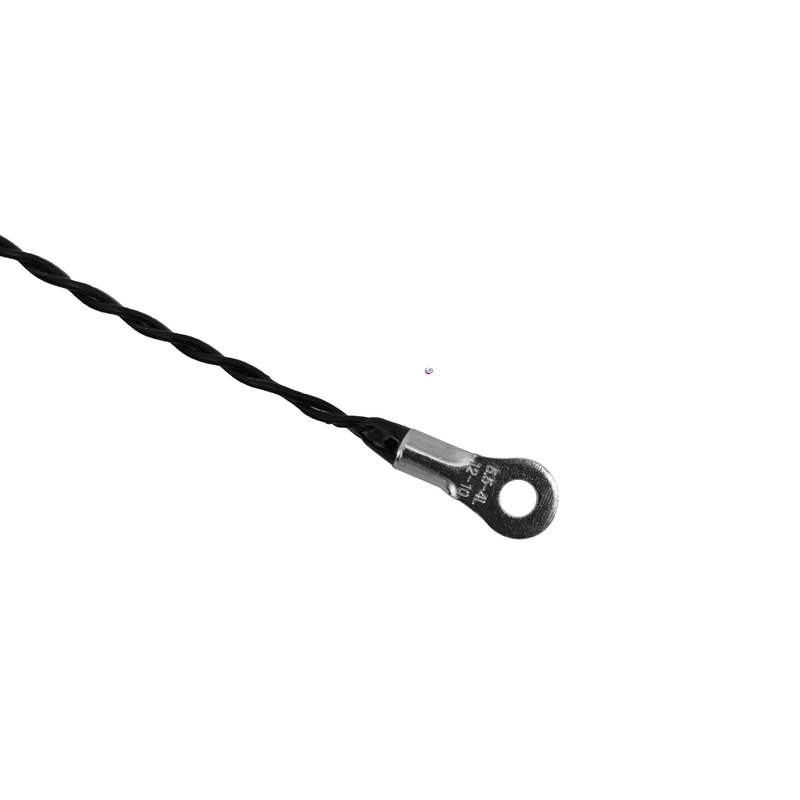

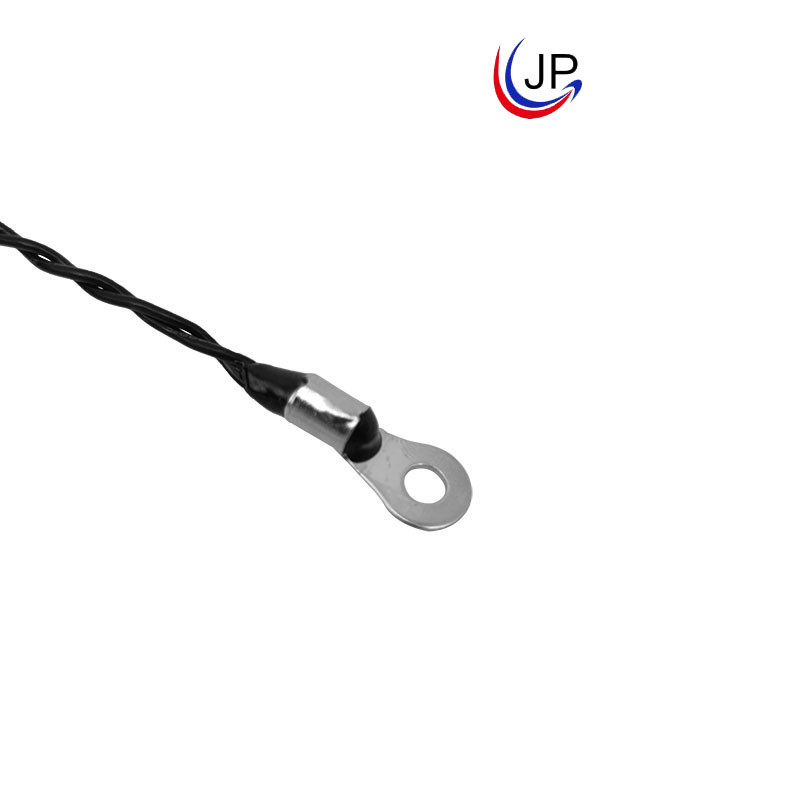

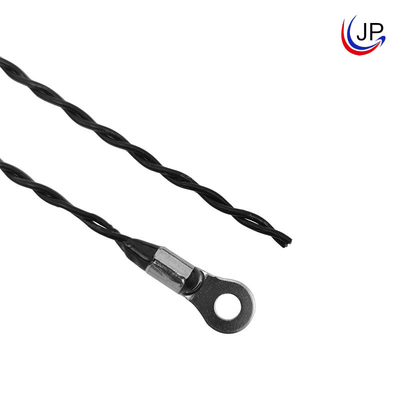

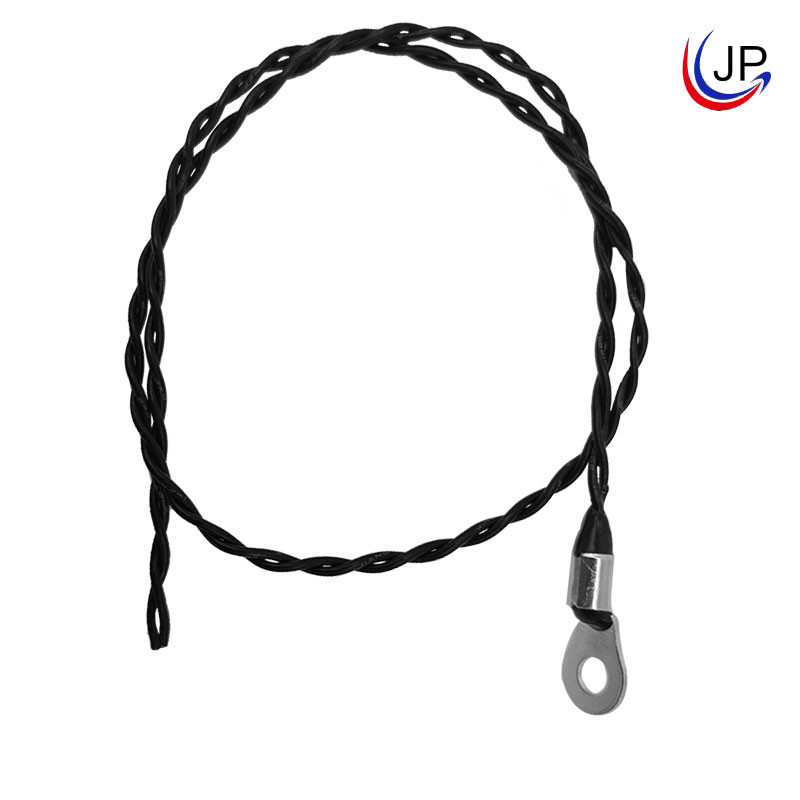

Cable Epoxy Resin NTC Temperature Sensor Ring Lug For Welding Machine
Product Description:
Ring lugM4, The optional resistance value range is 0.3kΩ to 2000kΩ, and the beta value range is 2500K to 4500K.
Features:
Comply with RoHS standard
Interchangeability
surface mount temperature measurement
PVC insulated lead wires series Operating temperature range: -40℃~125℃
Sensing element electrically isolated from tag
R25℃=10kΩ
B25/50=3950k
Application:
Welding Machine
Structure and Dimensions:
Electrical Specification:
| Rec. at 25℃(kΩ) | Beta value | (In air) Pmax(mW) | δ(mW/℃) | Thermal time constant τ(sec.) | Operating Temperature Range TL-TH(℃) | Total length L(mm) |
| 1 | B25/85=3435 | Approx.60 | / | / | -20℃~105℃(PVC wire)& -40℃~125℃( or XLPE wire) | 100~5000 |
| 1.5 | B25/50=3850 | |||||
| 1.5 | B25/50=3935 | |||||
| 2 | B25/85=3550 | |||||
| 2 | B25/85=3935 | |||||
| 2.08 | B25/85=3580 | |||||
| 2.2 | B25/50=3935 | |||||
| 3 | B25/50=3950 | |||||
| 5 | B25/50=3470 | |||||
| 5 | B25/50=3950 | |||||
| 8 | B25/100=3988 | |||||
| 10 | B25/85=3435 | |||||
| 10 | B25/50=3470 | |||||
| 10 | B25/50=3935 | |||||
| 10 | B25/50=3950 | |||||
| 20 | B25/50=3950 | |||||
| 47 | B25/50=3950 | |||||
| 50 | B25/50=3950 | |||||
| 50 | B25/50=4200 | |||||
| 100 | B25/50=4200 | |||||
| 200 | B25/50=4200 | |||||
| 500 | B25/50=4450 | |||||
| 1000 | B25/85=4600 |
