| Place of Origin: | Anhui, China |
|---|---|
| Brand Name: | JP SENSOR |
| Certification: | ISO9001 |
| Model Number: | MFP-2A |
| Minimum Order Quantity: | 500 Pieces |
| Price: | Negotiable |
| Packaging Details: | Standard Packing |
| Delivery Time: | 2 Weeks |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 200 Million per Year |
| R25: | 10KΩ | B25/85: | 3435k |
|---|---|---|---|
| Operating Temperature Range: | -40℃~150℃（UL4413 22AWG） | Application: | EV/HEV Bus Bars, Battery Covers, Power Distribution |
| OEM/ODM: | Available | Customization: | Available |
| Shipping: | Air Freight, Sea Freight, Express | ||
| High Light: | ISO9001 jingpu Surface Mount ntc 10k ohm temperature sensor,ISO9001 jingpu EV Battery ntc 10k ohm temperature sensor,ISO9001 jingpu 3435 thermistor |
||

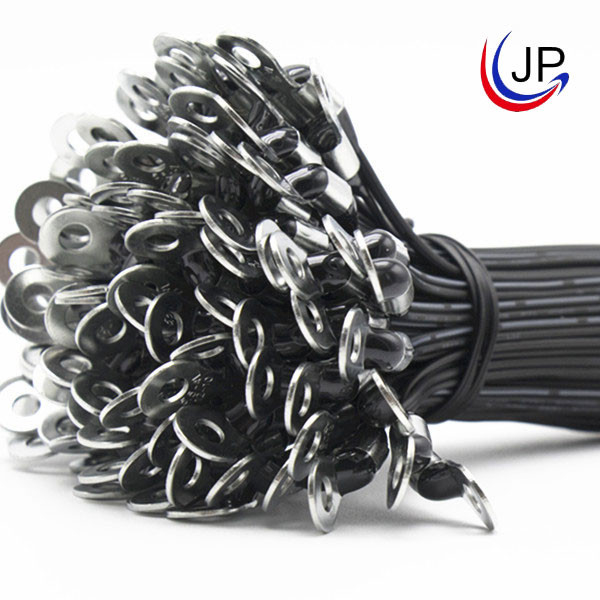

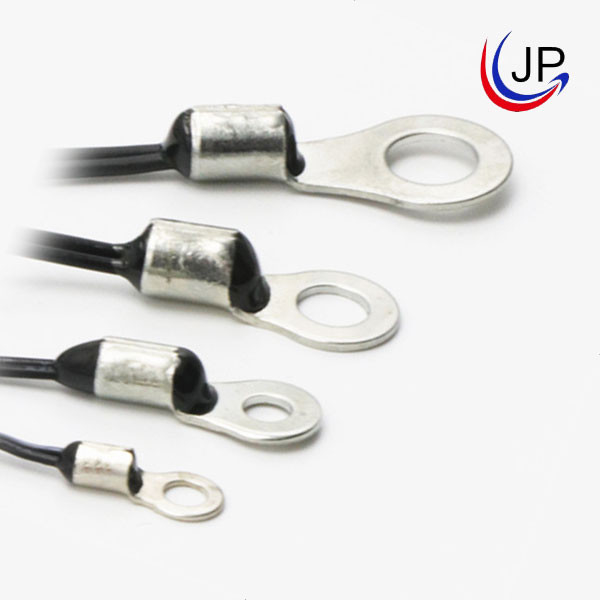

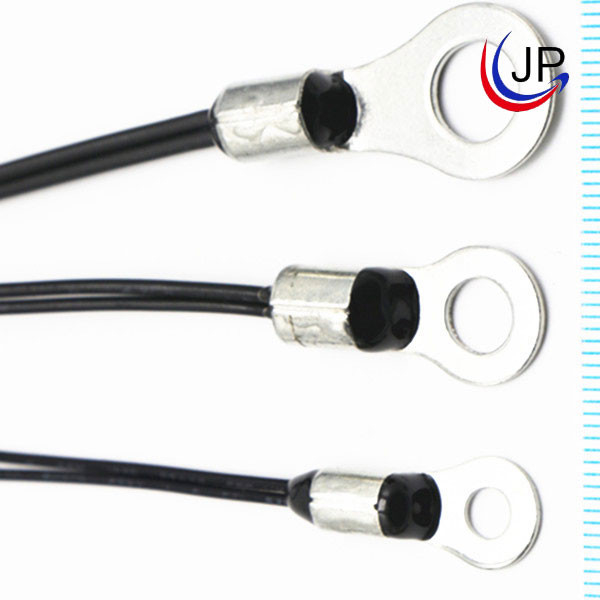

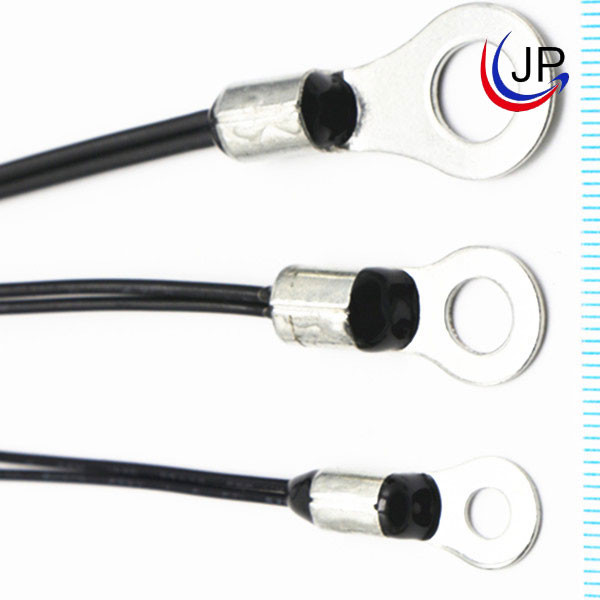

EV Battery Surface Mount NTC 10k Ohm Temperature Sensor NTC Chip Ring Lug
Product Description:
The item is an EV battery temperature sensor. It’s suitable for surface temperature measurement. Typical applications include battery control systems in EV cars. EV battery temperature sensor consists of an NTC chip thermistor mounted in an eyelet tag (ring lug), with insulated flexible wire (XLPE insulated wire UL4411 125℃ & UL4413 150℃)and terminals. One standard resistance value and beta value: R25℃= 10kΩ and B25/85=3435k.
Features:
Comply with RoHS standard
Operating temperature range: -40℃~125℃(UL4411 22AWG)
Operating temperature range: -40℃~150℃(UL4413 22AWG)
Good and long-term stability
Sensing element electrically isolated from tag
Eyelets to fit M3, M4/M5 screw sizes
Application:
EV/HEV Bus Bars
Battery Covers
Power Distribution
Structure and Dimensions:
| 1 | Chip | NTC Chip | 1 | / |
| 2 | Encapsulation | Epoxy resin | 1 | / |
| 3 | Cable | UL4411 22AWG | 2 | / |
| 4 | Ring Lug | Cu/Sn RNB8-6 or Cu/Sn RNB8-8 | 1 | / |
Electrical Specification:
| Rec. at 25℃(kΩ) | Beta value |
(In air) Pmax(mW) |
δ(mW/℃) | Thermal time constant τ(sec.) | Operating Temperature Range TL-TH(℃) | Total length L(mm) |
| 1 | B25/85=3435 | Approx.60 | / | / | -20℃~105℃(PVC wire)& -40℃~125℃( or XLPE wire) | 100~5000 |
| 1.5 | B25/50=3850 | |||||
| 1.5 | B25/50=3935 | |||||
| 2 | B25/85=3550 | |||||
| 2 | B25/85=3935 | |||||
| 2.08 | B25/85=3580 | |||||
| 2.2 | B25/50=3935 | |||||
| 3 | B25/50=3950 | |||||
| 5 | B25/50=3470 | |||||
| 5 | B25/50=3950 | |||||
| 8 | B25/100=3988 | |||||
| 10 | B25/85=3435 | |||||
| 10 | B25/50=3470 | |||||
| 10 | B25/50=3935 | |||||
| 10 | B25/50=3950 | |||||
| 20 | B25/50=3950 | |||||
| 47 | B25/50=3950 | |||||
| 50 | B25/50=3950 | |||||
| 50 | B25/50=4200 | |||||
| 100 | B25/50=4200 | |||||
| 200 | B25/50=4200 | |||||
| 500 | B25/50=4450 | |||||
| 1000 | B25/85=4600 |
