| Place of Origin: | Anhui, China |
|---|---|
| Brand Name: | JINGPU SENSOR |
| Certification: | ISO9001, RoHS |
| Model Number: | MFP |
| Minimum Order Quantity: | 500 Pieces |
| Price: | Negotiable |
| Packaging Details: | Standard Packing |
| Delivery Time: | 2 Weeks |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 200 Million per Year |
| Probe: | ABS Probe | Wire: | Wire |
|---|---|---|---|
| Operating Temperature Range: | -20℃~80℃ | Feature: | Withstand AC 5000V High-voltage Insulation |
| Customization: | Available | ODM/OEM: | Available |
| High Light: | ISO9001 jingpu Surface Mount ntc thermistor temperature sensor,ISO9001 jingpu ISO9001 ntc thermistor temperature sensor,ISO9001 jingpu ISO9001 ntc thermistor temperature sensors |
||

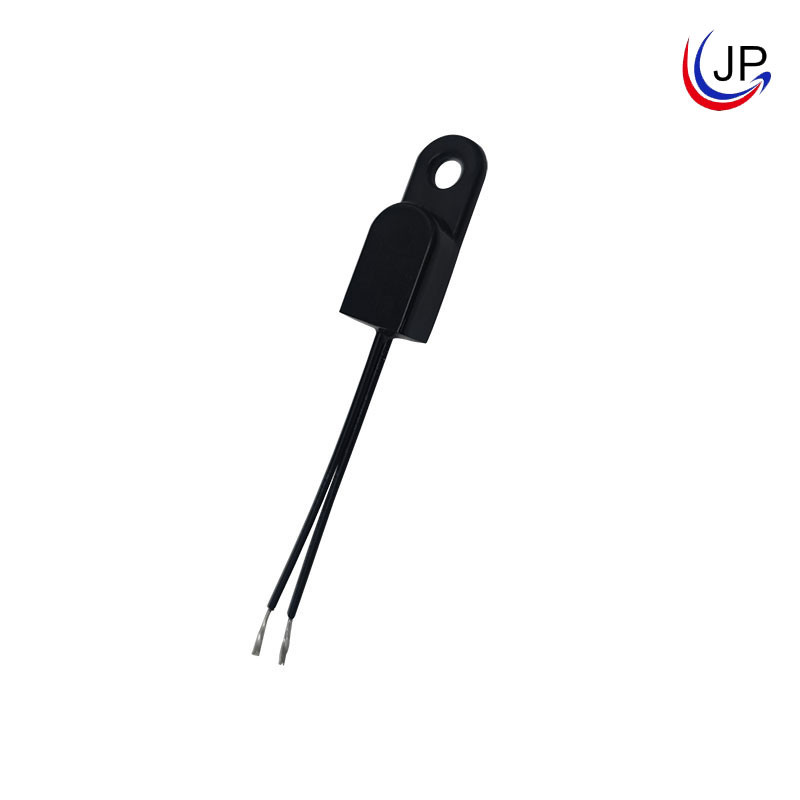

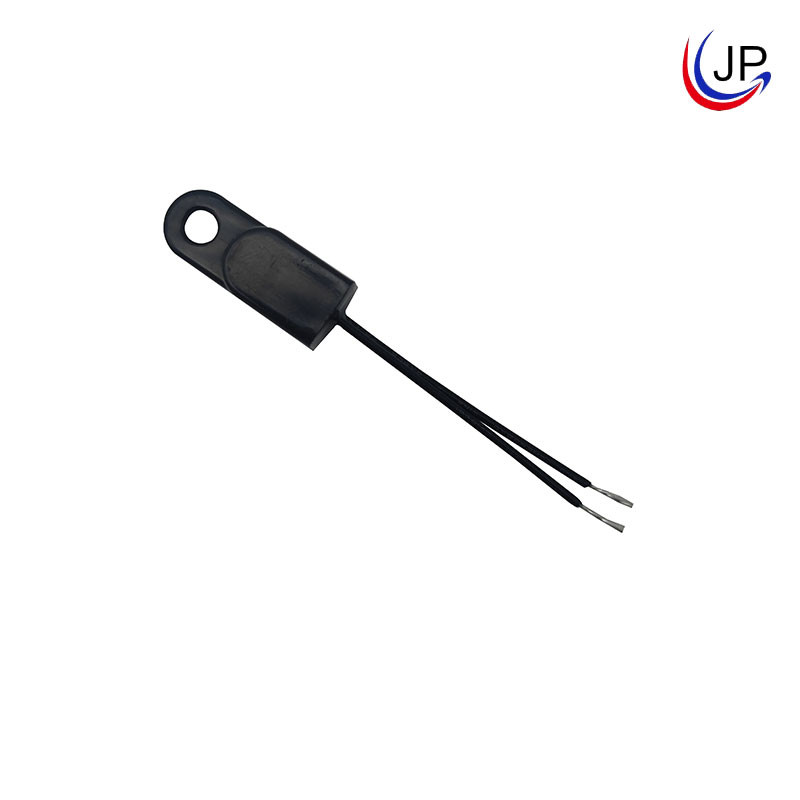

Surface Mount NTC Thermistor Temperature Sensor High Voltage Resistant
Product Description:
High voltage resistant surface mount NTC temperature sensor is widely used in electrical cabinets such as substation cabinets and high-voltage cabinets and can withstand AC 5000V high-voltage insulation.
Features:
Comply with RoHS standard
PVC insulated lead wires series Operating temperature range: -20℃~80℃
Simply assembly
high voltage resistant
Application:
Substation cabinets
High-voltage cabinets
electrical cabinets
Structure and Dimensions:
Electrical Specification:
| Rec. at 25℃(kΩ)+A2:G25+A2:G25 | Beta value | (In air) Pmax(mW) | δ(mW/℃) | Thermal time constant τ(sec.) | Operating Temperature Range TL-TH(℃) | Total length L(mm) |
| 1 | B25/85=3435 | Approx.60 | / | / | -40℃~125℃ | 100~5000 |
| 1.5 | B25/50=3850 | |||||
| 1.5 | B25/50=3935 | |||||
| 2 | B25/85=3550 | |||||
| 2 | B25/85=3935 | |||||
| 2.08 | B25/85=3580 | |||||
| 2.2 | B25/50=3935 | |||||
| 3 | B25/50=3950 | |||||
| 5 | B25/50=3470 | |||||
| 5 | B25/50=3950 | |||||
| 8 | B25/100=3988 | |||||
| 10 | B25/85=3435 | |||||
| 10 | B25/50=3470 | |||||
| 10 | B25/50=3935 | |||||
| 10 | B25/50=3950 | |||||
| 20 | B25/50=3950 | |||||
| 47 | B25/50=3950 | |||||
| 50 | B25/50=3950 | |||||
| 50 | B25/50=4200 | |||||
| 100 | B25/50=4200 | |||||
| 200 | B25/50=4200 | |||||
| 500 | B25/50=4450 | |||||
| 1000 | B25/85=4600 |
