| Place of Origin: | Anhui, China |
|---|---|
| Brand Name: | JP SENSOR |
| Certification: | ISO13485, ISO9001, RoHS |
| Model Number: | MFP-2A |
| Minimum Order Quantity: | 500 Pieces |
| Price: | To be negotiated |
| Packaging Details: | Standard Packaging |
| Delivery Time: | 1-2 Weeks |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 200 Million per Year |
| Resistance: | R25=10KΩ | Beta Value: | B25/85=3975k |
|---|---|---|---|
| Accuracy: | ±2% | Shipping: | Sea Freight, Express, Air Freight |
| Wire: | PVC, PTFE, Silicon Latex Fiberglass | Lead Wire: | Tinned |
| OEM/ODM: | Available | Operating Temperature Range: | -20~105ºC/-40~200ºC |
| High Light: | 10K NTC Surface Mount Temperature Sensor,ODM Surface Mount Temperature Sensor,Tinned Surface Mount Temperature Sensor |
||
High Accuracy Surface Mount Temperature Sensor 10K NTC Thermistor
Product Description:

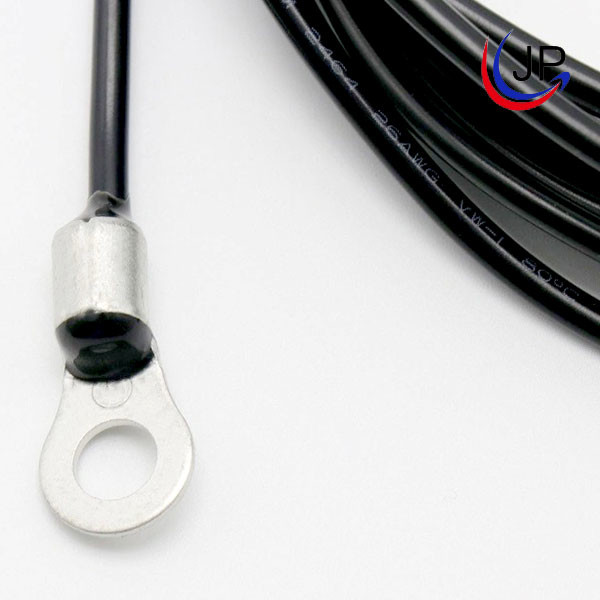

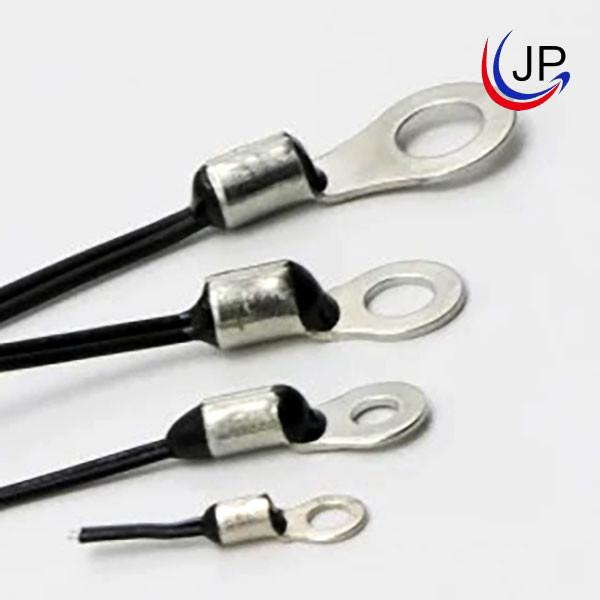

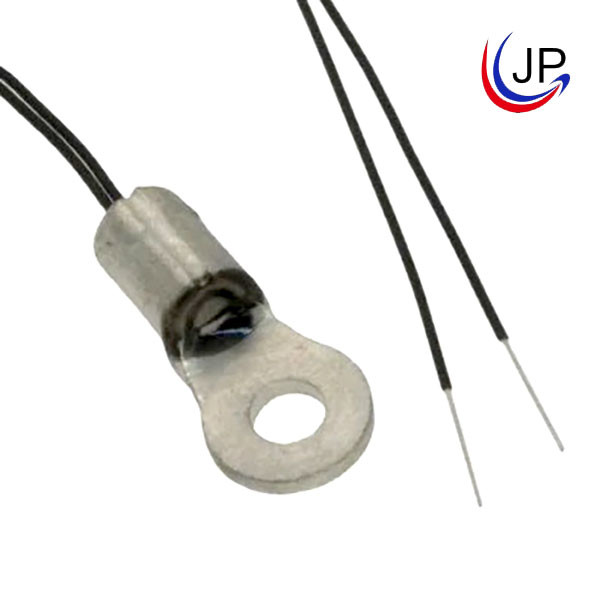

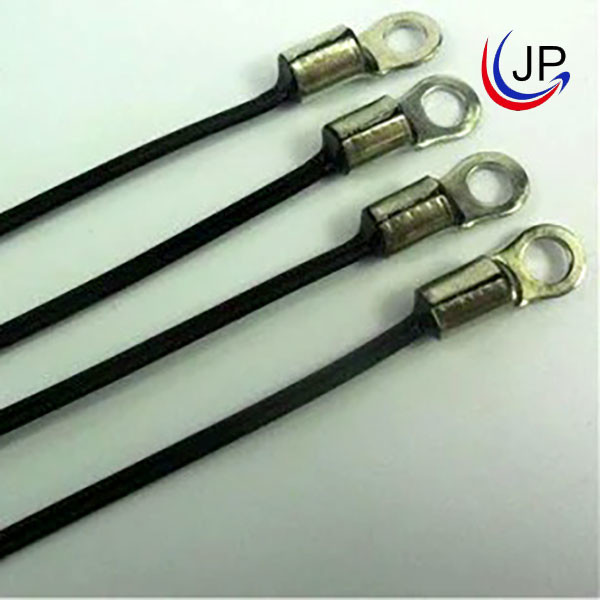

High Accuracy Surface Mount Temperature Sensor 10K NTC Thermistor consists of NTC thermistor, O ring lug temperature probe, electric wire, and connector.
Characteristic:
The characteristic of Surface Mount Temperature Sensor 10K NTC Thermistor is R25℃=10 Kohm, Beta value=3975K. The wire is FEP - swg 24/7/32, wire length - 150mm. The terminal lug is tin-plated brass with M3 hole.
Technical Specification:
| Product name | 10K Thermistor NTC with LUG terminal |
| Resistance value | 5-10 KΩ |
| Lead wire insulation | PVC, PTFE, Silicon latex Fiberglass |
| Measuring Range | -20~105ºC/-40~200ºC/ |
| resistance tolerance | ±2% |
| B value | 25/85=3975K |
Application:
It is widely used for the wall-hanging stove;
For solar water heater;
For air conditioners;
For refrigerator;
For HVAC system
Structure and Dimension (Unit: mm):
FAQ:
1. What is your MOQ?
Different type of our product has different MOQs, but we will provide you with the best MOQ according to your specific order.
2. Could you please send me free samples?
Of course, samples are available and free except for the express fee. Express like DHL, FedEx, SF express, UPS, EMS, etc are available. You can provide your express account or ask your courier to pick up the product you ordered.
3. What is your delivery time?
The delivery time is about 2-7days after receipt of payment. (Different types of products have different crafts, the exact time shall be consulted in advance.)
4. What is the payment method?
T/T, L/C, Western Union.
5. Can you accept OEM&ODM orders?
OEM/ODM is available from us. We accept all types of OEM&ODM orders and cooperations.
