| Place of Origin: | Anhui, China |
|---|---|
| Brand Name: | Jingpu Sensor |
| Certification: | ISO13485, ISO9001, RoHS |
| Model Number: | MFT |
| Minimum Order Quantity: | 1000PCS |
| Price: | USD 3.5-4.2 Per Piece |
| Packaging Details: | Carton |
| Delivery Time: | 2-5Weeks |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 200K per month |
| Type: | PT100 Temperature Sensor | Class: | Class B |
|---|---|---|---|
| Encapsulation: | Epoxy Resin | Probe: | SUS304 φ4.5*40 |
| Length: | 1500±25mm | Resistance: | R0℃=100Ω |

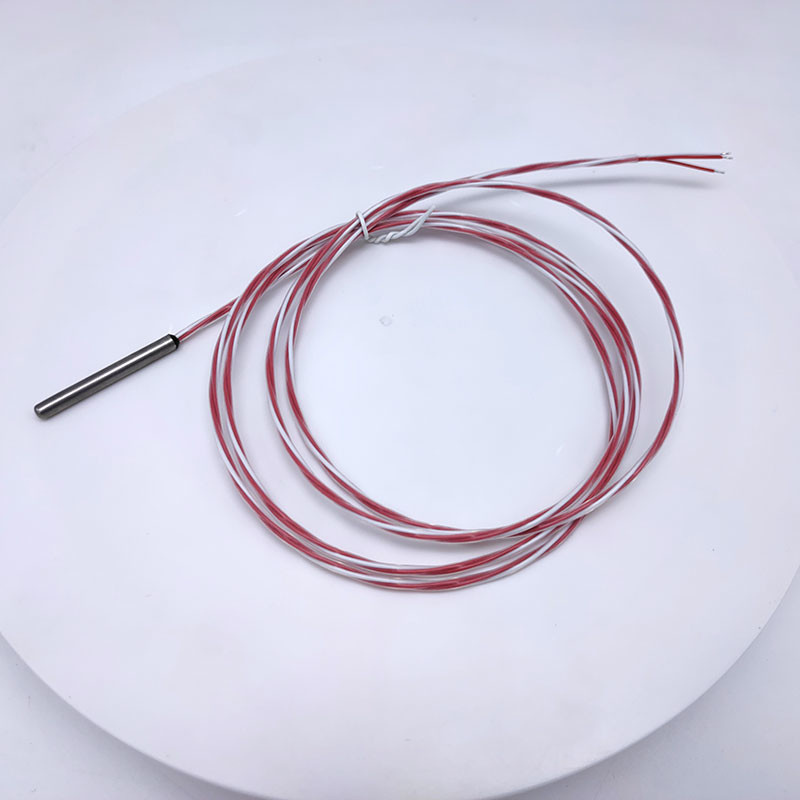

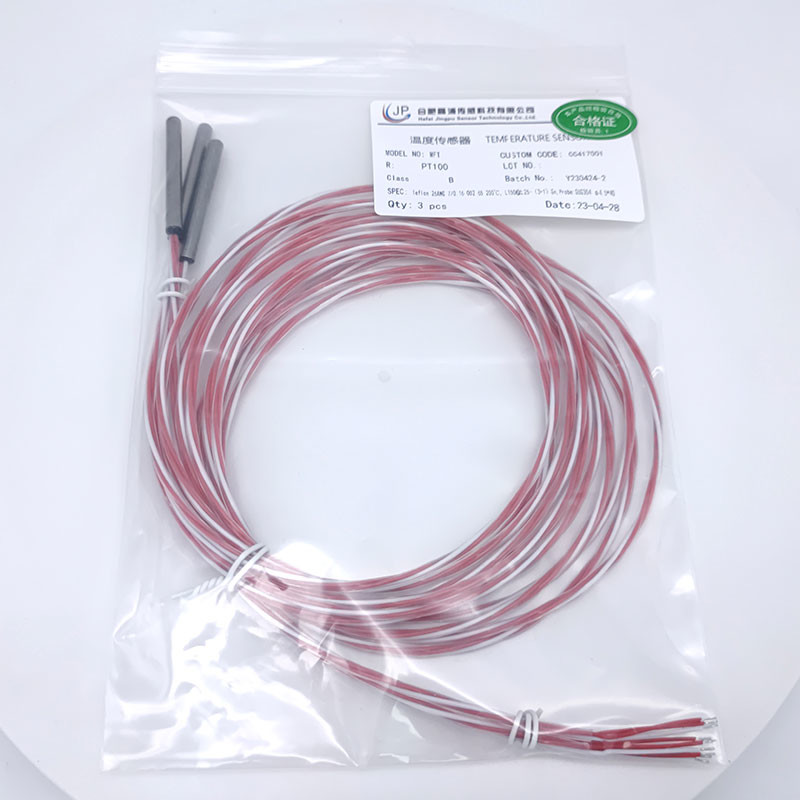

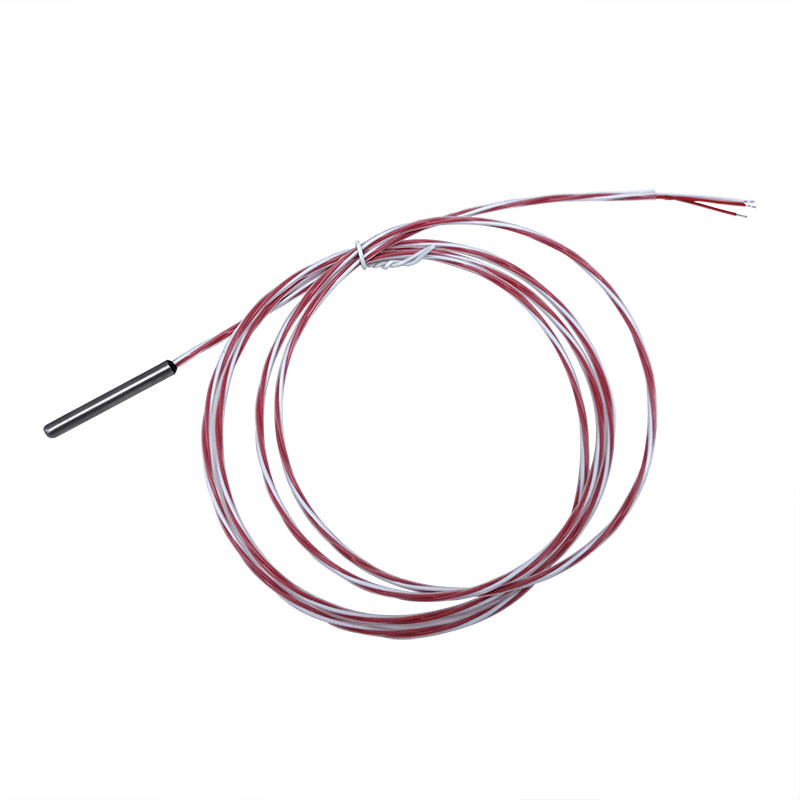

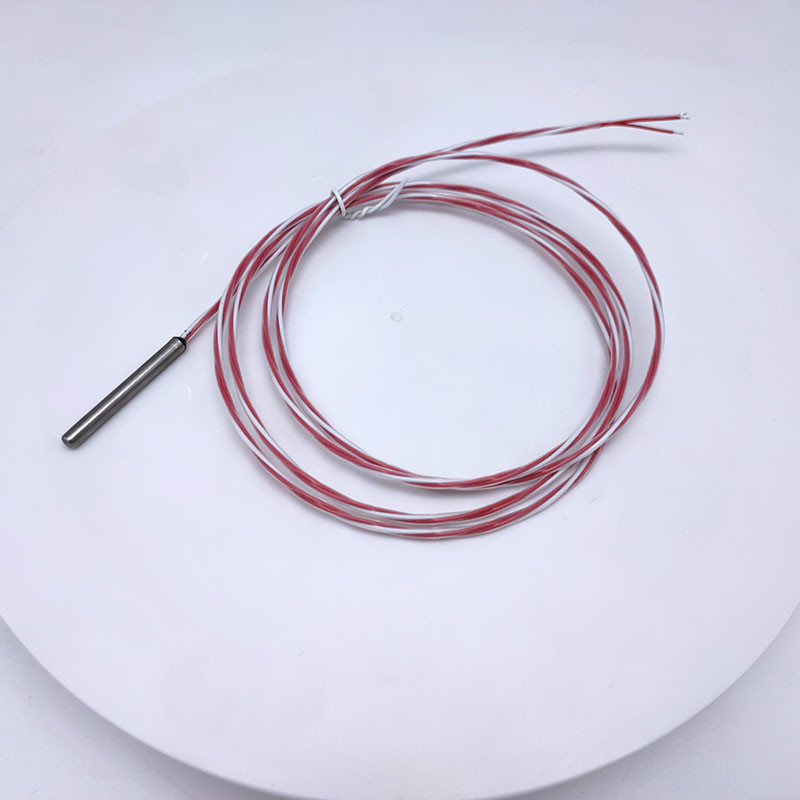

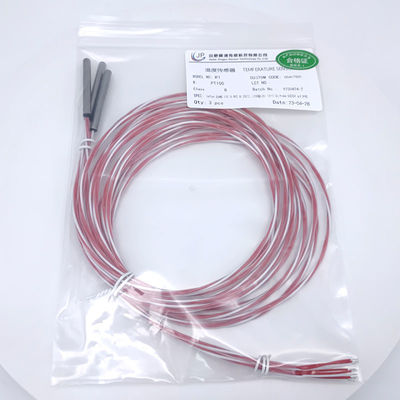

PT100 Class B Temperature Sensor for Solar Heating System
Product Description:
PT100 Class B Temperature Sensor for Solar Heating System is a kind of temperature sensor which is called PT100. The resistance of this sensor is 100Ω when the temperature is 0℃. The operating temperature range is -40~120℃. The sensor is sealed by epoxy resin. Shell is SUS304 φ4.5*40mm.
Features:
R0℃=100Ω
Class: B
Cable: 26#*3C
Operating Temperature Range: -40~120℃
Application:
This temperature sensor is applied for solar heating system.
Structures and Dimension:
