| Place of Origin: | Anhui, China |
|---|---|
| Brand Name: | JINGPU SENSOR |
| Certification: | ISO9001, RoHS |
| Model Number: | MFT |
| Minimum Order Quantity: | 500 Pieces |
| Price: | USD 0.5-5 Per Piece |
| Packaging Details: | Carton Packaging |
| Delivery Time: | 2 Weeks |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 200 Million per Year |
| Probe: | Stainless Steel SUS 5*45 Probe | Wire: | Two-core Sheathed Wire OD 3.0mm |
|---|---|---|---|
| Operating Temperature Range: | -40℃~80℃ | Application: | AC Evaporator Of Vehicle |
| Cable: | PVC Cable | Customization: | Available |
| High Light: | NTC Probe Temperature Sensor,Stainless Steel Probe Temperature Sensor,ISO9001 high temp probe |
||
Stainless Steel NTC Probe Temperature Sensor ISO9001
Product Description:

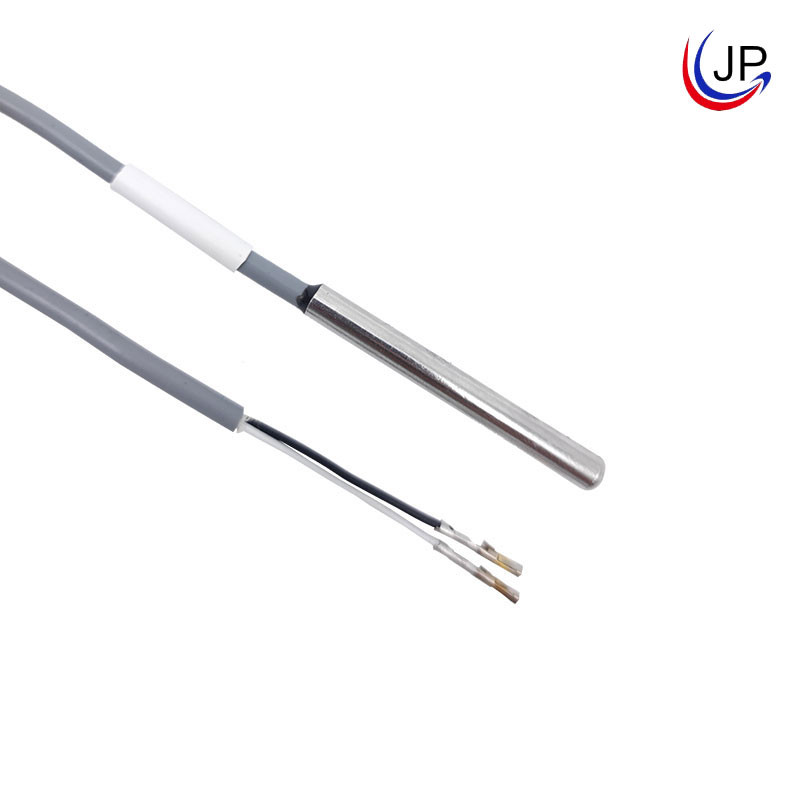

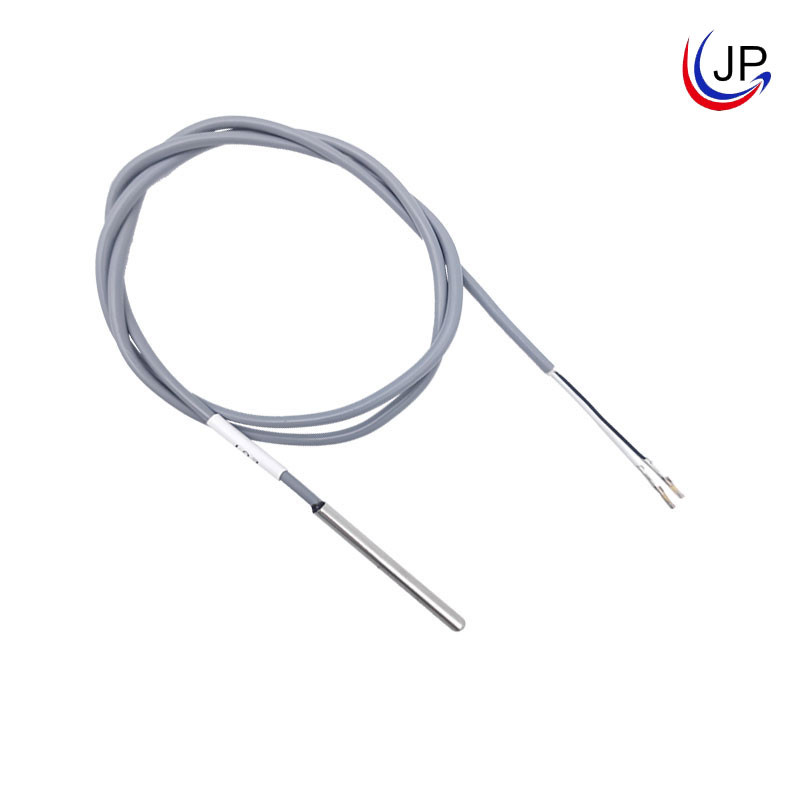

Stainless steel SUS 5*45 probe, two-core sheathed wire OD 3.0mm, can be matched with terminal connectors according to customer requirements.
Features:
Comply with RoHS standard
PVC insulated lead wires series Operating temperature range: -40℃~80℃
Stable performance
Accurate temperature measurement
Application:
AC evaporator of vehicle
Structure and Dimensions(mm):
Electrical Specification:
| Rec. at 25℃(kΩ)+A2:G25+A2:G25 | Beta value | (In air) Pmax(mW) | δ(mW/℃) | Thermal time constant τ(sec.) | Operating Temperature Range TL-TH(℃) | Total length L(mm) |
| 1 | B25/85=3435 | Approx.60 | Max.3.0 | Max.20 | -40℃~80℃ | 100~2000 |
| 1.5 | B25/50=3850 | |||||
| 1.5 | B25/50=3935 | |||||
| 2 | B25/85=3550 | |||||
| 2 | B25/85=3935 | |||||
| 2.08 | B25/85=3580 | |||||
| 2.2 | B25/50=3935 | |||||
| 3 | B25/50=3950 | |||||
| 5 | B25/50=3470 | |||||
| 5 | B25/50=3950 | |||||
| 8 | B25/100=3988 | |||||
| 10 | B25/85=3435 | |||||
| 10 | B25/50=3470 | |||||
| 10 | B25/50=3935 | |||||
| 10 | B25/50=3950 | |||||
| 20 | B25/50=3950 | |||||
| 47 | B25/50=3950 | |||||
| 50 | B25/50=3950 | |||||
| 50 | B25/50=4200 | |||||
| 100 | B25/50=4200 | |||||
| 200 | B25/50=4200 | |||||
| 500 | B25/50=4450 | |||||
| 1000 | B25/85=4600 |
