| Place of Origin: | Anhui, China |
|---|---|
| Brand Name: | JINGPU SENSOR |
| Certification: | ISO9001, RoHS |
| Model Number: | MFT |
| Minimum Order Quantity: | 500 Pieces |
| Price: | To be negotiated |
| Packaging Details: | Carton Packaging |
| Delivery Time: | 2 Weeks |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 200 Million per Year |
| Resistance: | R0℃=32.51kΩ | B Value: | B25/50=3950k |
|---|---|---|---|
| Operating Temperature Range: | -40℃~80℃ | Application: | Refrigerator, Freezer |
| Probe: | ABS Probe | Cable: | PVC Cable |
| Chip: | NTC Chip | ||
| High Light: | NTC electric temperature probe,ABS electric temperature probe,3950k ntc temperature sensor |
||

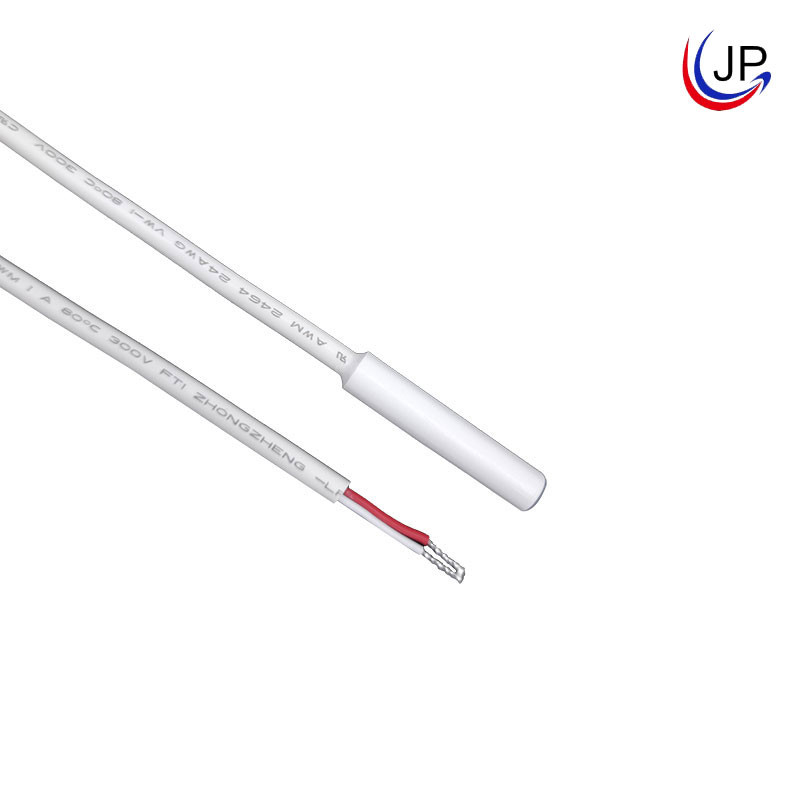

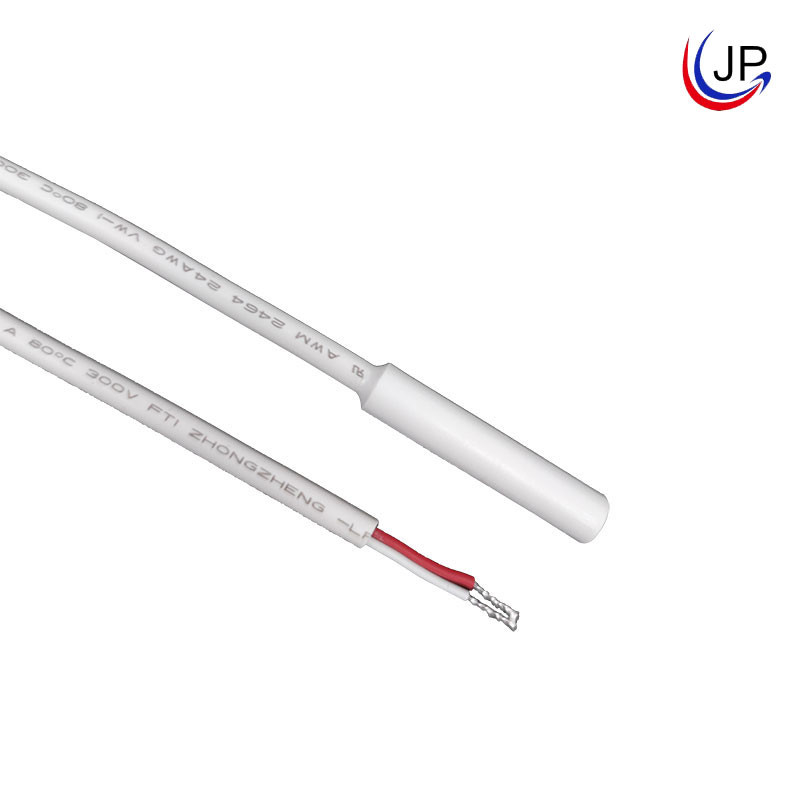

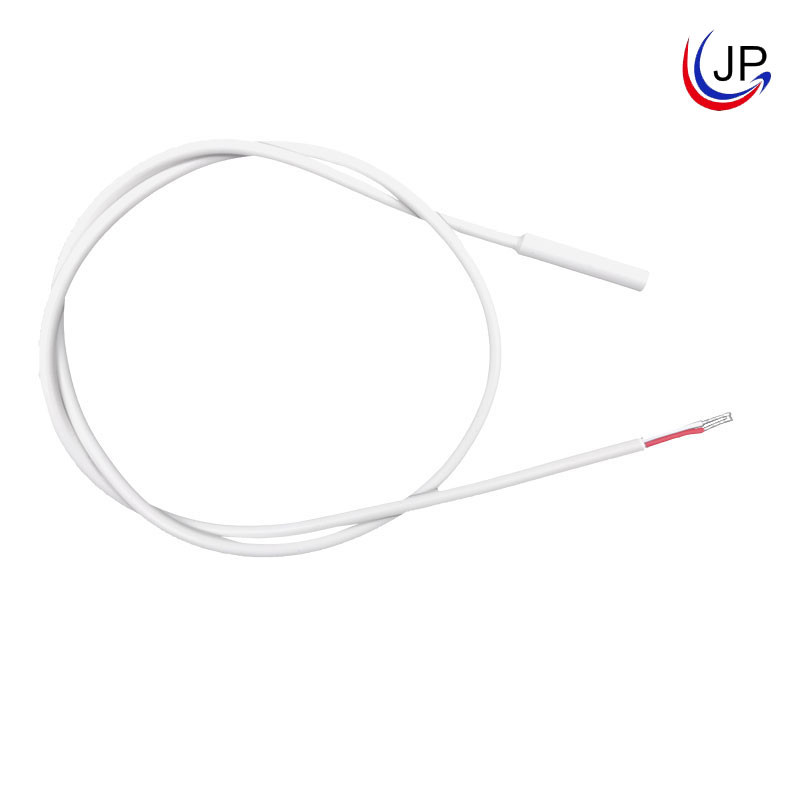

10kΩ3950k ABS 6x30 Probe NTC Temperature Sensor For Refrigerators
Product Description:
ABS probe NTC temperature sensor for refrigerators, the probe is the most common used ABSΦ6*30mm shell in the market, the wire is UL2464 24AWG 80℃ wire, the parameters are generally 5KΩ, 10kΩ, and the control temperature is about 0℃.
Features:
Comply with RoHS standard
PVC insulated lead wires series Operating temperature range: -40℃~80℃
Stable performance
Accurate temperature measurement
Accurate low-temperature control
R25℃=10kΩ
R0℃=32.51kΩ
B25/50=3950k
Application:
Refrigerator, Freezer
Structure and Dimensions(mm):
Other Product Images:
