| Place of Origin: | Anhui, China |
|---|---|
| Brand Name: | JP SENSOR |
| Certification: | RoHS, ISO9001 |
| Model Number: | MFP |
| Minimum Order Quantity: | 1000 Pieces |
| Price: | Negotiable |
| Packaging Details: | Standard Packing |
| Delivery Time: | 2 Weeks |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 200 Million per Year |
| Heat Resistance: | 250℃ | Wire: | UL3122 24AWG |
|---|---|---|---|
| Operating Temperature Range: | -40℃~250℃ | Application: | Induction Cooker And Electric Oven |
| Coating: | Glass Coating | Customization: | Available |
| High Light: | NTC stainless steel temperature probe,Silicone Wire stainless steel temperature probe,Glass Fiber temperature wire sensor |
||

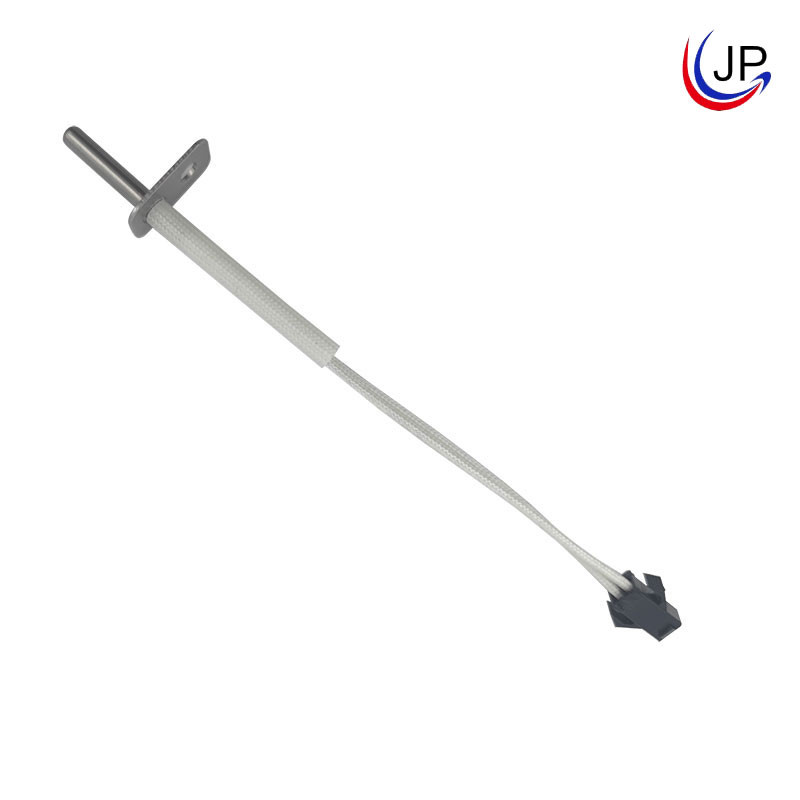

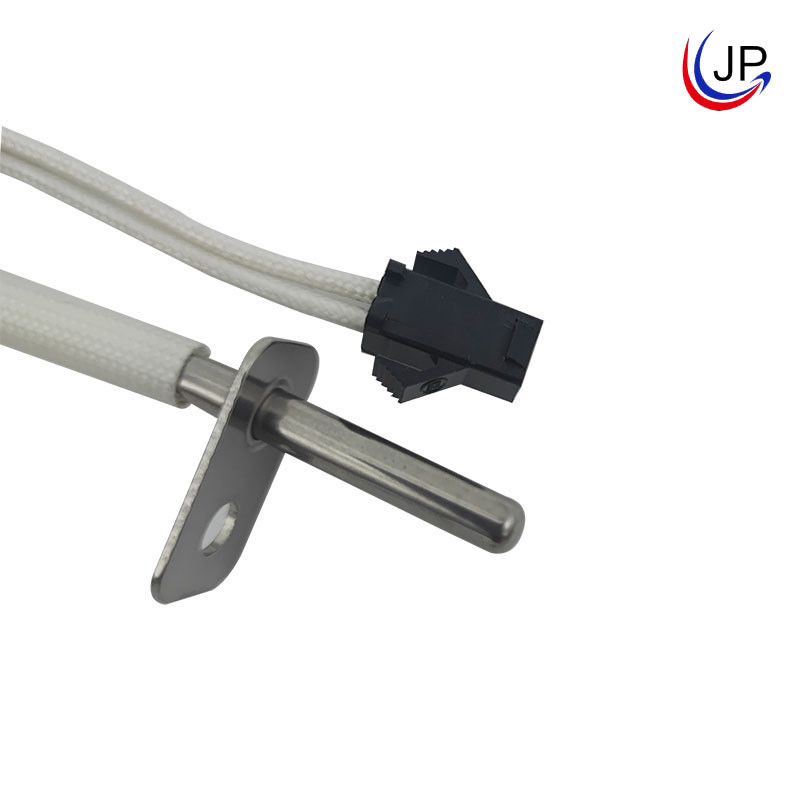

Glass Fiber Silicone Wire NTC Stainless Steel Temperature Probe For Induction Cooker And Electric Oven
Product Description:
This product has a heat resistance of 250℃, which is made of Glass fiber silicone wire, a resistor connected with copper tape, and stainless steel probe.
Features:
Comply with RoHS standard
Operating temperature range: -40℃~250℃.
Application:
Induction cooker and electric oven.
Structure and Dimensions:(unit: mm)
Electrical Specification:
| Rec. at 25℃(kΩ)+A2:G25+A2:G25 | Beta value | (In air) Pmax(mW) | δ(mW/℃) | Thermal time constant τ(sec.) | Operating Temperature Range TL-TH(℃) | Total length L(mm) |
| 1 | B25/85=3435 | Approx.60 | Max.3.0 | Max.20 | -40℃~125℃ | 8~100 |
| 1.5 | B25/50=3850 | |||||
| 1.5 | B25/50=3935 | |||||
| 2 | B25/85=3550 | |||||
| 2 | B25/85=3935 | |||||
| 2.08 | B25/85=3580 | |||||
| 2.2 | B25/50=3935 | |||||
| 3 | B25/50=3950 | |||||
| 5 | B25/50=3470 | |||||
| 5 | B25/50=3950 | |||||
| 8 | B25/100=3988 | |||||
| 10 | B25/85=3435 | |||||
| 10 | B25/50=3470 | |||||
| 10 | B25/50=3935 | |||||
| 10 | B25/50=3950 | |||||
| 20 | B25/50=3950 | |||||
| 47 | B25/50=3950 | |||||
| 50 | B25/50=3950 | |||||
| 50 | B25/50=4200 | |||||
| 100 | B25/50=4200 | |||||
| 200 | B25/50=4200 | |||||
| 500 | B25/50=4450 | |||||
| 1000 | B25/85=4600 |
Other Product Images:
