| Place of Origin: | Anhui, China |
|---|---|
| Brand Name: | JP SENSOR |
| Certification: | ISO9001 |
| Model Number: | MFP-3B |
| Minimum Order Quantity: | 500 Pieces |
| Price: | Negotiable |
| Packaging Details: | Standard Packing |
| Delivery Time: | 2 Weeks |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 200 Million per Year |
| Resistance: | 0.3KΩ~ 2000KΩ | Beta Value: | 2500K~4500K |
|---|---|---|---|
| Operating Temperature Range(): | -40℃~150℃ | Operating Temperature Range(PVC): | -20℃~105℃ |
| Application: | Kettle Water, Heater | OEM/ODM: | Available |
| High Light: | ntc probe temperature sensor,2000K ntc probe temperature sensor,0.3K probe type temperature sensor |
||
0.3K-2000K NTC Probe Temperature Sensor For Kettle Water Heater
Brief Introduction:
MFP series fast response temperature sensor can quickly sense the temperature change, because of the miniature temperature probe. It is consist of the insulated wire ( wire, PVC wire, XLPE insulated wire), NTC chip and metal shell, and epoxy resin. The optional resistance value range is from 0.3kΩ to 2000kΩ, and the beta value range is from 2500K to 4500K.
Features:
Fast response time
insulated lead wires series Operating temperature range: -40℃~150℃
PVC insulated lead wires series Operating temperature range: -20℃~105℃
Comply with RoHS standard
Application:
Kettle
Water heater
Structure and Dimensions:(unit: mm)
| NO. | Name | Material Specification | QTY. | Remarks |
| 1 | Chip | NTC Chip | 1 | / |
| 2 | Encapsulation | SUS 304+Epoxy resin | 1 | / |
| 4 | Cable | UL4413 26AWG 150℃&PVC 26AWG 105℃ | 1 | / |
Electrical Specification:
| Rec. at 25℃(kΩ) | Beta value | (In air) Pmax(mW) | δ(mW/℃) | Thermal time constant τ(sec.) | Operating Temperature Range TL-TH(℃) | Total length L(mm) |
| 1 | B25/85=3435 | Approx.60 | Max.3.0 | Max.20 | -40℃~125℃ | 8~100 |
| 1.5 | B25/50=3850 | |||||
| 1.5 | B25/50=3935 | |||||
| 2 | B25/85=3550 | |||||
| 2 | B25/85=3935 | |||||
| 2.08 | B25/85=3580 | |||||
| 2.2 | B25/50=3935 | |||||
| 3 | B25/50=3950 | |||||
| 5 | B25/50=3470 | |||||
| 5 | B25/50=3950 | |||||
| 8 | B25/100=3988 | |||||
| 10 | B25/85=3435 | |||||
| 10 | B25/50=3470 | |||||
| 10 | B25/50=3935 | |||||
| 10 | B25/50=3950 | |||||
| 20 | B25/50=3950 | |||||
| 47 | B25/50=3950 | |||||
| 50 | B25/50=3950 | |||||
| 50 | B25/50=4200 | |||||
| 100 | B25/50=4200 | |||||
| 200 | B25/50=4200 | |||||
| 500 | B25/50=4450 | |||||
| 1000 | B25/85=4600 |

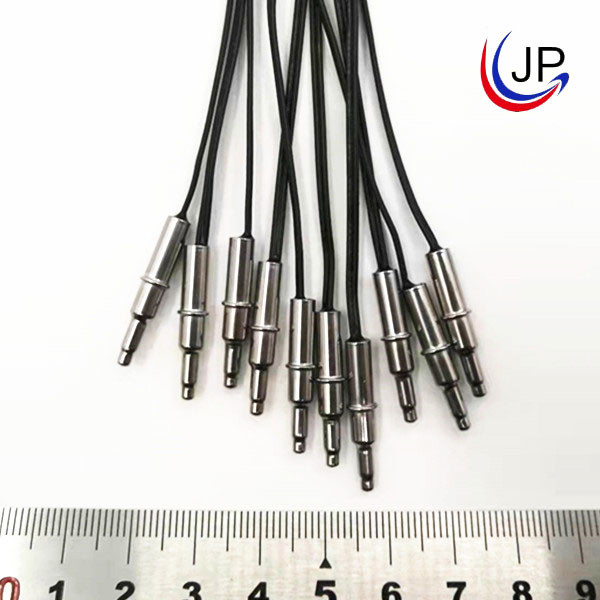

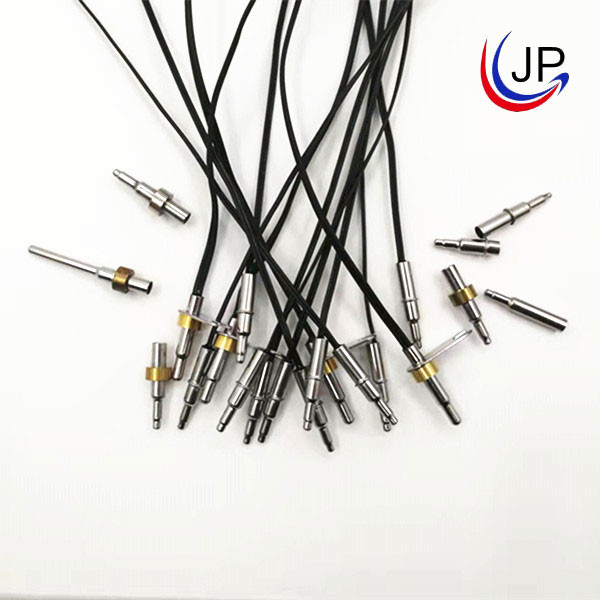

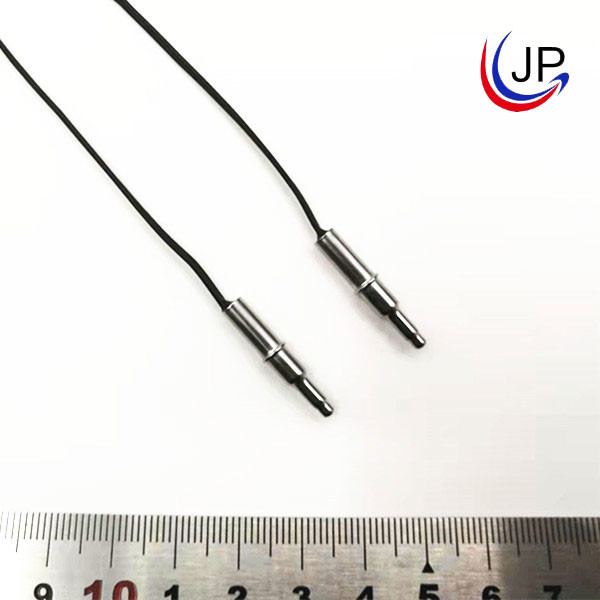

Product Images:
