| Place of Origin: | Anhui, China |
|---|---|
| Brand Name: | JP SENSOR |
| Certification: | ISO9001, RoHS |
| Model Number: | MFP |
| Minimum Order Quantity: | 10000 Pieces |
| Price: | To be negotiated |
| Packaging Details: | Carton Packing |
| Delivery Time: | 2 Weeks |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 2000 Million per Year |
| Resistance: | 2KΩ | B Value: | 3510k |
|---|---|---|---|
| Product: | NTC Chip Thermistor | Resistance Tolerance: | ±1%, ±2%, ±3%, ±5% |
| Custom: | Affirmative | ODM/OEM: | Supportive |
| Shipping: | Sea Freight, Express, Air Freight | Brand: | JINGPU SENSOR |
| High Light: | 2Kohm thermistor type temperature sensor,thermistor type temperature sensor ISO9001,3510k sensor thermistor ntc |
||
2Kohm Thermistor Type Temperature Sensor ISO9001 3510k
Product Description:

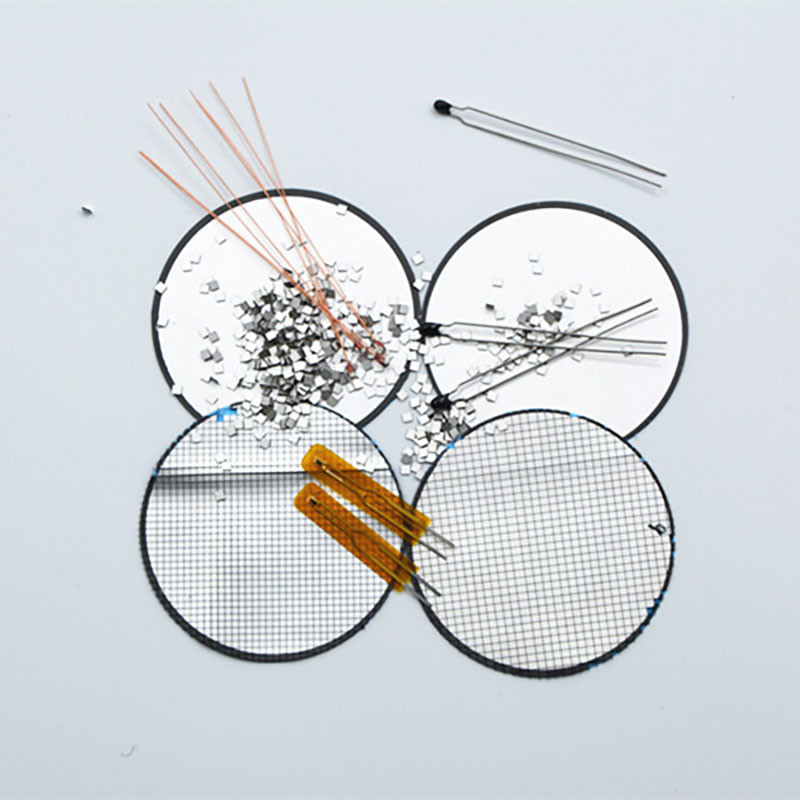

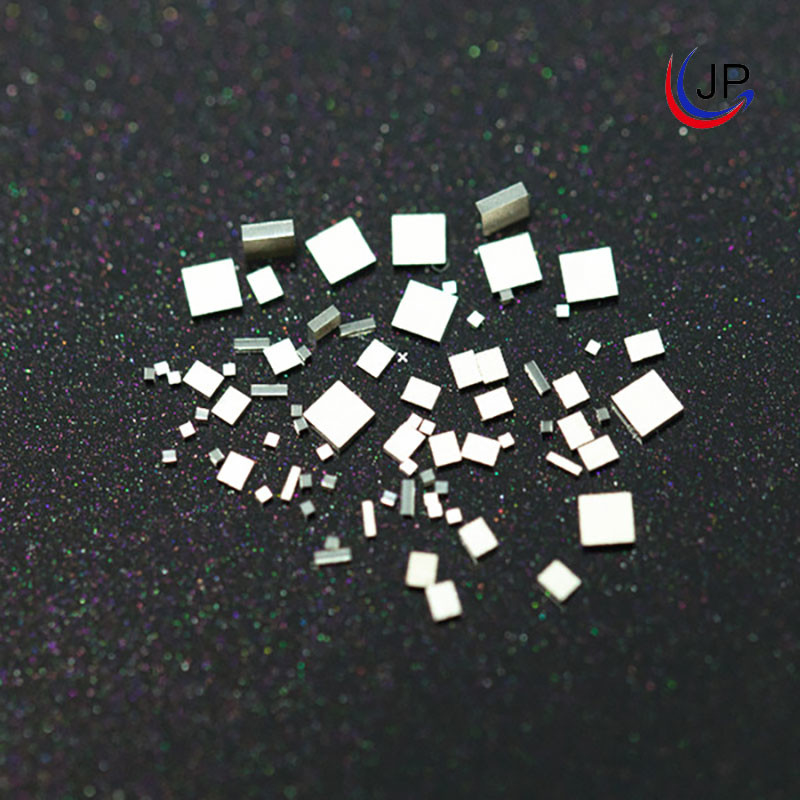

This product is a Resistance 2KΩ B value 3510k NTC Thermal chip, which is widely used for medical equipment, batteries, home appliances, etc. According to resistance tolerance, it can be divided into 5 types of tolerances, ±1%, ±2%, ±3%, and ±5%.
Features:
RoHS standard
Easy to weld
Small size
Stable performance
Silver electrode NTC thermistor
Application:
It is used for fabricating and producing NTC thermistors and temperature sensors.
Part Number Code:
Structure and Dimensions:
Electrical Specification:
| Rec. at 25℃(kΩ)+A2:G25+A2:G25 | Beta value | (In air) Pmax(mW) | δ(mW/℃) | Thermal time constant τ(sec.) | Operating Temperature Range TL-TH(℃) | Total length L(mm) |
| 1 | B25/85=3435 | / | / | / | / | / |
| 1.5 | B25/50=3850 | |||||
| 1.5 | B25/50=3935 | |||||
| 2 | B25/85=3550 | |||||
| 2 | B25/85=3935 | |||||
| 2.08 | B25/85=3580 | |||||
| 2.2 | B25/50=3935 | |||||
| 3 | B25/50=3950 | |||||
| 5 | B25/50=3470 | |||||
| 5 | B25/50=3950 | |||||
| 8 | B25/100=3988 | |||||
| 10 | B25/85=3435 | |||||
| 10 | B25/50=3470 | |||||
| 10 | B25/50=3935 | |||||
| 10 | B25/50=3950 | |||||
| 20 | B25/50=3950 | |||||
| 47 | B25/50=3950 | |||||
| 50 | B25/50=3950 | |||||
| 50 | B25/50=4200 | |||||
| 100 | B25/50=4200 | |||||
| 200 | B25/50=4200 | |||||
| 500 | B25/50=4450 | |||||
| 1000 | B25/85=4600 |
