| Place of Origin: | Anhui, China |
|---|---|
| Brand Name: | JINGPU SENSOR |
| Certification: | ISO9001, RoHS |
| Model Number: | Chip |
| Minimum Order Quantity: | 500 Pieces |
| Price: | Negotiable |
| Packaging Details: | Standard Packaging |
| Delivery Time: | 2 Weeks |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 200 Million per Year |
| Resistance: | R25℃=2kΩ | B Value: | B25/85=3550k |
|---|---|---|---|
| Tolerance: | ±1%, ±2%, ±3%, ±5% | Product: | NTC Thermal Chip |
| Customization: | Available | ODM/OEM: | Y |
| High Light: | 2Kohm NTC Chip Thermistor,R25 NTC Chip Thermistor,3550k ntc probe temperature sensor |
||

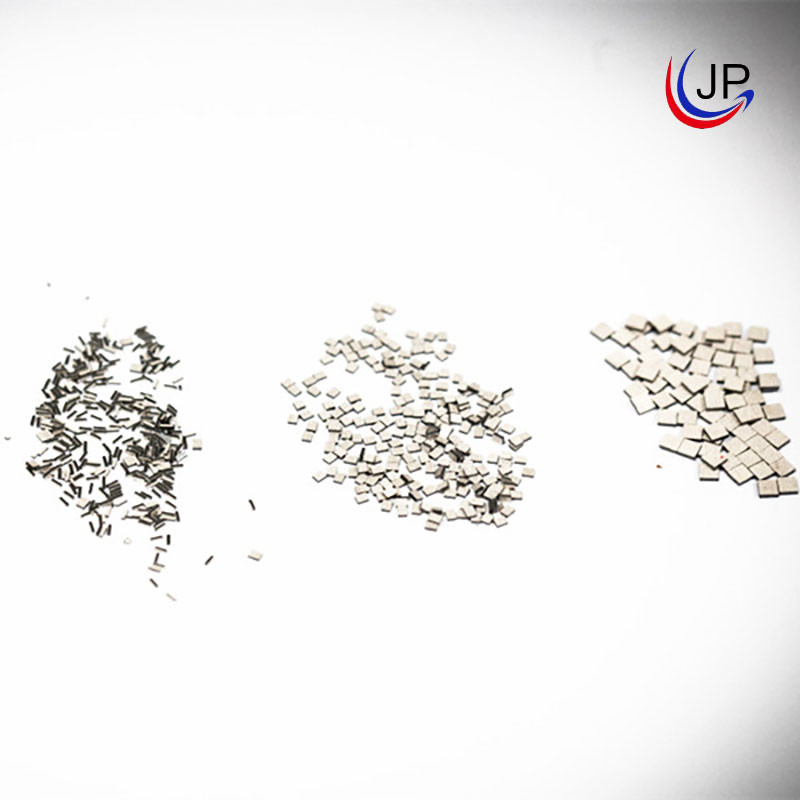

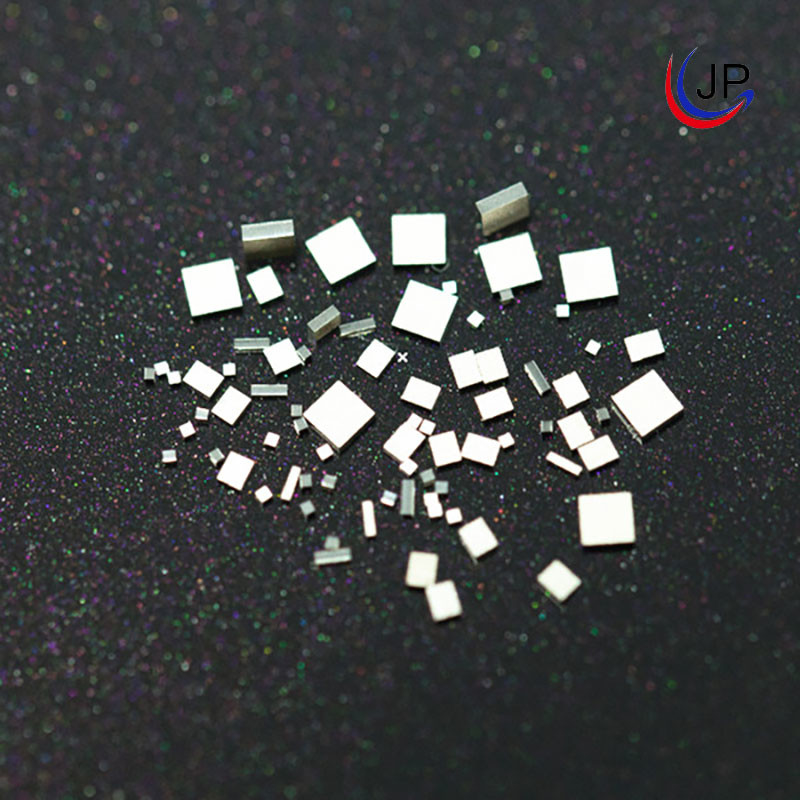

B25/85 3550k R25 2K NTC Chip Thermistor Soldering Resistant
Product Description:
2KΩ 3550k NTC Thermal chip is widely used, generally used in home appliances, medical equipment, batteries, etc. Its resistance accuracy can be divided into ±1%, ±2%, ±3%, ±5%.
Features:
Comply with RoHS standard
Silver electrode
Small dimension
Stable
Soldering resistant
Good Replaceability
R25℃=2kΩ
B25/85=3550k
Application:

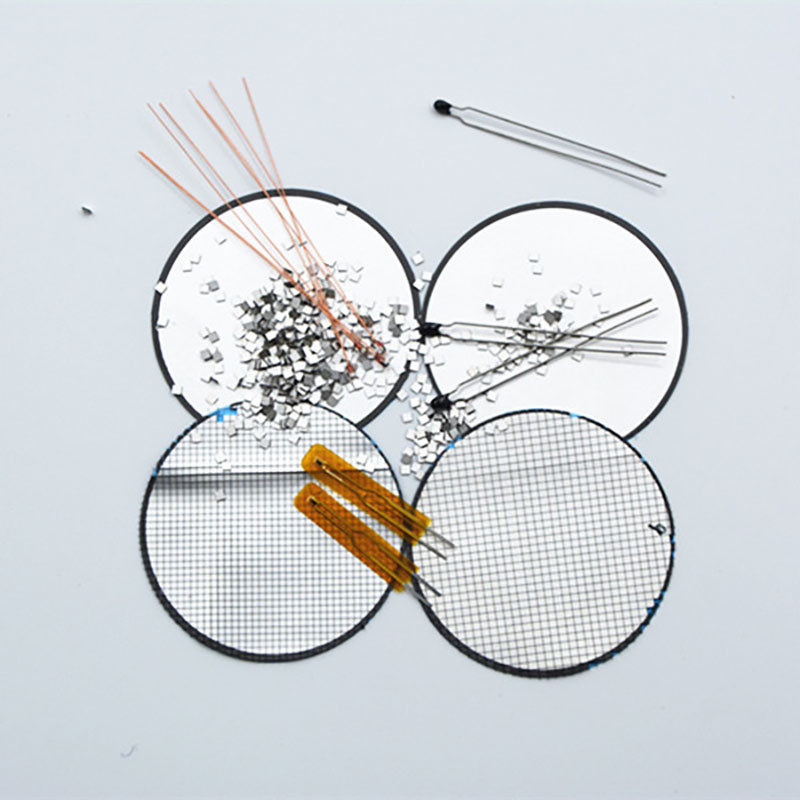

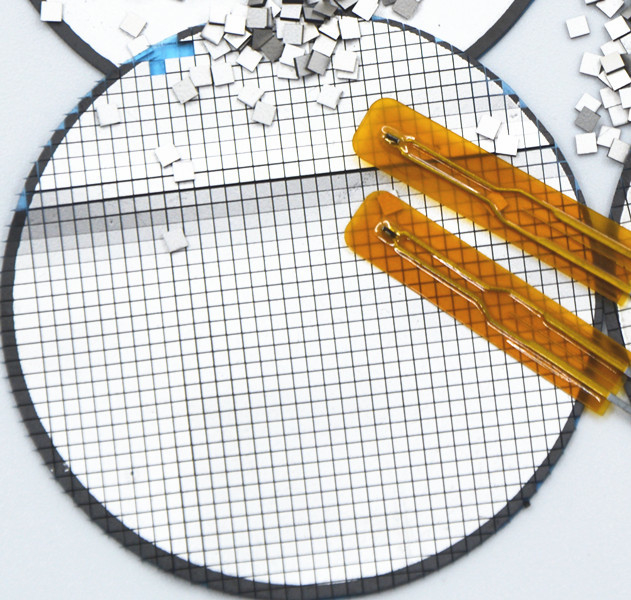

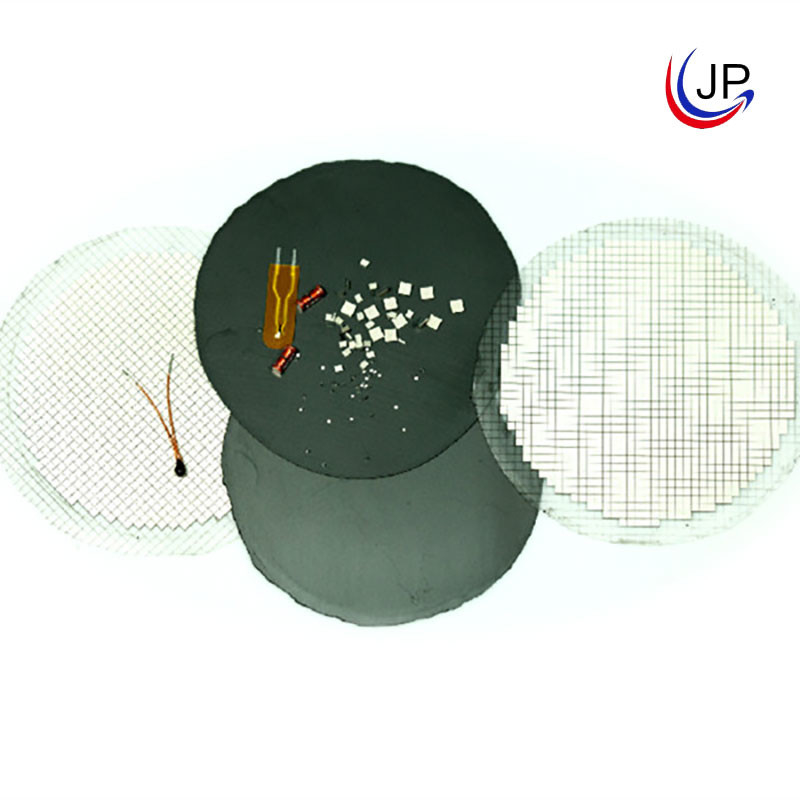

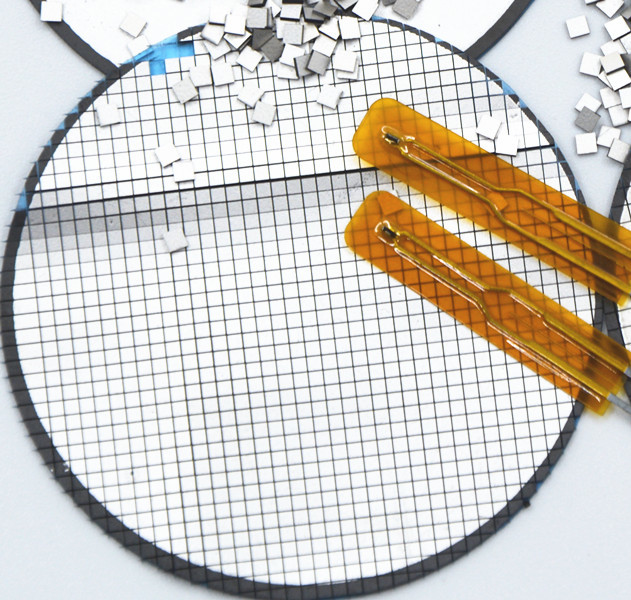

It is used for the production of NTC thermistors and temperature sensors. This item is mainly applied to automobiles.
Part Number Code:
Structure and Dimensions:
Electrical Specification:
| Rec. at 25℃(kΩ) | Beta value | (In air) Pmax(mW) | δ(mW/℃) | Thermal time constant τ(sec.) | Operating Temperature Range TL-TH(℃) | Total length L(mm) |
| 1 | B25/85=3435 | / | / | / | / | / |
| 1.5 | B25/50=3850 | |||||
| 1.5 | B25/50=3935 | |||||
| 2 | B25/85=3550 | |||||
| 2 | B25/85=3935 | |||||
| 2.08 | B25/85=3580 | |||||
| 2.2 | B25/50=3935 | |||||
| 3 | B25/50=3950 | |||||
| 5 | B25/50=3470 | |||||
| 5 | B25/50=3950 | |||||
| 8 | B25/100=3988 | |||||
| 10 | B25/85=3435 | |||||
| 10 | B25/50=3470 | |||||
| 10 | B25/50=3935 | |||||
| 10 | B25/50=3950 | |||||
| 20 | B25/50=3950 | |||||
| 47 | B25/50=3950 | |||||
| 50 | B25/50=3950 | |||||
| 50 | B25/50=4200 | |||||
| 100 | B25/50=4200 | |||||
| 200 | B25/50=4200 | |||||
| 500 | B25/50=4450 | |||||
| 1000 | B25/85=4600 |
