Enamelled Wire NTC Thermistor Electronic Thermometer and Battery
Brief Instruction:
The enamelled wire NTC thermistor is manufactured from Hefei Jingpu Sensor Technology Co.,Ltd. The enamelled wire NTC thermistor is consist of enamelled wire, NTC chip and epoxy resin. The optional resistance value range from 0.3kΩ to 2000kΩ, and beta value range from 2500K to 4500K. The enamelled wire NTC thermistor apply for the electronic clinical thermometer, electrical medical device and temperature measurement in battery.
Features:
Comply for RoHS standard
Miniature design
Fast thermal response time
Excellent long-term stability
Alternative lead lengths on request
Application:
Electronic clinical thermometer
Electric medical device
Temperature measurement in battery
Part Number Code:
Structure and Dimensions:(unit:mm)
| Rec. at 25℃(kΩ) | Beta value | (In air)Pmax(mW) | δ(mW/℃) | thermal time constant τ(sec.) | Operating Temperature Range TL-TH(℃) | Total length L(mm) |
| 1 | B25/85=3435 | Approx.60 | Approx.2.5 | Approx.20 | -10-40 | 40-100 |
| 1.5 | B25/50=3850 | |||||
| 1.5 | B25/50=3935 | |||||
| 2 | B25/85=3550 | |||||
| 2 | B25/85=3935 | |||||
| 2.08 | B25/85=3580 | |||||
| 2.2 | B25/50=3935 | |||||
| 3 | B25/50=3950 | |||||
| 5 | B25/50=3470 | |||||
| 5 | B25/50=3950 | |||||
| 8 | B25/100=3988 | |||||
| 10 | B25/85=3435 | |||||
| 10 | B25/50=3470 | |||||
| 10 | B25/50=3935 | |||||
| 10 | B25/50=3950 | |||||
| 20 | B25/50=3950 | |||||
| 47 | B25/50=3950 | |||||
| 50 | B25/50=3950 | |||||
| 50 | B25/50=4200 | |||||
| 100 | B25/50=4200 | |||||
| 200 | B25/50=4200 | |||||
| 500 | B25/50=4450 | |||||
| 1000 | B25/85=4600 |

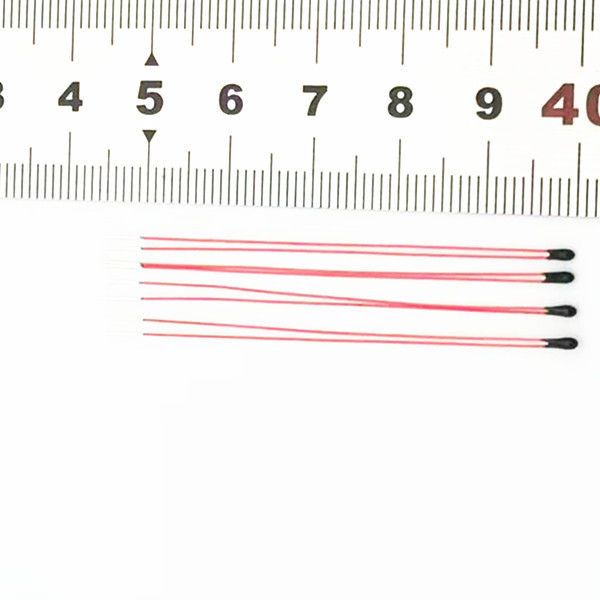

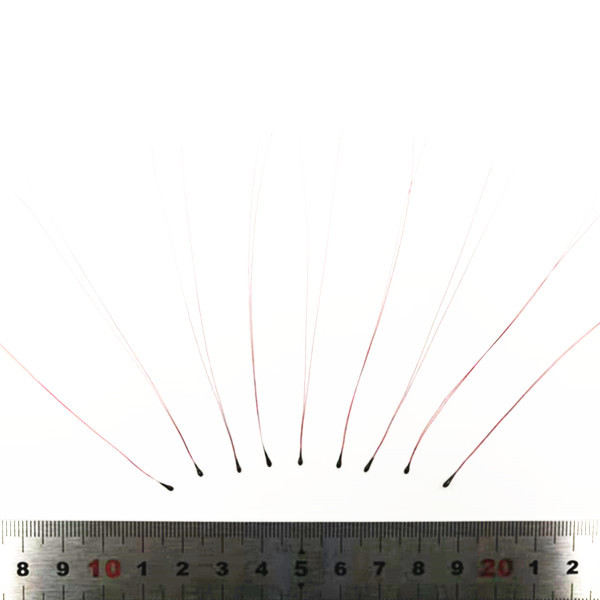

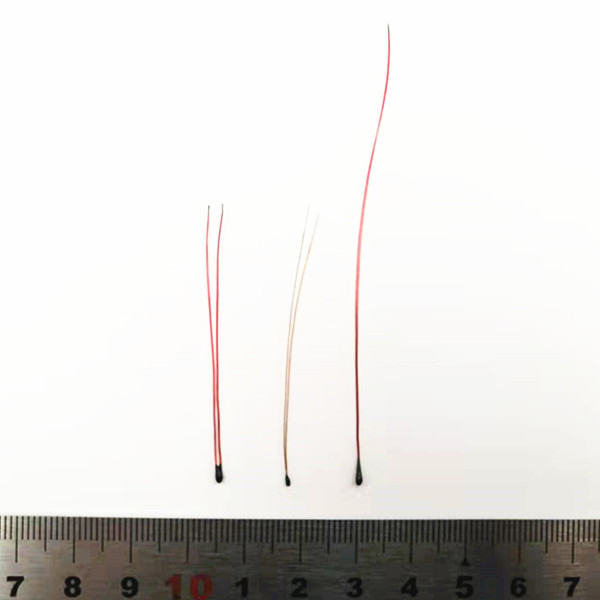

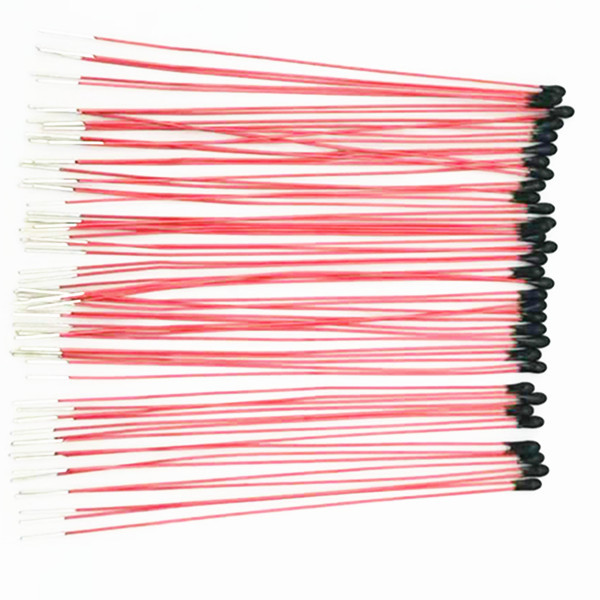

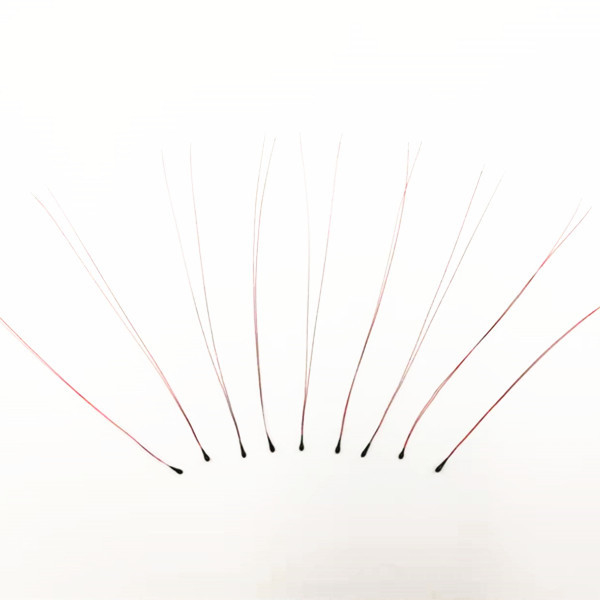

Product picture:
Standard packing (inner packing): 500pcs/polybag
Operation Notice
1.Application:Temperature measure and control；
2.The current flowing through the NTC is controlled within the Pmax range to avoid the measurement error caused by the self-heating of the component.
3.Avoid excessive heat shock,The hot air blow should beat least 30mm to the probe in case heat shrink protection tube need to be attached.
4.Storage Temperature -10℃～40℃,≤75%RH；Avoid in a corrosive gas and sunlit environment; After opening the package, it needs to be sealed again.
