| Place of Origin: | Anhui, China |
|---|---|
| Brand Name: | JP SENSOR |
| Certification: | ISO9001, RoHS |
| Model Number: | Chip Termistor |
| Minimum Order Quantity: | 1000 Pieces |
| Price: | Negotiable |
| Packaging Details: | Carton Packing |
| Delivery Time: | 2 Weeks |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 200 Million per Year |
| Features: | Comply With RoHS Standard Silver Electrode Small Dimension Stable High Soldering Resistance | Resistance: | 10KΩ |
|---|---|---|---|
| B Value: | 3435K | Resistance Tolerance: | 1%, ±2%, ±3%, ±5% |
| Application: | It Is Used To Fabricate NTC Thermistor And Temperature Sensor. | Customization: | Available |
| High Light: | 3435K NTC Chip Thermistor,10Kohm NTC Chip Thermistor,High Soldering Resistance ntc thermal sensor |
||

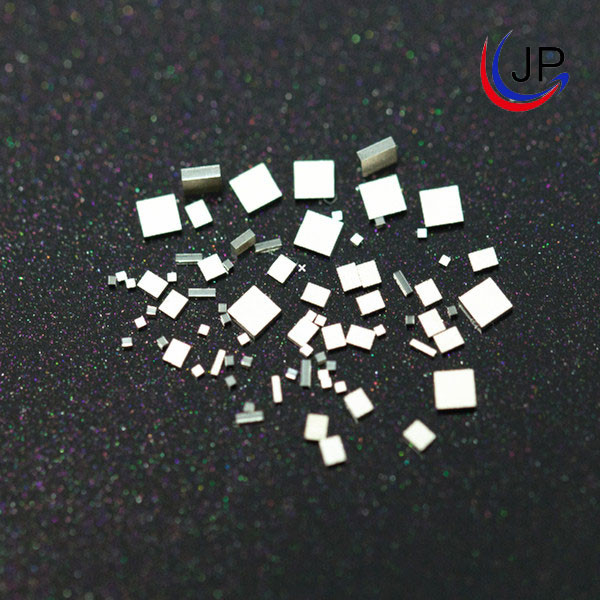

10Kohm 3435K NTC Chip Thermistor Small Dimension Silver Electrode High Soldering Resistance
Product Description:
10KΩ 3435k NTC Thermal chip is widely used in many industries, which is mainly used in power tools, batteries, new energy vehicles, equipment testing, etc. The 10KΩ 3435k chip is produced by our company, which can be divided into 5 kinds according to the resistance tolerances. Tolerances are 1%, ±2%, ±3%, ±5%.
Features:
Comply with RoHS standard
Silver electrode
Small dimension
Stable
High Soldering Resistance
Application:
It is used to fabricate NTC thermistors and temperature sensors.
Part Number Code:
Structure and Dimension:
Electrical Specification:
| Rec. at 25℃(kΩ)+A2:G25+A2:G25 | Beta value |
(In air) Pmax(mW) |
δ(mW/℃) | Thermal time constant τ(sec.) | Operating Temperature Range TL-TH(℃) | Total length L(mm) |
| 1 | B25/85=3435 | / | / | / | / | / |
| 1.5 | B25/50=3850 | |||||
| 1.5 | B25/50=3935 | |||||
| 2 | B25/85=3550 | |||||
| 2 | B25/85=3935 | |||||
| 2.08 | B25/85=3580 | |||||
| 2.2 | B25/50=3935 | |||||
| 3 | B25/50=3950 | |||||
| 5 | B25/50=3470 | |||||
| 5 | B25/50=3950 | |||||
| 8 | B25/100=3988 | |||||
| 10 | B25/85=3435 | |||||
| 10 | B25/50=3470 | |||||
| 10 | B25/50=3935 | |||||
| 10 | B25/50=3950 | |||||
| 20 | B25/50=3950 | |||||
| 47 | B25/50=3950 | |||||
| 50 | B25/50=3950 | |||||
| 50 | B25/50=4200 | |||||
| 100 | B25/50=4200 | |||||
| 200 | B25/50=4200 | |||||
| 500 | B25/50=4450 | |||||
| 1000 | B25/85=4600 |
