| Place of Origin: | Anhui, China |
|---|---|
| Brand Name: | JP SENSOR |
| Certification: | ISO9001, RoHS |
| Model Number: | MFP |
| Minimum Order Quantity: | 1000 Pieces |
| Price: | Negotiable |
| Packaging Details: | Carton Packing |
| Delivery Time: | 2 Weeks |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 200 Million per Year |
| Chip: | NTC Chip | Encapsulation: | Epoxy Resin Encapsulated |
|---|---|---|---|
| Ring Lug: | M3.2 | Operating Temperature Range: | -20℃~105℃(PVC) |
| Operating Temperature Range:: | -40℃~125℃(/PTFE) | Application: | Home Appliances |
| High Light: | jingpu Home Appliances Surface Mount Temperature Sensor,jingpu Surface Mount Temperature Sensor Epoxy,jingpu Resin thermistor type temperature sensor |
||

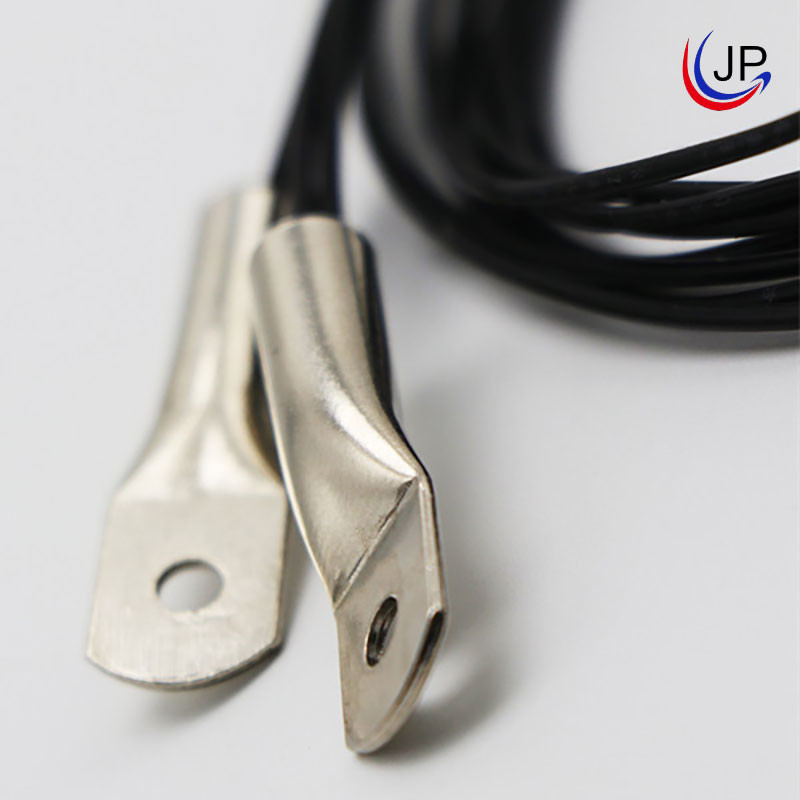

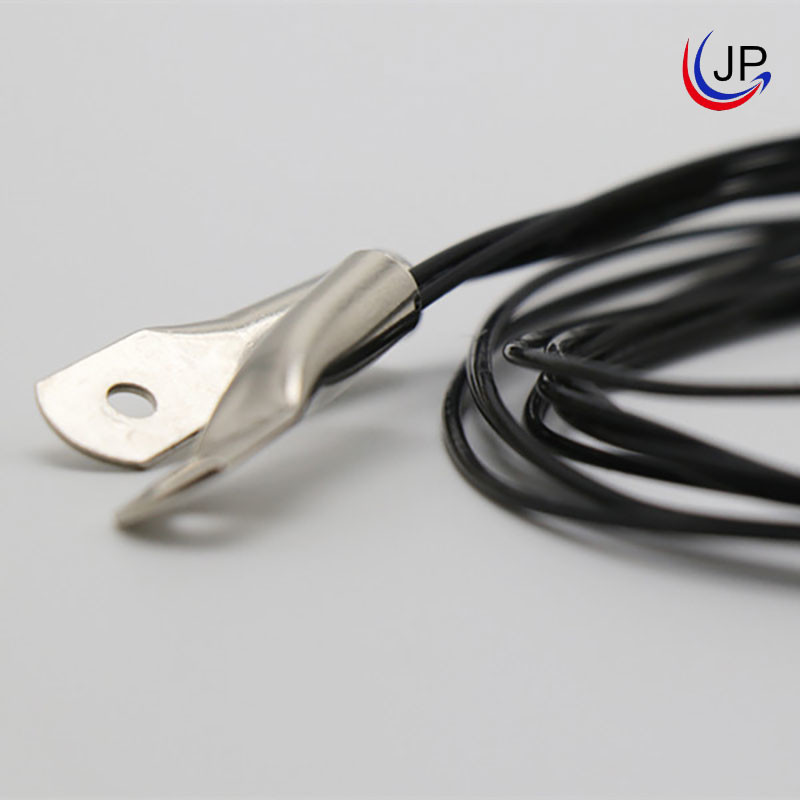

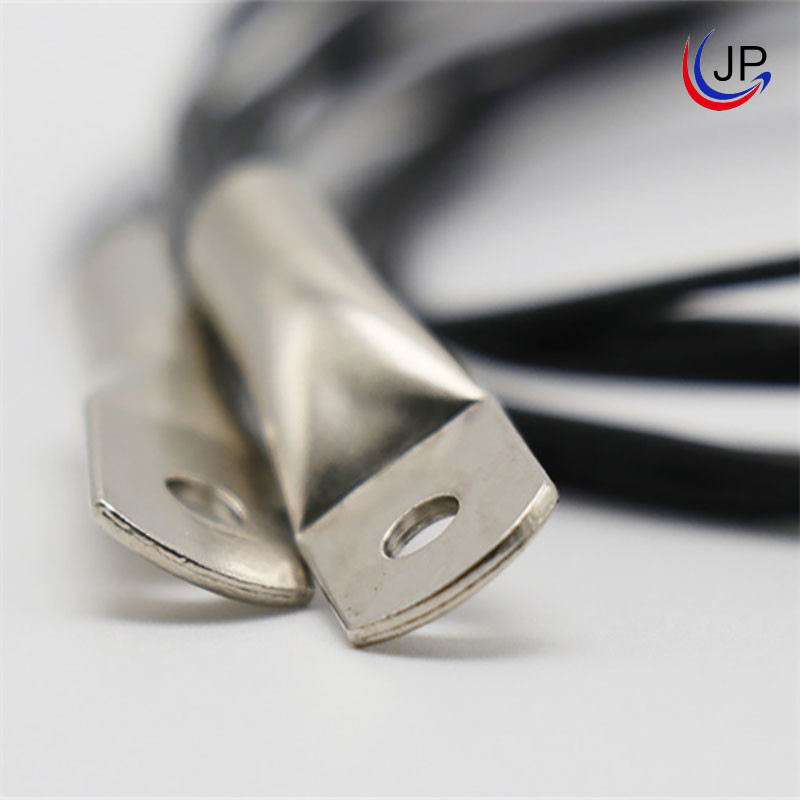

Home Appliances Surface Mount Temperature Sensor Epoxy Resin Encapsulated NTC
Brief Introduction:
The surface mounting temperature sensor consists of the insulated wire ( cable & PVC cable, XLPE insulated wire), NTC chip and epoxy resin, and ring lug M3.2.
Features:
Comply with RoHS standard
miniature designed
Interchangeability
surface mount temperature measurement
PVC insulated lead wires series Operating temperature range: -20℃~105℃
(PTFE) insulated lead wires series Operating temperature range: -40℃~125℃
Application:
Home appliances, such as electric cooker
Structure and Dimensions(mm):
Electrical Specification:
| Rec. at 25℃(kΩ)+A2:G25+A2:G25 | Beta value | (In air)Pmax(mW) | δ(mW/℃) | thermal time constant τ(sec.) | Operating Temperature Range TL-TH(℃) | Total length L(mm) |
| 1 | B25/85=3435 | Approx.60 | Max.3.0 | Max.20 | -40℃~125℃ | 8~100 |
| 1.5 | B25/50=3850 | |||||
| 1.5 | B25/50=3935 | |||||
| 2 | B25/85=3550 | |||||
| 2 | B25/85=3935 | |||||
| 2.08 | B25/85=3580 | |||||
| 2.2 | B25/50=3935 | |||||
| 3 | B25/50=3950 | |||||
| 5 | B25/50=3470 | |||||
| 5 | B25/50=3950 | |||||
| 8 | B25/100=3988 | |||||
| 10 | B25/85=3435 | |||||
| 10 | B25/50=3470 | |||||
| 10 | B25/50=3935 | |||||
| 10 | B25/50=3950 | |||||
| 20 | B25/50=3950 | |||||
| 47 | B25/50=3950 | |||||
| 50 | B25/50=3950 | |||||
| 50 | B25/50=4200 | |||||
| 100 | B25/50=4200 | |||||
| 200 | B25/50=4200 | |||||
| 500 | B25/50=4450 | |||||
| 1000 | B25/85=4600 |
