| Place of Origin: | Anhui, China |
|---|---|
| Brand Name: | JP SENSOR |
| Certification: | ISO9001, RoHS |
| Model Number: | MFP-4B |
| Minimum Order Quantity: | 1000 Pieces |
| Price: | Negotiable |
| Packaging Details: | Carton Package |
| Delivery Time: | 2 Weeks |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 200 Million per Year |
| Operating Temperature Range:: | -40℃~125℃ | B25/50: | 3950K |
|---|---|---|---|
| Encapsulation: | Epoxy Resin | Wire: | 26AWG 200℃ Wire |
| Probe: | Stainless Steel Probe | Application: | Electric Kettle |
| High Light: | NTC wired temperature sensor,wired temperature sensor,epoxy Resin temperature probe wire |
||

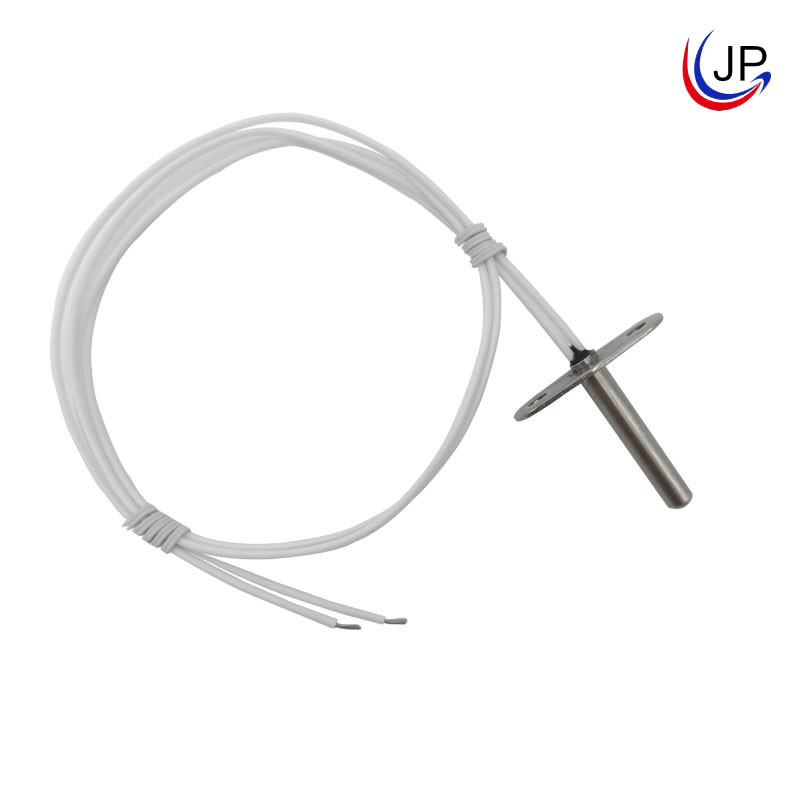

NTC Wired Temperature Sensor For Electric Kettle Epoxy Resin Encapsulation
Brief Instruction (Product Description):
This product is generally used for stainless steel probe of electric kettle, the wire is 26AWG 200℃ wire, the resistance parameters are generally 50KΩ, 100KΩ, B25/50=3950K (can also be customized according to customer requirements) using epoxy resin encapsulation, the wire tail can be equipped with corresponding connectors based on Customers’ requirement.
Features:
Comply with RoHS standard
Operating temperature range: -40℃~125℃
Easy to install
Stable
Stainless steel probe
Application:
Electric kettle
Structure and Dimensions:(unit: mm)
Electrical Specification:
| Rec. at 25℃(kΩ) | Beta value | (In air) Pmax(mW) | δ(mW/℃) | Thermal time constant τ(sec.) | Operating Temperature Range TL-TH(℃) | Total length L(mm) |
| 1 | B25/85=3435 | Approx.60 | Max.3.0 | Max.20 | -40℃~125℃ | 8~100 |
| 1.5 | B25/50=3850 | |||||
| 1.5 | B25/50=3935 | |||||
| 2 | B25/85=3550 | |||||
| 2 | B25/85=3935 | |||||
| 2.08 | B25/85=3580 | |||||
| 2.2 | B25/50=3935 | |||||
| 3 | B25/50=3950 | |||||
| 5 | B25/50=3470 | |||||
| 5 | B25/50=3950 | |||||
| 8 | B25/100=3988 | |||||
| 10 | B25/85=3435 | |||||
| 10 | B25/50=3470 | |||||
| 10 | B25/50=3935 | |||||
| 10 | B25/50=3950 | |||||
| 20 | B25/50=3950 | |||||
| 47 | B25/50=3950 | |||||
| 50 | B25/50=3950 | |||||
| 50 | B25/50=4200 | |||||
| 100 | B25/50=4200 | |||||
| 200 | B25/50=4200 | |||||
| 500 | B25/50=4450 | |||||
| 1000 | B25/85=4600 |
Other Product Images:
