| Place of Origin: | Anhui, China |
|---|---|
| Brand Name: | JP SENSOR |
| Certification: | ISO9001, RoHS |
| Model Number: | MFP-2C |
| Minimum Order Quantity: | 1000 Pieces |
| Price: | To be negotiated |
| Packaging Details: | Carton Packing |
| Delivery Time: | 2 Weeks |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 200 Million per Year |
| Wire: | UL 4413 26awg 150℃ | Chip: | NTC Chip |
|---|---|---|---|
| Encapsulation: | Epoxy Resin | B Value: | 2500K To 4500K |
| Operating Temperature Range: | -40℃~125℃ | Application: | Control Cabinet |
| Probe: | Cu/Ni | ||
| High Light: | ISO9001 jingpu NTC Surface Mount Temperature Sensor,ISO9001 jingpu Surface Mount Temperature Sensor Epoxy,ISO9001 jingpu Resin thermistor temperature sensor |
||

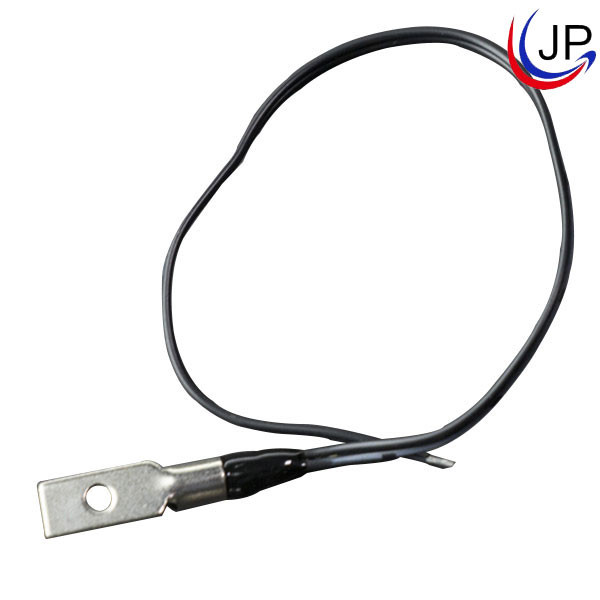

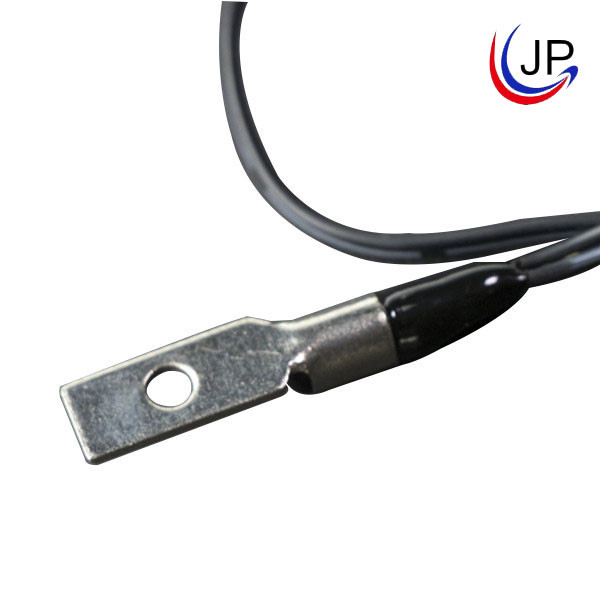

NTC Surface Mount Temperature Sensor Epoxy Resin Insulated Wire Ring Lug 3.7
Brief Instruction:
MFP-2C Surface mounting temperature sensor be consist of the insulated wire ( cable & PVC cable, XLPE insulated wire), NTC chip and epoxy resin, ring lug M3.7 The optional resistance value range 0.3kΩto 2000kΩ, and beta value range 2500K to 4500K.
Features:
Comply with RoHS standard
miniature designed
Interchangeability
surface mount temperature measurement
Operating temperature range: -40℃~125℃
Application:
Control cabinet
Structure and Dimensions:
Electrical Specification:
| Rec. at 25℃(kΩ) | Beta value |
(In air) Pmax(mW) |
δ(mW/℃) | thermal time constant τ(sec.) | Operating Temperature Range TL-TH(℃) | Total length L(mm) |
| 1 | B25/85=3435 | Approx.60 | / | / | -20℃~105℃(PVC wire)& -40℃~125℃( or XLPE wire) | 100~5000 |
| 1.5 | B25/50=3850 | |||||
| 1.5 | B25/50=3935 | |||||
| 2 | B25/85=3550 | |||||
| 2 | B25/85=3935 | |||||
| 2.08 | B25/85=3580 | |||||
| 2.2 | B25/50=3935 | |||||
| 3 | B25/50=3950 | |||||
| 5 | B25/50=3470 | |||||
| 5 | B25/50=3950 | |||||
| 8 | B25/100=3988 | |||||
| 10 | B25/85=3435 | |||||
| 10 | B25/50=3470 | |||||
| 10 | B25/50=3935 | |||||
| 10 | B25/50=3950 | |||||
| 20 | B25/50=3950 | |||||
| 47 | B25/50=3950 | |||||
| 50 | B25/50=3950 | |||||
| 50 | B25/50=4200 | |||||
| 100 | B25/50=4200 | |||||
| 200 | B25/50=4200 | |||||
| 500 | B25/50=4450 | |||||
| 1000 | B25/85=4600 |
