| Place of Origin: | Anhui, China |
|---|---|
| Brand Name: | JP SENSOR |
| Certification: | ISO9001, RoHS |
| Model Number: | MF57 |
| Minimum Order Quantity: | 2000 Pieces |
| Price: | Negotiable |
| Packaging Details: | Standard Packing |
| Delivery Time: | 2 Weeks |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 200 Million per Year |
| R25: | 10KΩ±1% | B25/50: | 3950±1% |
|---|---|---|---|
| Glass Probe: | 1.3mm | Chip: | NTC Thermistor |
| Application: | Home Appliance, Automotic Electronic, Industrial Device,etc | Wire: | Dumet Wire |
| After-sale Service: | Quality Assurance | Shipping: | Air Freight, Express, Sea Freight |
| High Light: | B Value Glass Bead Thermistor,Glass Bead Thermistor 10kohm,3950K ntc thermistor sensor |
||

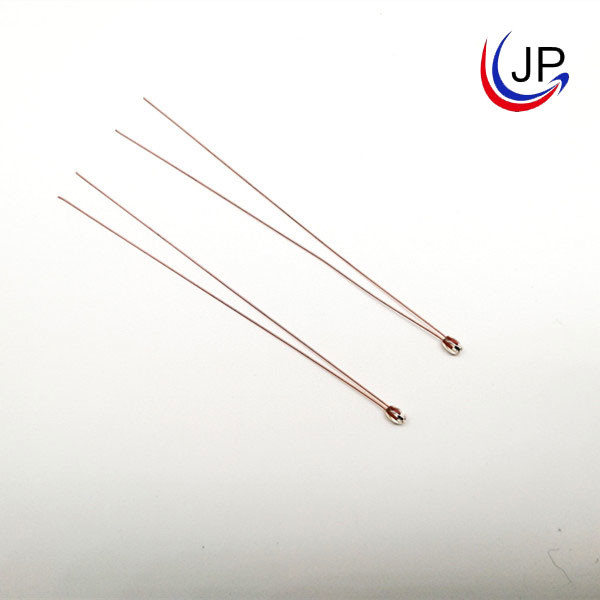

B Value 3950K Glass Bead Thermistor 10kohm Resistance
Product Description:
B Value 3950K Glass Bead Thermistor 10kohm Resistance is one of NTC thermistor sensors, which is made of glass bead, thinner dumet wire.The high-temperature resistance is its feature. And it is widely applied for automatic electronics, home appliances, industrial devices, etc.
Features:
R25=10KΩ±1%,B25/50=3950±1%

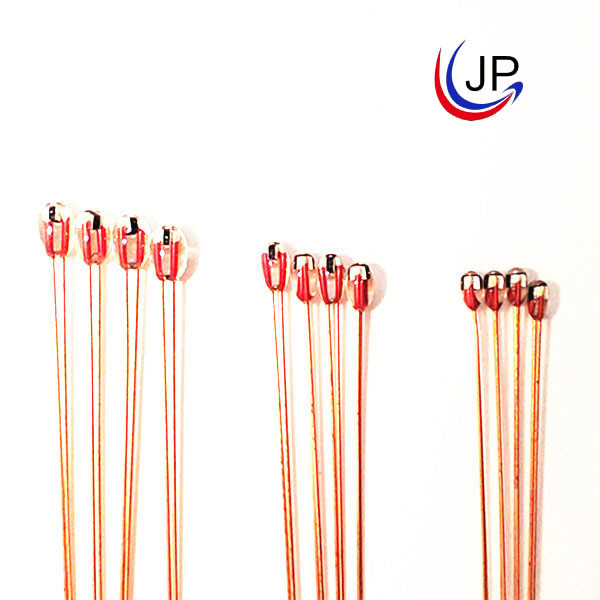

glass encapsulation
high temperature resistant
Operating temperature range: -40℃~300℃

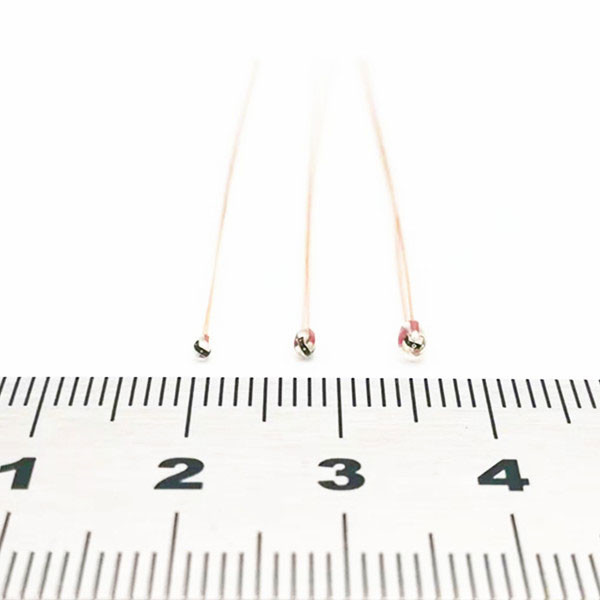

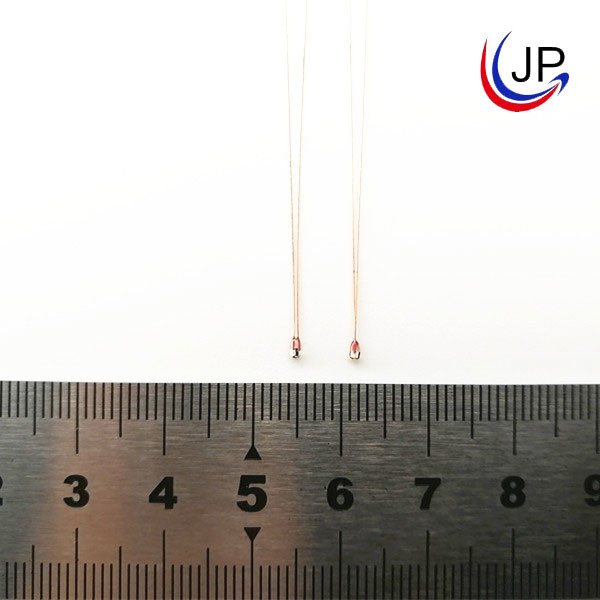

Glass probe 1.3mm
Application:
Home appliance
Automotive electronic
Industrial device etc
Part Number Code:

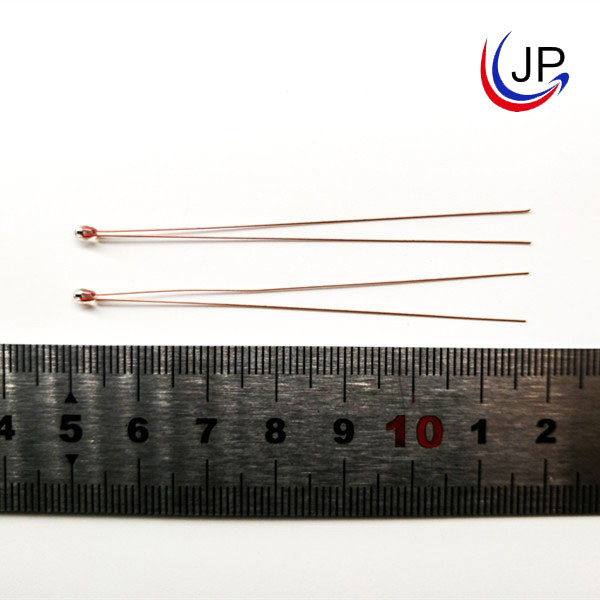

Structure and Dimensions:
Electrical Specification:
| Rec.at 25℃(KΩ) | Beta value | (In air) Pmax(mW) |
δ (mW/℃) |
Thermal time constant τ(sec.) | Operating Temperature Range TL-TH(℃) | Total length L(mm) |
| 2 | B25/85=3470 | Approx.20 | Approx.0.75 | Max.10 | -40~300 | 50 |
| 2 | B25/85=3977 | |||||
| 5 | B25/85=3950 | |||||
| 10 | B25/85=3435 | |||||
| 10 | B25/50=3950 | |||||
| 50 | B25/50=3950 | |||||
| 100 | B25/50=3950 | |||||
| 100 | B25/85=4132 | |||||
| 100 | B25/50=4200 |
