| Place of Origin: | Anhui, China |
|---|---|
| Brand Name: | JP SENSOR |
| Certification: | ISO9001, RoHS |
| Model Number: | MFP-3B |
| Minimum Order Quantity: | 1000 Pieces |
| Price: | Negotiable |
| Packaging Details: | Standard Packing |
| Delivery Time: | 2 Weeks |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 200 Million per Year |
| Resistance: | 50KΩ Or 100KΩ | B Value: | B25/50=3950K (Can Be Customized) |
|---|---|---|---|
| Wire: | UL4413 26AWG XLPE 150°C Irradiated Wire | Operating Temperature Range: | -40℃~125℃ |
| Probe: | Stainless Steel Probe | Application: | Electric Kettle, Electric Water Heater, Other Small Home Appliances |
| ODM/OEM: | Supportive | Customization: | Available |
| High Light: | 26AWG Wire ntc probe sensor,UL4413 ntc probe sensor,Epoxy Resin ntc temp probe |
||
Epoxy Resin UL4413 26AWG Wire NTC Probe Sensor For Small Home Appliances
Brief Instruction (Product Description):
Epoxy Resin UL4413 26AWG Wire NTC Probe Sensor For Small Home Appliances is generally used in electric kettles and other small home appliances. The probe of the product is stainless steel, the wire is UL4413 26AWG XLPE 150°C irradiated wire, and the resistance parameters are generally 50KΩ, 100KΩ, B25/50=3950K (can also be customized according to customers’ requirements), Using epoxy resin encapsulation, the wire tail can be equipped with corresponding connectors (PH-2Y) according to customers’ requirements.
Features:
Comply with RoHS standard
Operating temperature range: -40℃~125℃
Easy to install
Stable
Stainless steel probe
Application:
Electric kettle, electric water heater, and other small home appliances.
Structure and Dimensions:(unit: mm)
| NO. | Name | Components | QTY. | Remarks |
| 1 | Chip | NTC Chip | 1 | / |
| 2 | Encapsulation | Epoxy resin | 1 | / |
| 3 | Probe | SUS 304 | 1 | / |
| 4 | Wire | UL4413 26AWG 150℃ | 1 | / |
| 5 | Connector | PH-2y | 1 | / |
Electrical Specification:
| Rec. at 25℃(kΩ) | Beta value | (In air) Pmax(mW) | δ(mW/℃) | thermal time constant τ(sec.) | Operating Temperature Range TL-TH(℃) | Total length L(mm) |
| 1 | B25/85=3435 | Approx.60 | / | / | -20℃~105℃(PVC wire)& -40℃~125℃( or XLPE wire) | 100~5000 |
| 1.5 | B25/50=3850 | |||||
| 1.5 | B25/50=3935 | |||||
| 2 | B25/85=3550 | |||||
| 2 | B25/85=3935 | |||||
| 2.08 | B25/85=3580 | |||||
| 2.2 | B25/50=3935 | |||||
| 3 | B25/50=3950 | |||||
| 5 | B25/50=3470 | |||||
| 5 | B25/50=3950 | |||||
| 8 | B25/100=3988 | |||||
| 10 | B25/85=3435 | |||||
| 10 | B25/50=3470 | |||||
| 10 | B25/50=3935 | |||||
| 10 | B25/50=3950 | |||||
| 20 | B25/50=3950 | |||||
| 47 | B25/50=3950 | |||||
| 50 | B25/50=3950 | |||||
| 50 | B25/50=4200 | |||||
| 100 | B25/50=4200 | |||||
| 200 | B25/50=4200 | |||||
| 500 | B25/50=4450 | |||||
| 1000 | B25/85=4600 |

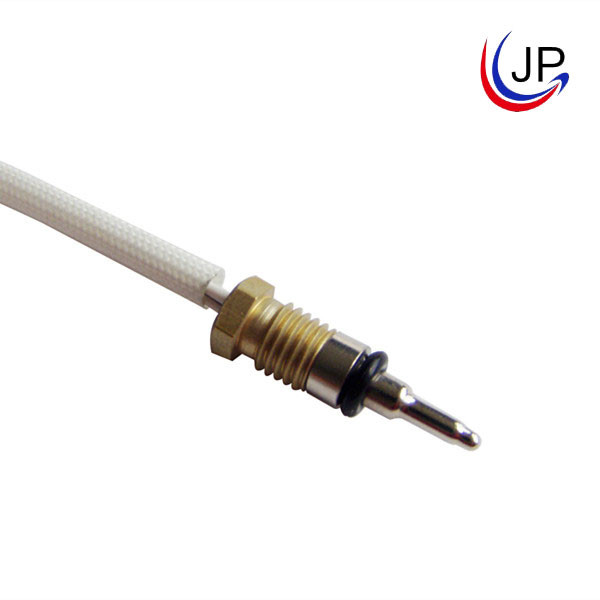

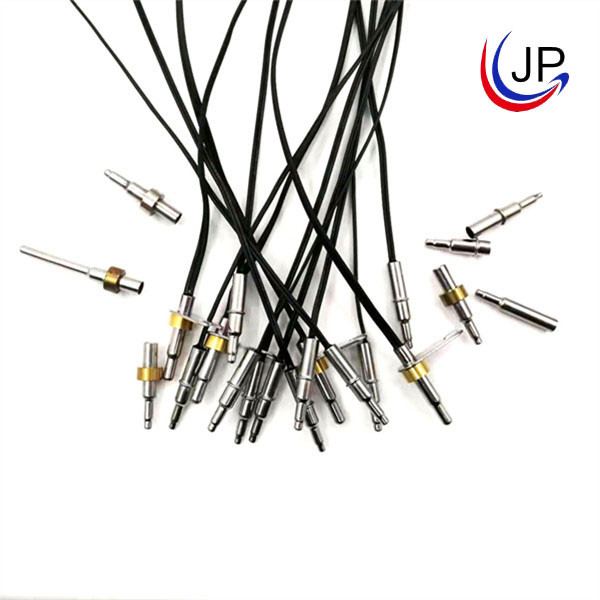

Other Product Images:
