| Place of Origin: | Anhui, China |
|---|---|
| Brand Name: | JP SENSOR |
| Certification: | CE, ISO13485, ISO9001, RoHS |
| Model Number: | MFP-6B |
| Minimum Order Quantity: | 1000 Pieces |
| Price: | Negotiable |
| Packaging Details: | Carton Packing |
| Delivery Time: | 2 Weeks |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 200 Million per Year |
| Resistance: | R25°C=100KΩ | B Value: | B25/50=3950K |
|---|---|---|---|
| Encapsulation: | Epoxy Resin | Operating Temperature Range: | -40℃~125℃ |
| Probe: | Stainless Steel | Application: | Electric Kettle And Small Home Appliances |
| OEM/ODM: | Available | ||
| High Light: | Electric Kettle ntc probe sensor,ntc probe sensor Home Appliances,Epoxy Resin temperature wire sensor |
||
Electric Kettle NTC Probe Sensor Small Home Appliances Epoxy Resin Encapsulated
Brief Introduction:
This product is generally used in electric kettles and other small home appliances. The probe of the product is stainless steel, the wire is a high-temperature resistance wire with a temperature resistance of 200°C, and the parameters are R25°C=100KΩ, B25/50=3950K (can also be customized according to customers’ requirements), using epoxy resin encapsulation, the wire tail can be equipped with corresponding connectors according to customer requirements.
Features:
Comply with RoHS standard
Operating temperature range: -40℃~125℃
Easy to install
High performance
Stainless steel probe
Application:
Electric kettle and small home appliances
Structure and Dimensions:(unit: mm)
| NO. | Name | Material Specification | QTY. | Remarks |
| 1 | Chip | NTC Chip | 1 | / |
| 2 | Encapsulation | Epoxy resin | 1 | / |
| 3 | Probe | SUS Probe | 1 | / |
| 4 | Wire | 26AWG 200℃ | 1 | / |
Electrical Specification:
| Rec. at 25℃(kΩ) | Beta value | (In air)Pmax(mW) | δ(mW/℃) | thermal time constant τ(sec.) | Operating Temperature Range TL-TH(℃) | Total length L(mm) |
| 1 | B25/85=3435 | Approx.60 | / | / | -20℃~105℃(PVC wire)& -40℃~125℃( or XLPE wire) | 100~5000 |
| 1.5 | B25/50=3850 | |||||
| 1.5 | B25/50=3935 | |||||
| 2 | B25/85=3550 | |||||
| 2 | B25/85=3935 | |||||
| 2.08 | B25/85=3580 | |||||
| 2.2 | B25/50=3935 | |||||
| 3 | B25/50=3950 | |||||
| 5 | B25/50=3470 | |||||
| 5 | B25/50=3950 | |||||
| 8 | B25/100=3988 | |||||
| 10 | B25/85=3435 | |||||
| 10 | B25/50=3470 | |||||
| 10 | B25/50=3935 | |||||
| 10 | B25/50=3950 | |||||
| 20 | B25/50=3950 | |||||
| 47 | B25/50=3950 | |||||
| 50 | B25/50=3950 | |||||
| 50 | B25/50=4200 | |||||
| 100 | B25/50=4200 | |||||
| 200 | B25/50=4200 | |||||
| 500 | B25/50=4450 | |||||
| 1000 | B25/85=4600 |

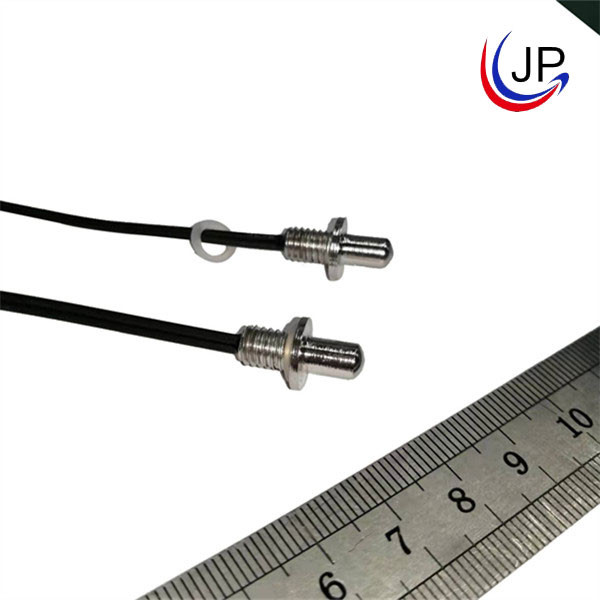

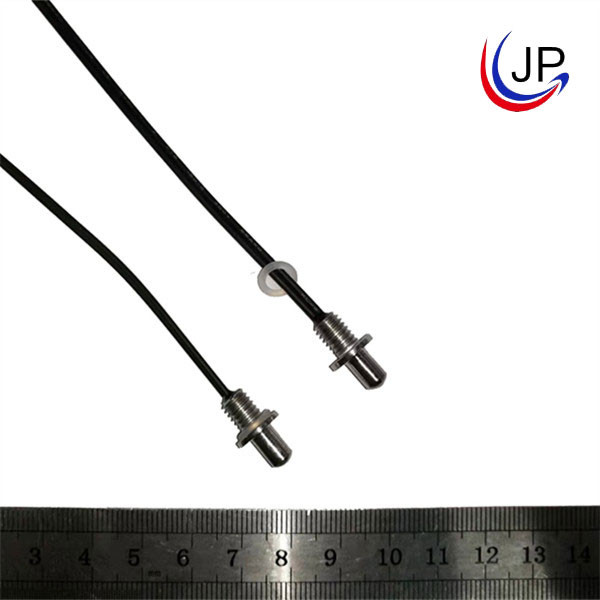

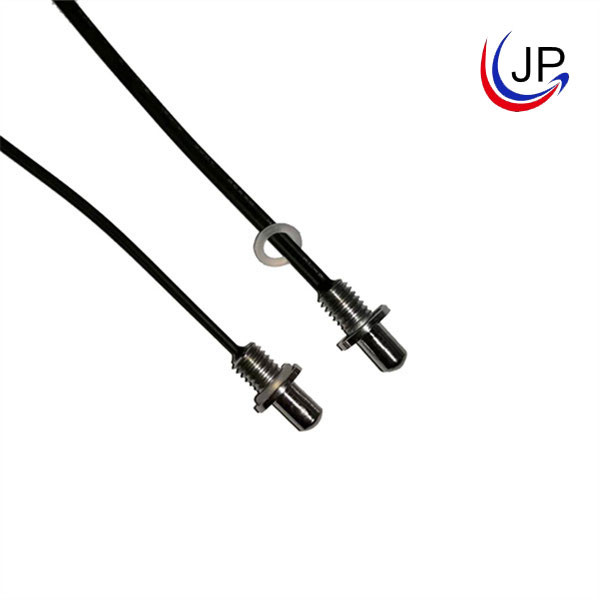

Other Product Images:
