| Resistance Value: | R100=3.3KΩ | B Value: | B0/100=3970K |
|---|---|---|---|
| Voltage Withstanding Value: | 1500V/1sec/1mA | Operation Temperature Range: | -40℃~200℃ |
| Feature: | Oil-proof | ODM/OEM: | Available |
| Custom: | Y | Warranty: | Two Years |
| Highlight: | B0/100 R100 NTC Temperature Sensor,ntc probe sensors B0/100,B0/100 ntc probe sensors |
||

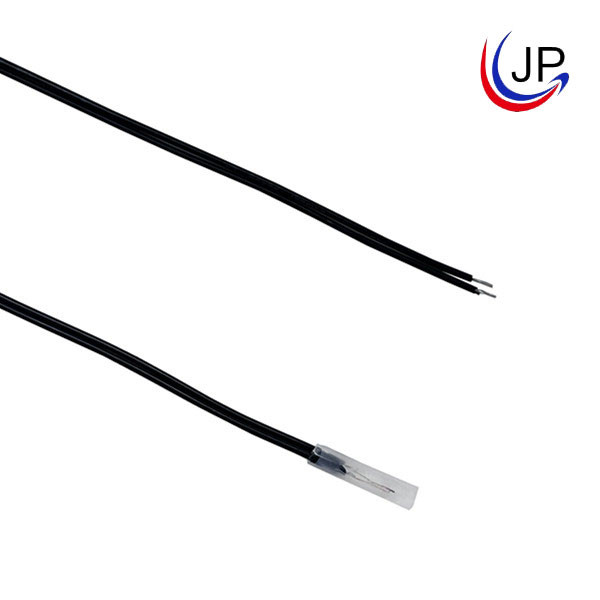

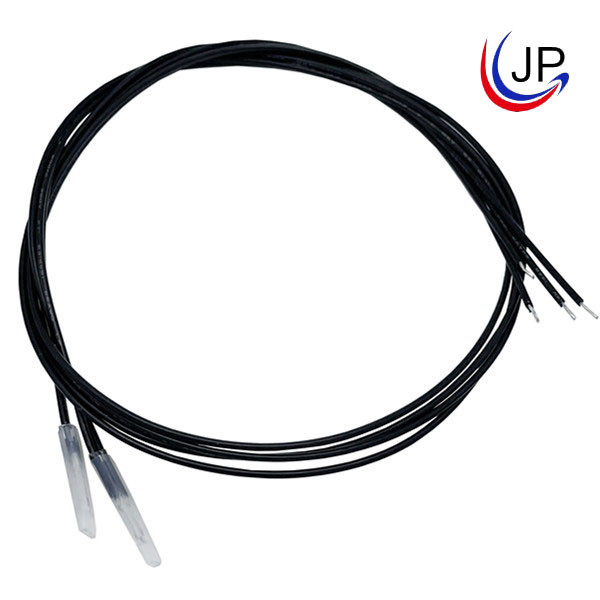

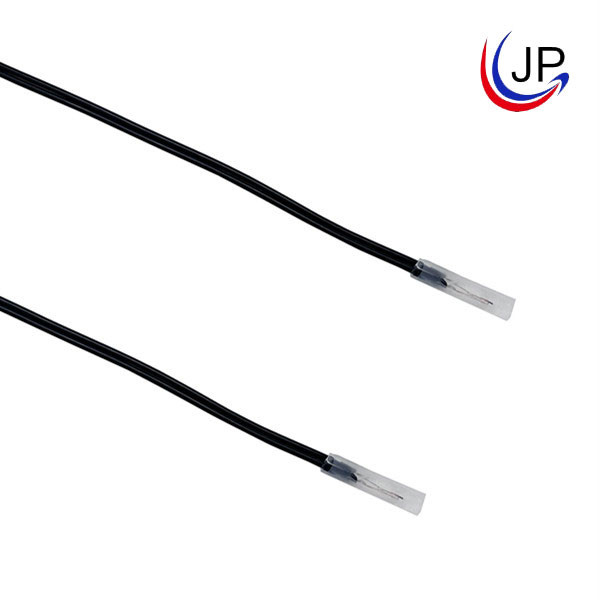

R100 3.3KΩ B0/100 3970K NTC Temperature Sensor For Electric Motor Of HEV EV
Brief Introduction:
The electric motor temperature sensors are designed for temperature monitoring in electric vehicles. The temperature sensor NTC thermistor is polycrystalline mixed oxide ceramics made MF57 type glass bead NTC thermistor soldered with UL 1332 insulated wire 24AWG. Most temperature probe housings are rectangular tubes. Its parameters: R100=3.3KΩ, B0/100=3970K, voltage withstanding 1500V/1sec/1mA.
Features:
RoHS compliant
High temperature resistant
Oil-proof
Operating temperature range: -40℃~200℃
AC 1500V 1mA 1S
R100=3.3KΩ, B0/100=3970K
Application:
The motor in Electric vehicles (EV)
The motor in Hybrid electric vehicles
Temperature measurement and temperature monitoring
Structure and Dimensions:
| Symbol | A | B | C | D | L1 | L2 |
| RNB5.5-5 dimension (mm) | 3.5 | 15 | 2.0 | 2.3 | 500 | 3 |
| NO. | Name | Material Specification | QTY. | Remarks |
| 1 | Thermistor | NTC Glass thermistor | 1 | -- |
| 2 | Probe | tube (rectangular) | 1 | / |
| 3 | Wire | UL1332 24AWG wire 200℃ | 1 | Black |
| 4 | Stripping | tinned | 2 |
Electrical Specification:
| Rec.at 25℃(KΩ) | Beta value | (In air) Pmax(mW) |
δ (mW/℃) |
Thermal time constant τ(sec.) | Operating Temperature Range TL-TH(℃) | Total length L(mm) |
| 2 | B25/85=3470 | Approx.20 | Approx.0.75 | Max.10 | -40~300 | 50 |
| 2 | B25/85=3977 | |||||
| 5 | B25/85=3950 | |||||
| 10 | B25/85=3435 | |||||
| 10 | B25/50=3950 | |||||
| 50 | B25/50=3950 | |||||
| 100 | B25/50=3950 | |||||
| 100 | B25/85=4132 | |||||
| 100 | B25/50=4200 |
