| Place of Origin: | Anhui, China |
|---|---|
| Brand Name: | JP SENSOR |
| Certification: | ISO9001, RoHS |
| Model Number: | MF5A-1 |
| Minimum Order Quantity: | 500 Pieces |
| Price: | Negotiable |
| Packaging Details: | Carton Packing |
| Delivery Time: | 2 Weeks |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 200 Million per Year |
| Resistance: | 0.3kΩ To 2000kΩ | Beta Value: | 2500K To 4500K |
|---|---|---|---|
| Operating Temperature Rang: | -20℃~105℃(PVC) | Operating Temperature Range: | -40℃~150℃() |
| Application: | Industrial Intelligent Controller | OEM/ODM: | Available |
| Chip: | NTC Chip | Probe: | SUSφ5*200mm |
| High Light: | jingpu B25/50 NTC Temperature Sensor,jingpu R25 NTC Temperature Sensor,jingpu 3950K ntc thermistor temperature sensor |
||

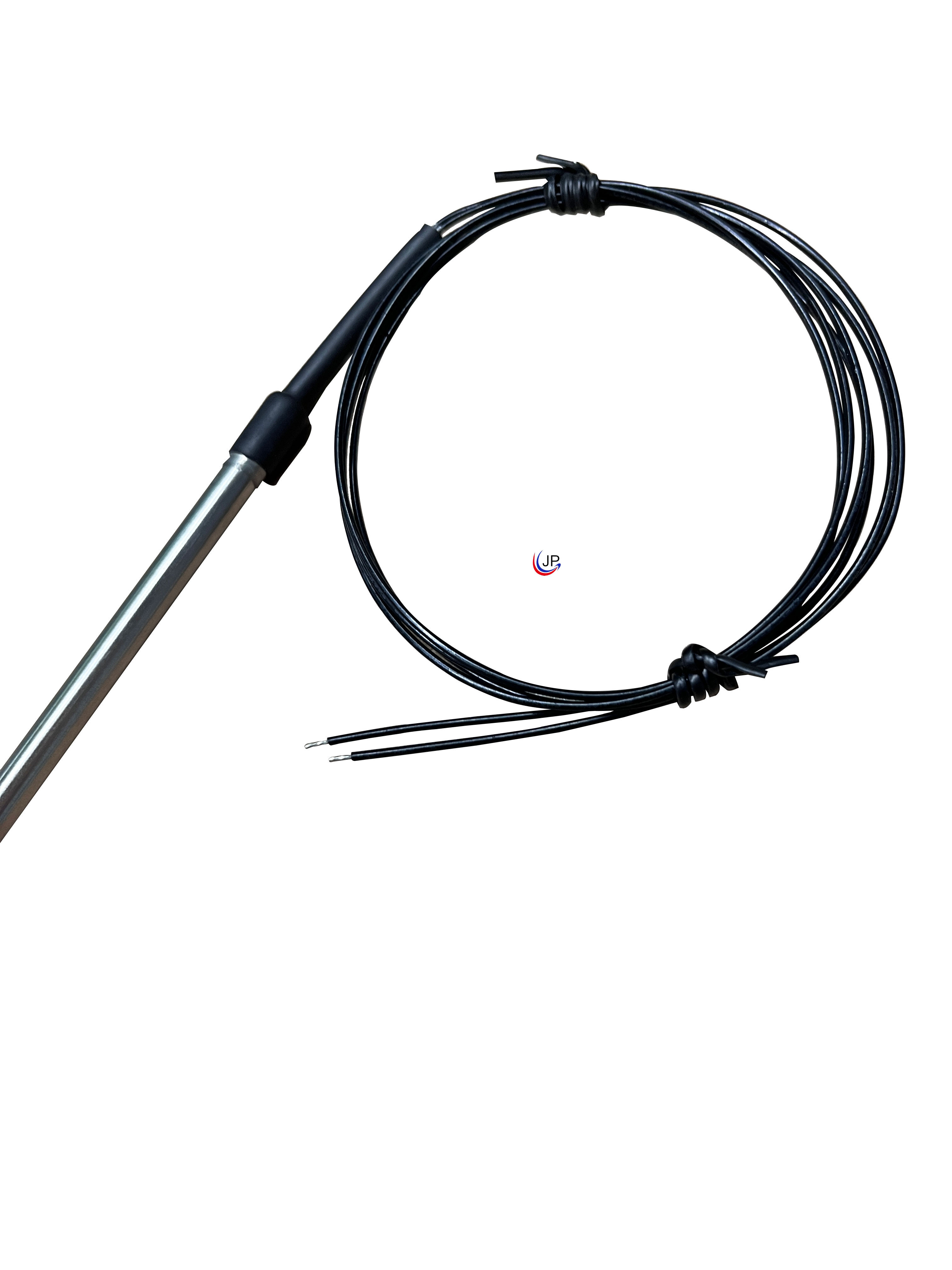

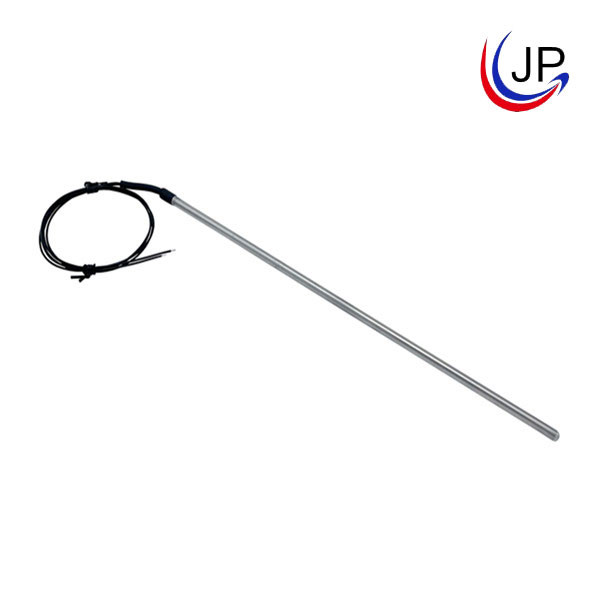

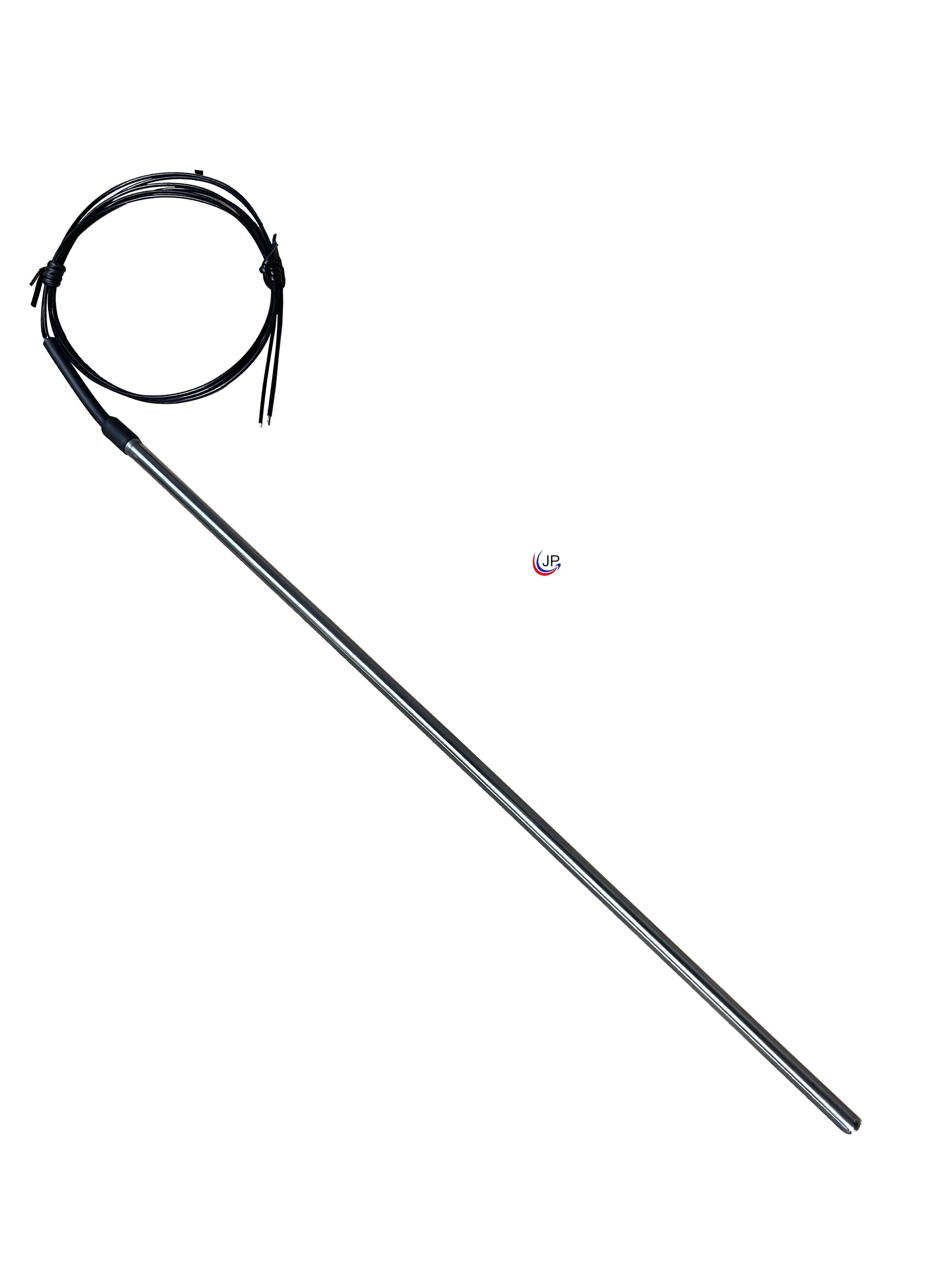

R25 10K B25/50 NTC Temperature Sensor 3950K Stainless Steel Cylindrical Housing
Brief Introduction:
It consists of lead wires (PVC insulated wire, insulated wire, XLPE insulated wire), an NTC resistor, and cylindrical housing ( stainless steel tube, copper tube, and plastic housing), and a connector. R25=10KΩ±1%, B25/50=3950k±1%(The optional resistance value range is from 0.3KΩ to 2000kΩ, and the beta value range is from 2500K to 4500K).
Features:
Comply with RoHS standard
PVC insulated lead wires series Operating temperature range: -20℃~105℃
insulated lead wires series Operating temperature range: -40℃~150℃
SUSφ5*200mm
Application:
Industrial intelligent controller
Structure and Dimensions:
Electrical Specification:
| Rec. at 25℃(kΩ) | Beta value | (In air) Pmax(mW) | δ(mW/℃) | thermal time constant τ(sec.) | Operating Temperature Range TL-TH(℃) | Total length L(mm) |
| 1 | B25/85=3435 | Approx.60 | / | / | -20℃~105℃(PVC wire)& -40℃~125℃( or XLPE wire) | 100~5000 |
| 1.5 | B25/50=3850 | |||||
| 1.5 | B25/50=3935 | |||||
| 2 | B25/85=3550 | |||||
| 2 | B25/85=3935 | |||||
| 2.08 | B25/85=3580 | |||||
| 2.2 | B25/50=3935 | |||||
| 3 | B25/50=3950 | |||||
| 5 | B25/50=3470 | |||||
| 5 | B25/50=3950 | |||||
| 8 | B25/100=3988 | |||||
| 10 | B25/85=3435 | |||||
| 10 | B25/50=3470 | |||||
| 10 | B25/50=3935 | |||||
| 10 | B25/50=3950 | |||||
| 20 | B25/50=3950 | |||||
| 47 | B25/50=3950 | |||||
| 50 | B25/50=3950 | |||||
| 50 | B25/50=4200 | |||||
| 100 | B25/50=4200 | |||||
| 200 | B25/50=4200 | |||||
| 500 | B25/50=4450 | |||||
| 1000 | B25/85=4600 |
