| Place of Origin: | Anhui, China |
|---|---|
| Brand Name: | JP SENSOR |
| Certification: | ISO9001, RoHS |
| Model Number: | MFP |
| Minimum Order Quantity: | 1000 Pieces |
| Price: | Negotiable |
| Packaging Details: | Carton Packing |
| Delivery Time: | 2 Weeks |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 200 Million per Year |
| Resistance: | R0℃=4.852KΩ | B Value: | B25/50=3950K |
|---|---|---|---|
| Operating Temperature Range: | -40℃~105℃ | Application: | AC In Vehicles And Evaporator |
| Chip: | NTC Thermistor | Probe: | Aluminum Probe |
| Encapsulation: | Epoxy Resin | Cable: | PVC 24AGW 105 ℃ |
| High Light: | jingpu 3950k NTC Temperature Sensor,jingpu 4.852K NTC Temperature Sensor,4.852K NTC Temperature Sensor jingpu |
||

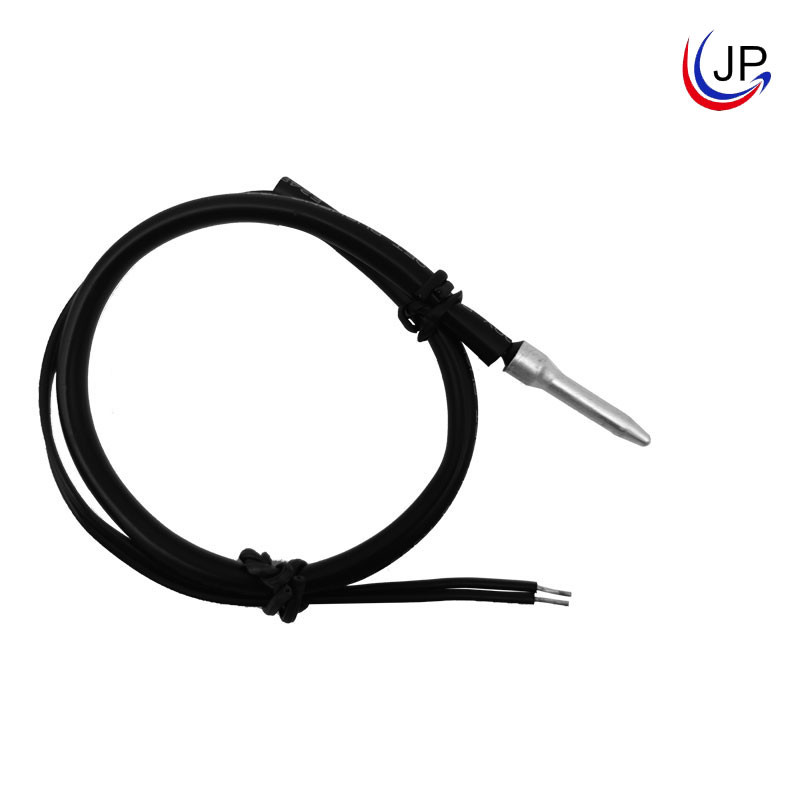

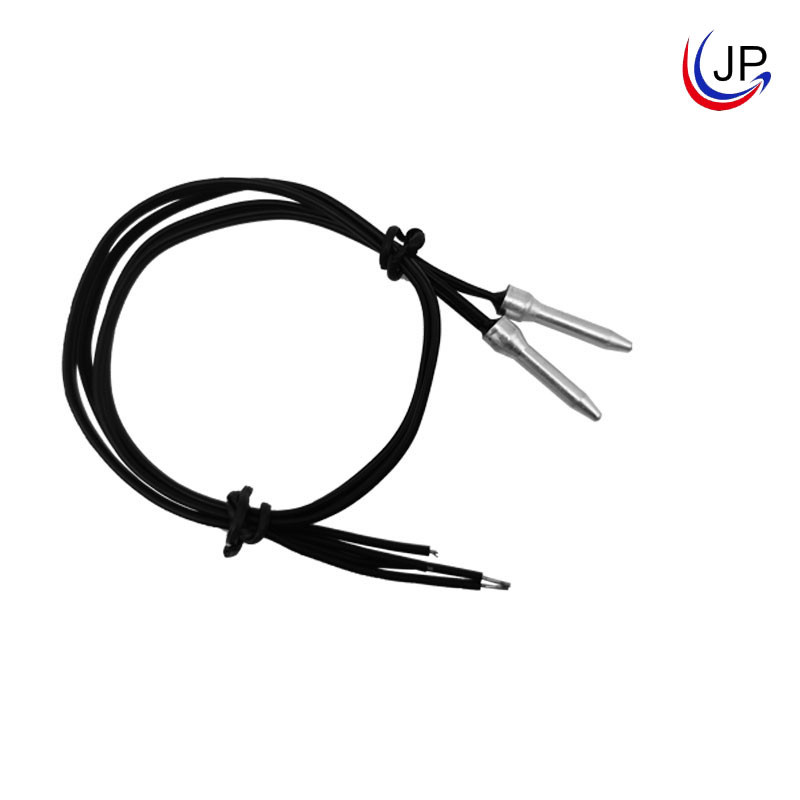

4.852K 3950k NTC Temperature Sensor For AC Vehicle And Evaporator
Brief Instruction (Product Description):

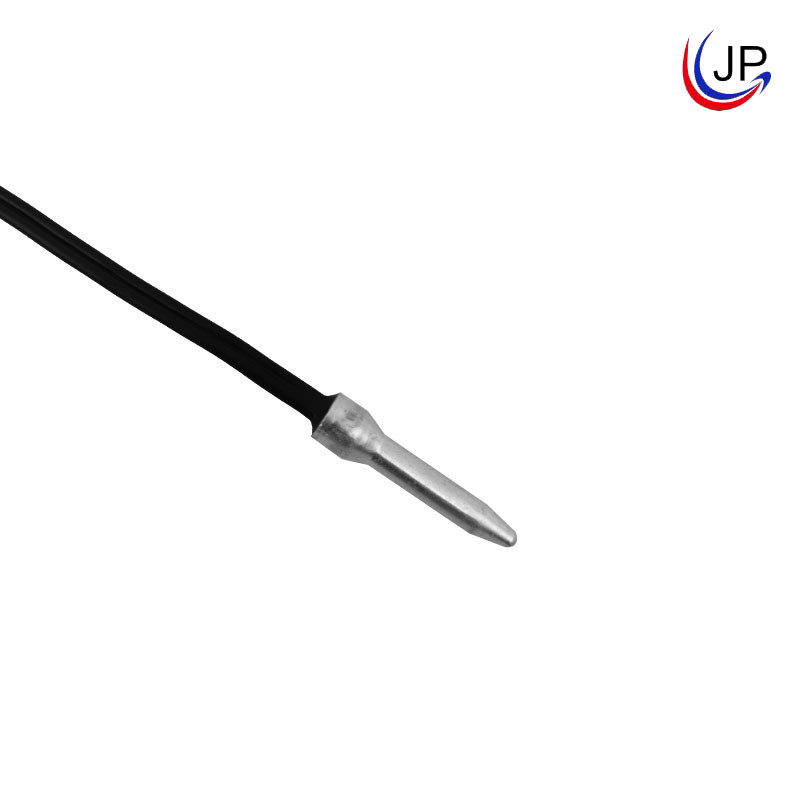

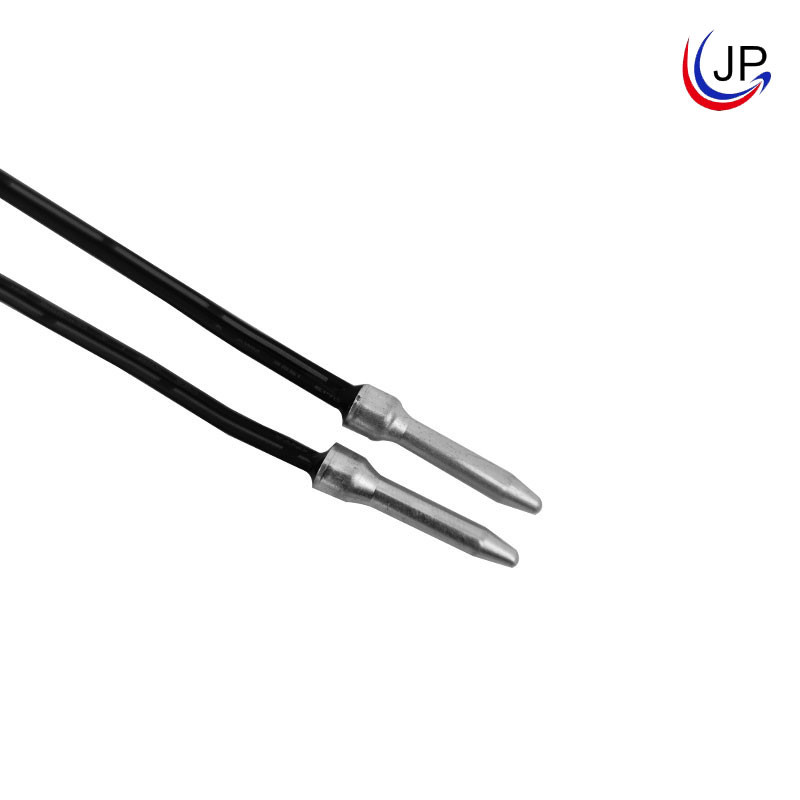

This product is mainly used for the temperature measurement of AC in vehicles and evaporators, of which the resistance is generally R0℃=4.852KΩ, B25/50=3950K (Can be customized), its probe is an aluminum shell. It can add a cable extension connector if the customer requires it.
Features:
Comply with RoHS standard
Operating temperature range: -40℃~105℃
Easy to install
Stable
Fast Response
Application:
AC in vehicles and evaporator
Structure and Dimensions:(unit: mm)
Electrical Specification:
| Rec. at 25℃(kΩ) | Beta value | (In air) Pmax(mW) | δ(mW/℃) | Thermal time constant τ(sec.) | Operating Temperature Range TL-TH(℃) | Total length L(mm) |
| 1 | B25/85=3435 | Approx.60 | Max.3.0 | Max.20 | -40℃~125℃ | 8~100 |
| 1.5 | B25/50=3850 | |||||
| 1.5 | B25/50=3935 | |||||
| 2 | B25/85=3550 | |||||
| 2 | B25/85=3935 | |||||
| 2.08 | B25/85=3580 | |||||
| 2.2 | B25/50=3935 | |||||
| 3 | B25/50=3950 | |||||
| 5 | B25/50=3470 | |||||
| 5 | B25/50=3950 | |||||
| 8 | B25/100=3988 | |||||
| 10 | B25/85=3435 | |||||
| 10 | B25/50=3470 | |||||
| 10 | B25/50=3935 | |||||
| 10 | B25/50=3950 | |||||
| 20 | B25/50=3950 | |||||
| 47 | B25/50=3950 | |||||
| 50 | B25/50=3950 | |||||
| 50 | B25/50=4200 | |||||
| 100 | B25/50=4200 | |||||
| 200 | B25/50=4200 | |||||
| 500 | B25/50=4450 | |||||
| 1000 | B25/85=4600 |
