| Place of Origin: | Anhui, China |
|---|---|
| Brand Name: | JP SENSOR |
| Certification: | ISO9001, RoHS |
| Model Number: | MFP-4A |
| Minimum Order Quantity: | 1000 Pieces |
| Price: | Negotiable |
| Packaging Details: | Carton Packing |
| Delivery Time: | 2 Weeks |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 200 Million per Year |
| Encapsulation: | Epoxy Resin | Cable: | Insulated Wire ( Wire、PVC Wire、XLPE Insulated Wire) |
|---|---|---|---|
| Chip: | NTC Chip | Resistance: | Custom |
| B Value: | Custom | Operating Temperature Range: | -20℃~105℃(PVC) |
| High Light: | jingpu Stainless Steel NTC Temperature Sensor,jingpu NTC Temperature Sensor Epoxy Resin,jingpu Flange Type ntc probe temperature sensor |
||

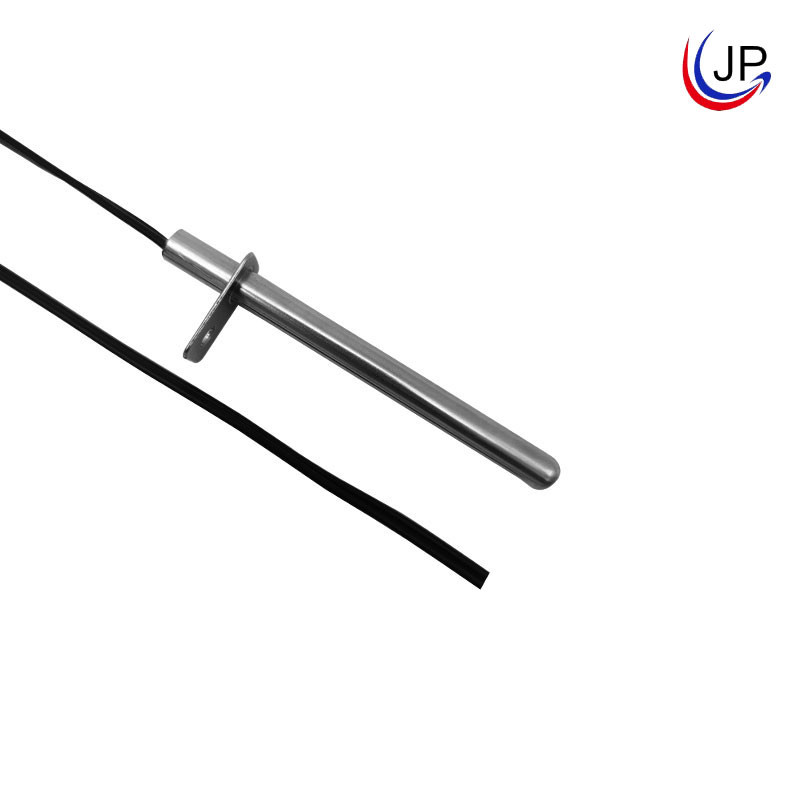

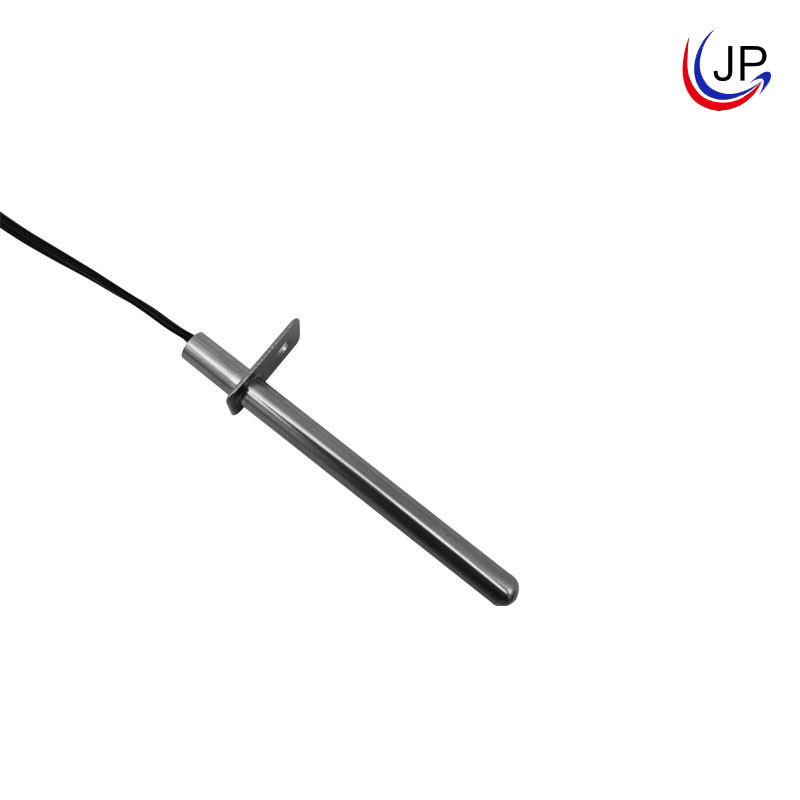

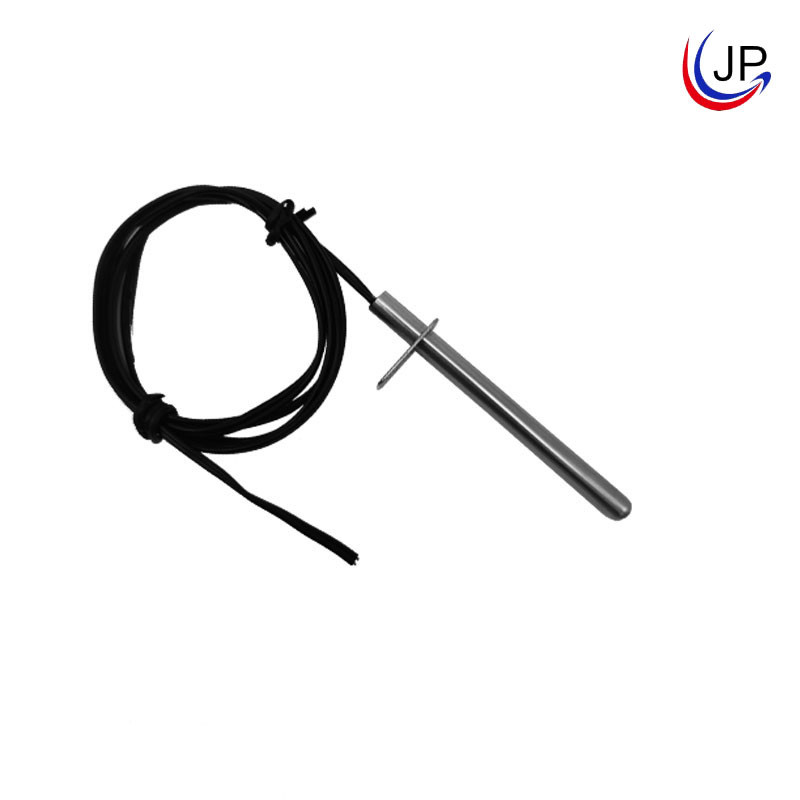

Stainless Steel NTC Temperature Sensor Epoxy Resin Flange Type
Brief Introduction (Product Description):
The flange-type temperature probe applies to home appliances. It consists of the insulated wire ( wire, PVC wire, XLPE insulated wire), NTC chip, epoxy resin, and waterproof stainless steel 304 shells. Resistance and Beta Value can be customized according to the customers’ requirements.
Features:
Comply with RoHS standard
PVC insulated lead wires series Operating temperature range: -20℃~105℃
Good stability and reliability
Easy to install and operate as the sealing can be done according to the environment
Accurate testing can reflect temperature changes precisely.
Application:
Household appliances: Induction cooker, microwave oven, electric kettle, etc.
Structure and Dimensions:(unit: mm)
Electrical Specification:
| Rec. at 25℃(kΩ) | Beta value | (In air) Pmax(mW) | δ(mW/℃) | Thermal time constant τ(sec.) | Operating Temperature Range TL-TH(℃) | Total length L(mm) |
| 1 | B25/85=3435 | Approx.60 | / | / | -20℃~105℃(PVC wire)& -40℃~125℃( or XLPE wire) | 100~5000 |
| 1.5 | B25/50=3850 | |||||
| 1.5 | B25/50=3935 | |||||
| 2 | B25/85=3550 | |||||
| 2 | B25/85=3935 | |||||
| 2.08 | B25/85=3580 | |||||
| 2.2 | B25/50=3935 | |||||
| 3 | B25/50=3950 | |||||
| 5 | B25/50=3470 | |||||
| 5 | B25/50=3950 | |||||
| 8 | B25/100=3988 | |||||
| 10 | B25/85=3435 | |||||
| 10 | B25/50=3470 | |||||
| 10 | B25/50=3935 | |||||
| 10 | B25/50=3950 | |||||
| 20 | B25/50=3950 | |||||
| 47 | B25/50=3950 | |||||
| 50 | B25/50=3950 | |||||
| 50 | B25/50=4200 | |||||
| 100 | B25/50=4200 | |||||
| 200 | B25/50=4200 | |||||
| 500 | B25/50=4450 | |||||
| 1000 | B25/85=4600 |
