| Place of Origin: | Anhui, China |
|---|---|
| Brand Name: | JP SENSOR |
| Certification: | ISO9001, RoHS |
| Model Number: | MFP |
| Minimum Order Quantity: | 1000 Pieces |
| Price: | Negotiable |
| Packaging Details: | Carton Packing |
| Delivery Time: | 2-7days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 200 Million per Year |
| Resistance: | 0.3kΩ To 2000kΩ | Beta Value: | 2500K To 4500K |
|---|---|---|---|
| Wire: | Wire | Chip: | NTC Chip |
| Tube: | Φ3.0 PI Tube | Encapsulation: | Epoxy Resin |
| High Light: | ntc sensor temperature Wire jingpu,jingpu ntc sensor temperature Wire,jingpu Coffee Machine ntc temp probe |
||
Epoxy Resin Encapsulation Wire NTC Temperature Sensor For Coffee Machine
Brief Instruction (Product Description):
It is consist of the insulated wire wire, NTC chip, Φ3.0 PI tube, epoxy resin. The optional resistance value range is 0.3kΩ to 2000kΩ, and beta value range is from 2500K to 4500K.
Features:
Comply with RoHS standard
PVC insulated lead wires series Operating temperature range: -40℃~125℃
Good stability and reliability
Accurate testing can reflect temperature changes precisely.
Application:
Coffee machine
Structure and Dimensions:(unit: mm)
Electrical Specification:
| Rec. at 25℃(kΩ) | Beta value | (In air) Pmax(mW) | δ(mW/℃) | Thermal time constant τ(sec.) | Operating Temperature Range TL-TH(℃) | Total length L(mm) |
| 1 | B25/85=3435 | Approx.60 | Max.3.0 | Max.20 | -40℃~125℃ | 8~100 |
| 1.5 | B25/50=3850 | |||||
| 1.5 | B25/50=3935 | |||||
| 2 | B25/85=3550 | |||||
| 2 | B25/85=3935 | |||||
| 2.08 | B25/85=3580 | |||||
| 2.2 | B25/50=3935 | |||||
| 3 | B25/50=3950 | |||||
| 5 | B25/50=3470 | |||||
| 5 | B25/50=3950 | |||||
| 8 | B25/100=3988 | |||||
| 10 | B25/85=3435 | |||||
| 10 | B25/50=3470 | |||||
| 10 | B25/50=3935 | |||||
| 10 | B25/50=3950 | |||||
| 20 | B25/50=3950 | |||||
| 47 | B25/50=3950 | |||||
| 50 | B25/50=3950 | |||||
| 50 | B25/50=4200 | |||||
| 100 | B25/50=4200 | |||||
| 200 | B25/50=4200 | |||||
| 500 | B25/50=4450 | |||||
| 1000 | B25/85=4600 |

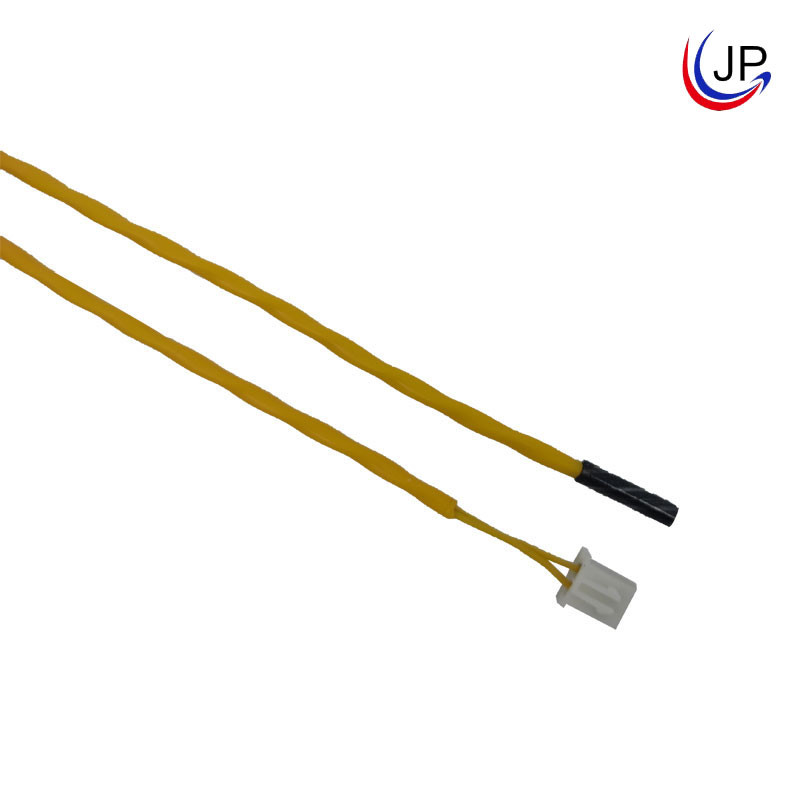

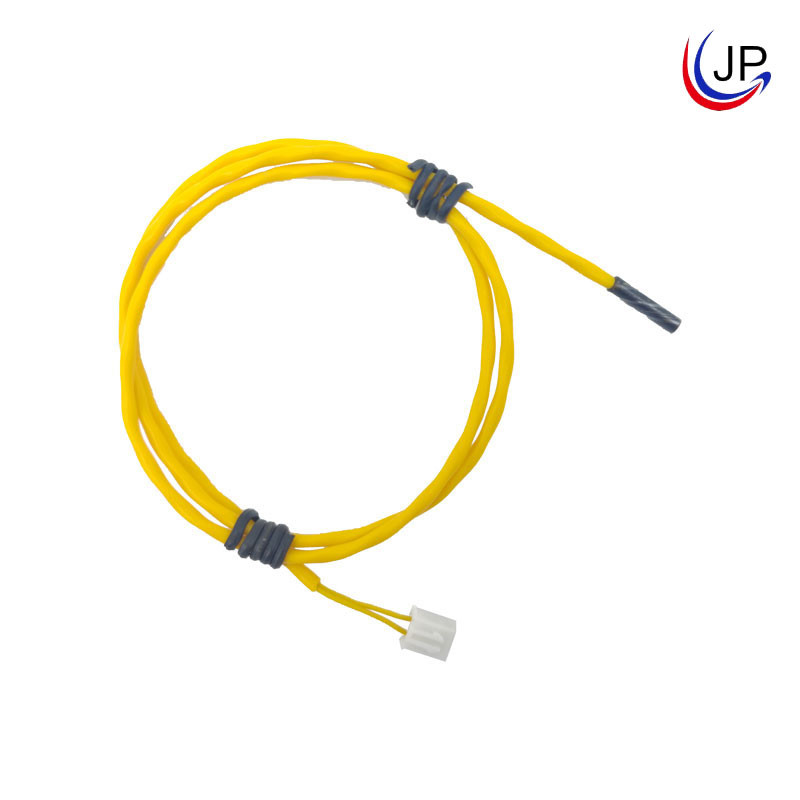

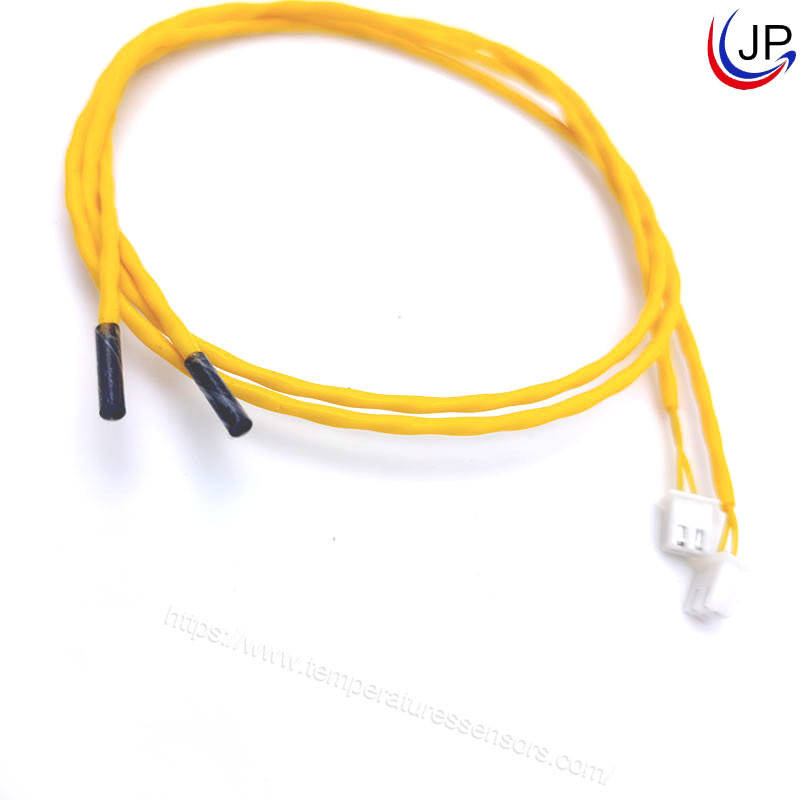

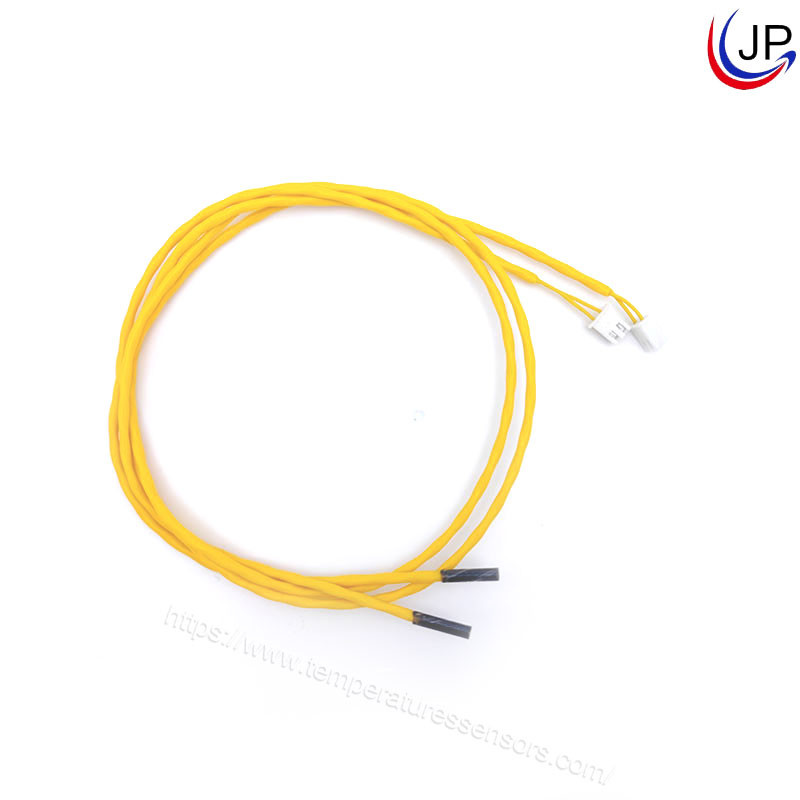

Product Images:
FAQ:
1. What is your MOQ?
Different type of our product has different MOQs, but we will provide you with the best MOQ according to your specific order.
2. Could you please send me free samples?
Of course, samples are available and free except for the express fee. Express like DHL, FedEx, SF express, UPS, EMS, etc are available. You can provide your express account or ask your courier to pick up the product you ordered.
3. What is your delivery time?
The delivery time is about 2-7days after receipt of payment. (Different types of products have different crafts, the exact time shall be consulted in advance.)
4. What is the payment terms?
100% in advance, T/T. (Negotiable)
5. Can you accept OEM&ODM orders?
OEM/ODM is available from us. We accept all types of OEM&ODM orders and cooperations.
