| Place of Origin: | Anhui, China |
|---|---|
| Brand Name: | JINGPU SENSOR |
| Certification: | RoHS, ISO9001 |
| Model Number: | MF5A-6P |
| Minimum Order Quantity: | 10000PCS |
| Price: | Negotiable |
| Packaging Details: | Carton Package |
| Delivery Time: | 2-5Weeks |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 200 Million PCS per Year |
| Resistance: | R25℃=10KΩ±1% | Beta Value: | B25/85=3435K±1% |
|---|---|---|---|
| Probe: | Polyimide Film (3.9±0.2) * （20±1）mm | Wire: | UL1332 26AWG |
| Length: | (100±5)-（3±1）Sn | ||
| High Light: | Polyimide Thin Film Thermistor,Polyimide Film NTC Thermistor,Precision Thin Film NTC Thermistor |
||

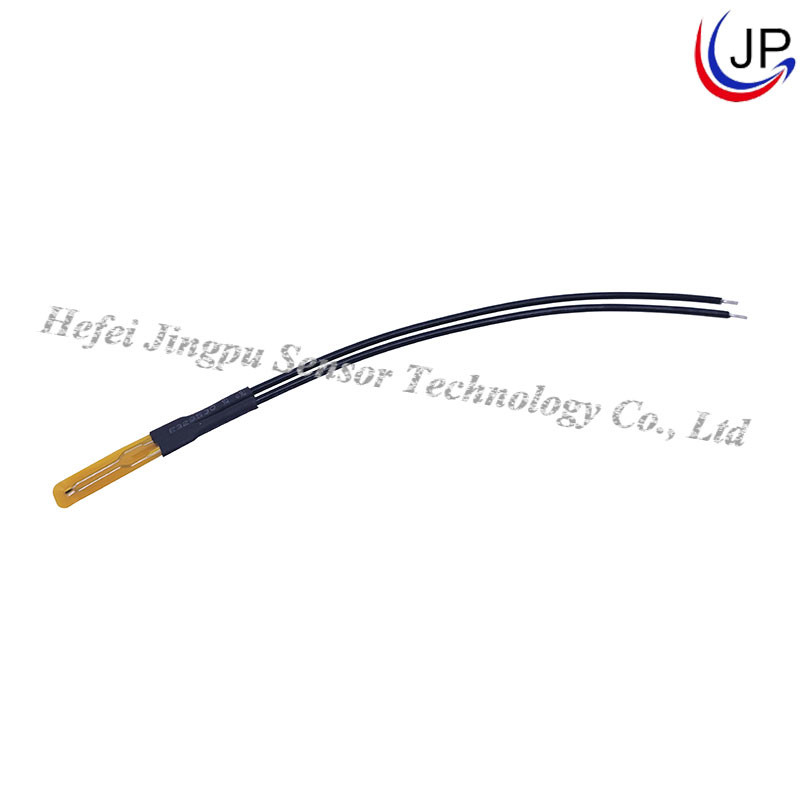

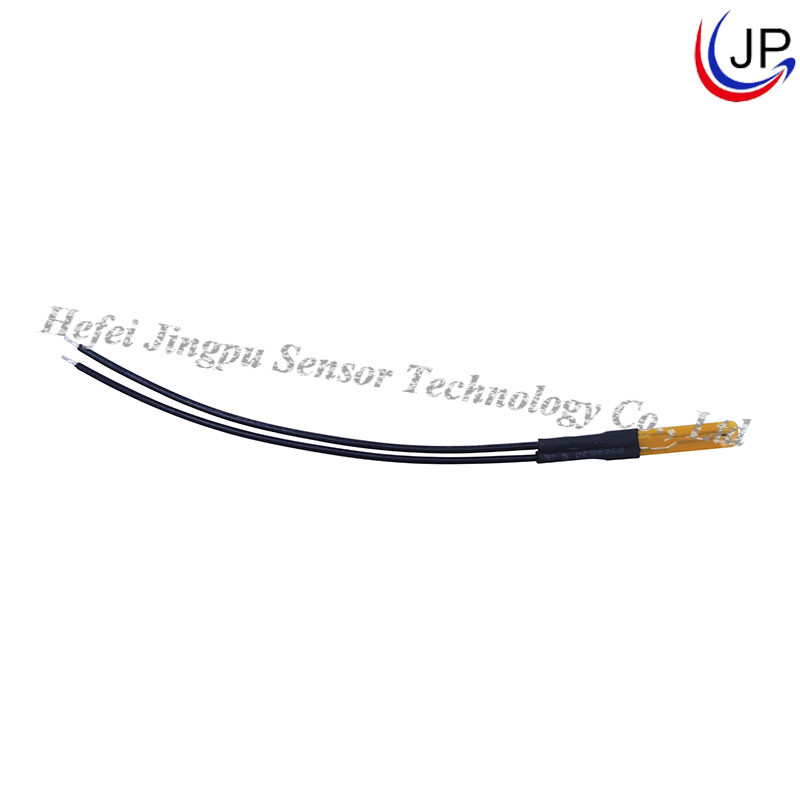

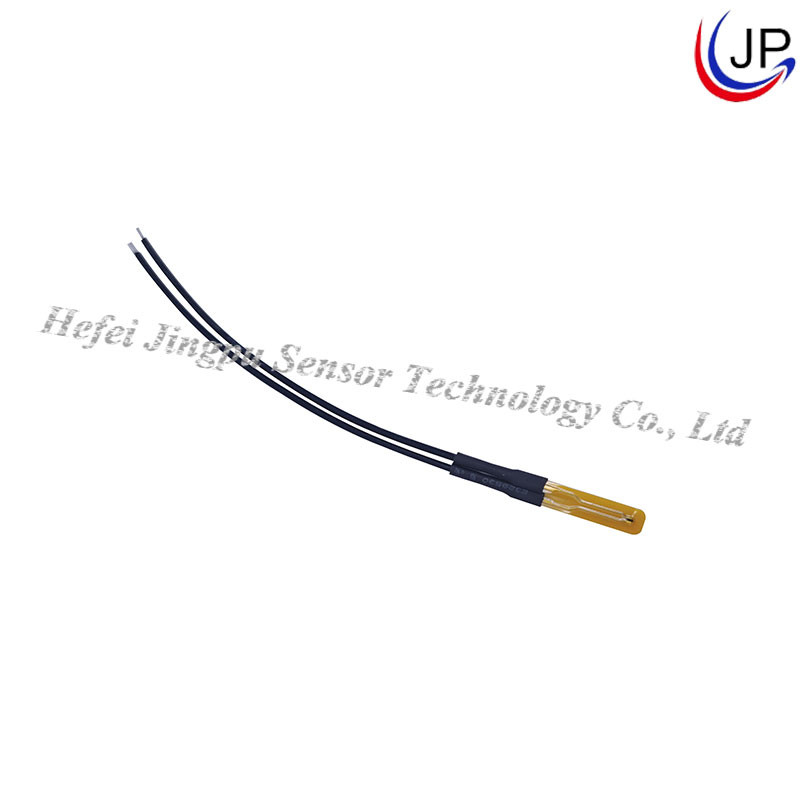

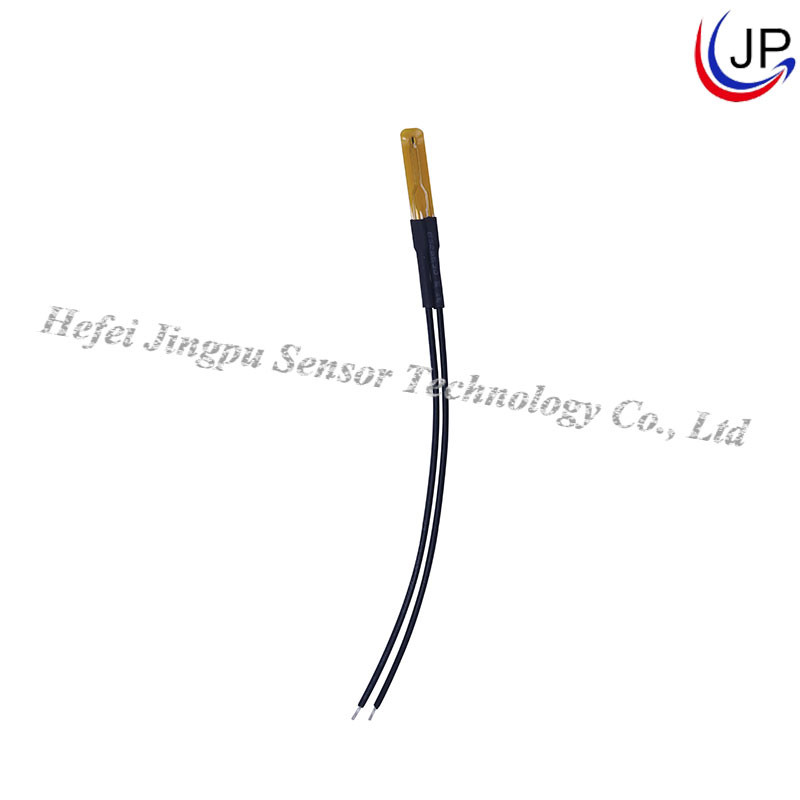

R25=10KΩ±1% B25/85=3435K±1% Polyimide Film NTC Thermistor
Product Description:
The R25=10KΩ±1% B25/85=3435K±1% Polyimide Film NTC Thermistor is a high-quality and precision temperature sensing component that belongs to the family of Negative Temperature Coefficient (NTC) thermistors. Designed with accuracy and reliability in mind, this thermistor offers excellent performance for various temperature monitoring and control applications.
The "R25=10KΩ±1%" specification indicates that at a reference temperature (usually 25°C or 77°F), the thermistor's resistance is approximately 10 kilohms (10,000 ohms), with a tolerance of ±1%. This means that the actual resistance of the thermistor at 25°C can deviate by no more than 1% from the nominal 10KΩ value.
The "B25/85=3435K±1%" parameter characterizes the thermistor's sensitivity to temperature changes over a specific range. The "B" value (B25/85) is 3435K, indicating that the resistance of the thermistor at 25°C is used as a reference point, and the resistance will change by a factor of 3435 as the temperature varies over a wide range from -25°C to 85°C. The tolerance of ±1% means that the actual B value of the thermistor can deviate by no more than 1% from the specified 3435K value.
The thermistor is encapsulated in a Polyimide Film, which provides protection and electrical insulation. The Polyimide Film material is well-suited for applications that require a high-temperature tolerance and excellent thermal stability.
Due to its precise resistance and sensitivity characteristics, this Polyimide Film NTC Thermistor is widely used in temperature measurement and control systems. It is commonly employed in various industries, including automotive, aerospace, medical, and consumer electronics.
With its small size and fast response time, this thermistor is well-suited for applications where space is limited, and real-time temperature monitoring is crucial. It offers engineers and designers a reliable and efficient solution for accurate temperature measurements and control in a wide range of challenging environments.
In conclusion, the R25=10KΩ±1% B25/85=3435K±1% Polyimide Film NTC Thermistor is a high-performance temperature sensing device that combines precision, stability, and versatility. Its excellent accuracy and reliability make it an essential component in countless electronic and industrial applications, ensuring optimal temperature management and system performance.
Properties:
R25℃=10KΩ±1%
B25/85=3435K±1%
Probe: Polyimide film (3.9±0.2)*(20±1)mm
Wire: Wire UL1332 26AWG 7/0.16 OD1.15 200℃
Technical Specification:
| Probe Size | L | L1 | L2 | H | d1 | d2 | d3 |
| 3.6*25mm | 25±1 | 20±1 | 8±1 | 3.6±0.2 | 0.15 | max0.6 | 0.5 |
| 3.6*50mm | 50±1 | 45±1 | 33±1 | 3.6±0.2 | |||
| 4.5*25mm | 25±1 | 20±1 | 8±1 | 4.5±0.2 | |||
| 4.5*50mm | 50±1 | 45±1 | 33±1 | 4.5±0.2 | |||
| 3.9*25mm | 25±1 | 20±1 | 8±1 | 3.9±0.2 |
| Product Specification | Rec. at 25℃(KΩ) | Beta value | (In air) Pmax(mW) |
δ (mW/℃) |
Thermal time constant τ(sec.) | Operating Temperature Range TL-TH(℃) | Total length L(mm) |
| A6A103□3435B□□□□ | 10 | B25/85=3435 | Approx.3.5 | Approx.0.7 | Max.5.0 | -40~100 | 25~50 |
| A6A103□3977B□□□□ | 10 | B25/85=3977 | 25~50 | ||||
| A6B203□3972B□□□□ | 20 | B25/85=3972 | 25~50 | ||||
| A6B104□3435B□□□□ | 100 | B25/50=3950 | 25~50 |
Application:
This product is used for the temperature monitoring of Granary.
Granary temperature sensor
