| Place of Origin: | Hefei, Anhui, China |
|---|---|
| Brand Name: | Jingpu Brand |
| Certification: | CE,ROHS,ISO |
| Model Number: | MF5A-6B |
| Minimum Order Quantity: | 1000 |
| Price: | USD 0.01-0.5 /PCS |
| Packaging Details: | Carton packing |
| Delivery Time: | 2-7days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 200 Million per Year |
| Way To Install: | Inserting | Sensing Way: | Resistence |
|---|---|---|---|
| Output Signal Type: | Analog Type | Material: | Epoxy And Metal |
| Measuring The Dielectric: | Temperature | IP Code: | IP64 |
| Transport Package: | Carton Packing | Appearance: | Thin Film Type |
| Warranty: | 12~24 Months | After-sale Service: | Quality Assurance |
| Customization: | Yes | Operating Temperature: | -40 °C~100 °C |
| Resistence Value: | Custom | B Value: | Custom |
| Shipping: | Shipping, Air, Or Express | Wire: | PVC/XPLE/FEP/PTFE |
| High Light: | Film Type Ntc Thermistor,Ntc Thermistor 10k For Printers,Ntc Thermistor 10k For Photocopiers |
||

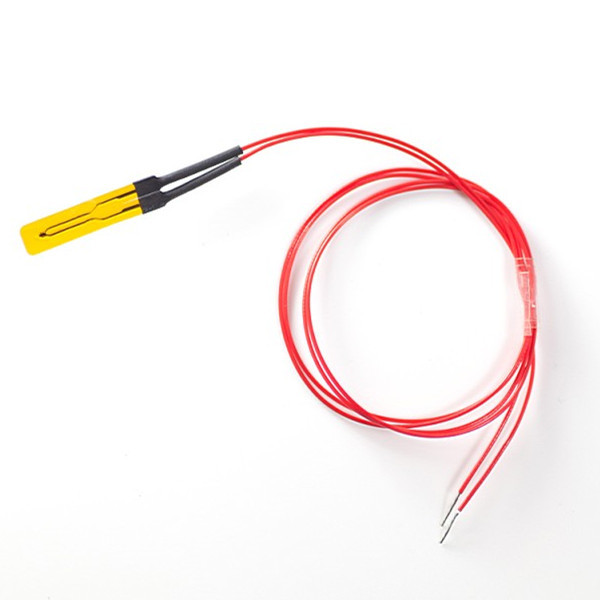

Film Type Ntc Thermistor For Printers And Photocopiers Quality Thermistor 10k
Brief Instruction:

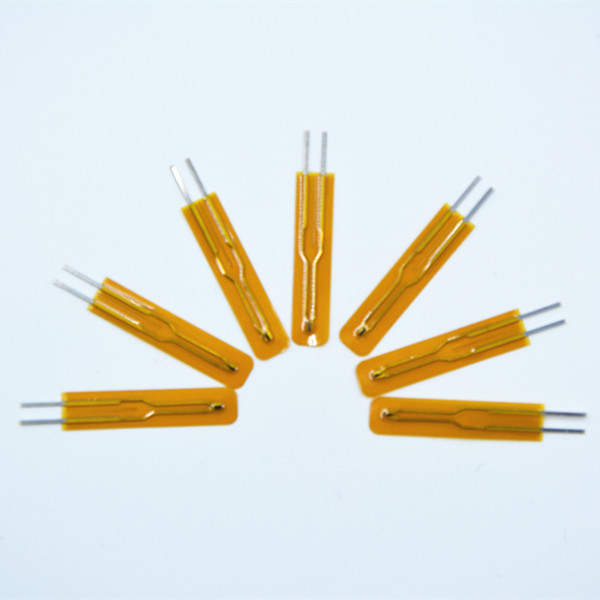

MF5A-6B Thin film NTC thermistor for printers and copiers with expandable wiring. The maximum total thickness of thermistor is 0.6mm. The film is available in 4.5mm and 3.6mm widths. Product resistance parameters of this size are 10kω 3435K, 10Kω 3977K.
Features:
Thin film type,
Fast response time
Operating temperature range :-40 °C to 100 °C
This size is widely used
The accuracy of optional resistance values is ±1%, ±2%, ±3%, ±5%
Scope of application:
Temperature measurement and control for home air conditioning, automobile air conditioning, refrigerator, freezer, water heater, water dispenser, heater, dishwasher, disinfection cabinet, washing machine, dryer, dryer and low temperature drying oven, thermostat ,home appliances, computers, printers, battery packsand other occasions
