| Place of Origin: | Hefei, Anhui, China |
|---|---|
| Brand Name: | Jingpu Brand |
| Certification: | CE,ROHS,ISO9001,ISO13485,UL |
| Model Number: | MF5A-6 |
| Minimum Order Quantity: | 1000 |
| Price: | USD 0.1-5 /PCS |
| Packaging Details: | Carton packing |
| Delivery Time: | 2-7days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 200 Million per Year |
| Way To Install: | Inserting | Sensing Way: | Resistence |
|---|---|---|---|
| Output Signal Type: | Analog Type | Material: | Ceramics |
| Measuring The Dielectric: | Temperature | IP Code: | IP64 |
| Transport Package: | Carton Packing | Appearance: | Yellow |
| Warranty: | 2 Years | After-sale Service: | Quality Assurance |
| Chip: | NTC Thermistor | Customization: | Yes |
| Operating Temperature: | Normal Or Low Temperature | Resistence Value: | Custom |
| B Value: | Custom | Shipping: | Shipping, Air, Or Express |
| Wire: | PVC, , Enamel Insulation | Free Sample: | Yes |
| High Light: | Width 3.6mm Ntc Thermistor Temperature Sensor,Overall Length 50mm Ntc Temp Sensor,Film Type Ntc Temp Sensor |
||
Film Type Ntc Thermistor Temperature Sensor Width 3.6mm Overall Length 50mm
Brief Instruction:
The width of the MF5A-6 Film Type NTC Thermistor is 3.6mm, total length of 50mm, the total thickness of the product is Max 0.6mm, this size of product resistance parameters are 10K ω 3435K,10K ω 3977K,100K ω 4200K.
Features:
Thin film type
Operating temperature range: -40℃~100℃
Film width 3.6mm, total length 50mm
Insulated film package, high thermal sensitivity and high speed
Good stability and high reliability
Good insulation
High precision of resistance value
Small size, light weight, strong structure, easy to automate installation
Application:
Home appliances, computer, printer, battery pack,computer CPU cooling fan, and so on
Part Number Code:
Structure and Dimensions:
Note: The size can be made :18MM,25MM,50MM,75MM(customized according to customer requirements)
Electrical specification:
| Product Specification | Rec.at 25℃(KΩ) | Beta value | (In air) Pmax(mW) |
δ (mW/℃) |
thermaltime constant τ(sec.) | Operating Temperature Range TL-TH(℃) | Total length L(mm) |
| A6A103□3435B□□□□ | 10 | B25/85=3435 | Approx.3.5 | Approx.0.7 | Max.5.0 | -40~100 | 25~50 |
| A6A103□3977B□□□□ | 10 | B25/85=3977 | 25~50 | ||||
| A6B203□3972B□□□□ | 20 | B25/85=3972 | 25~50 | ||||
| A6B104□3435B□□□□ | 100 | B25/50=3950 | 25~50 | ||||

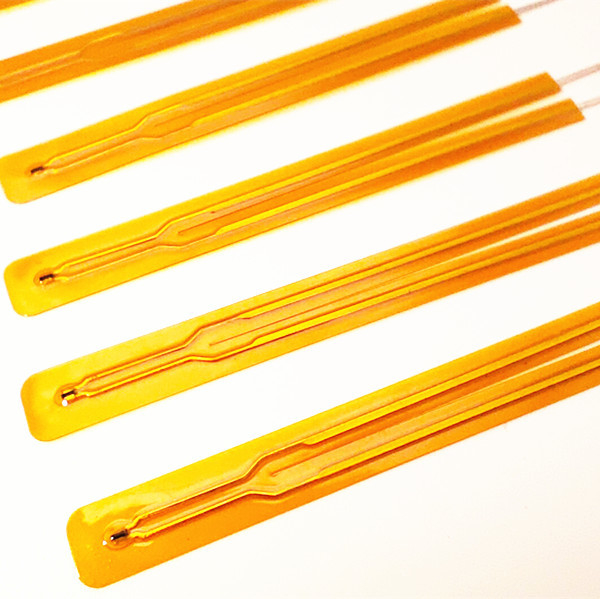

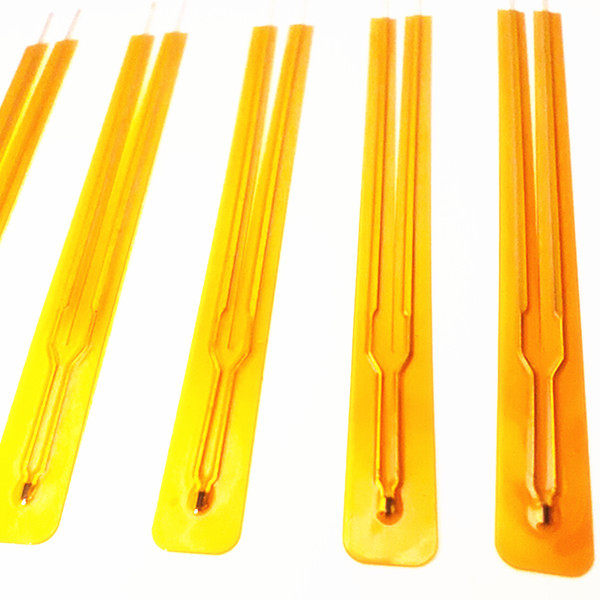

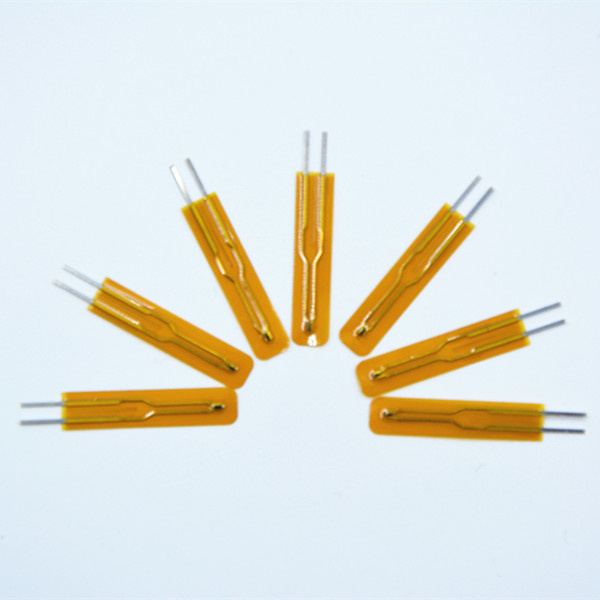

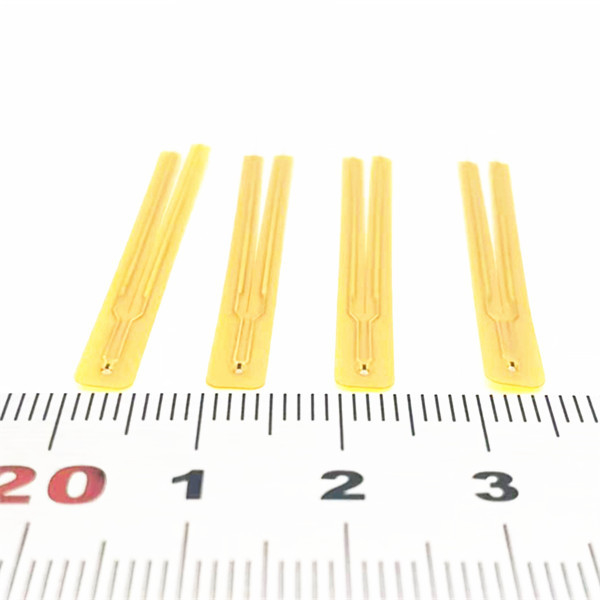

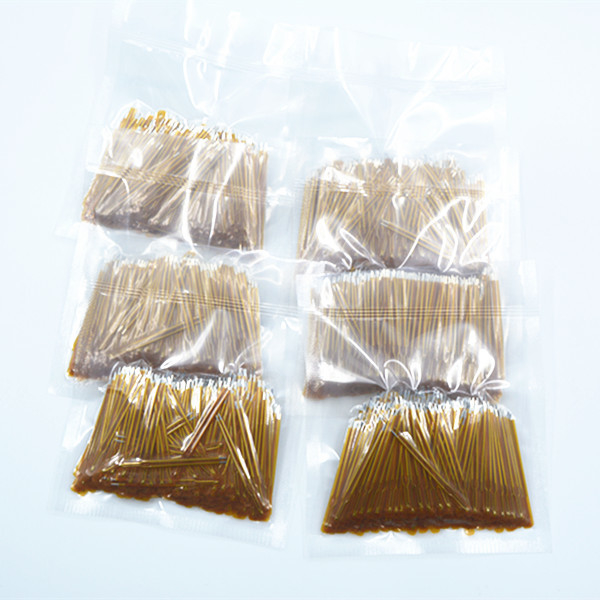

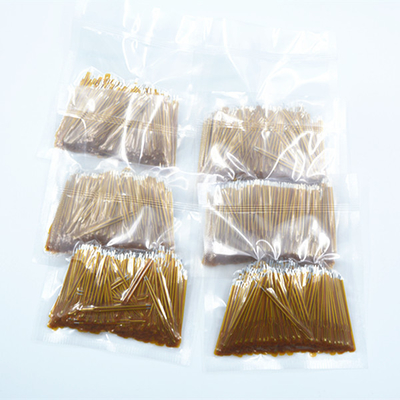

product picture/images:
