| Place of Origin: | Anhui, China |
|---|---|
| Brand Name: | JP SENSOR |
| Certification: | ISO9001, RoHS |
| Model Number: | MF5A-6 |
| Minimum Order Quantity: | 5000 Pieces |
| Price: | Negotiable |

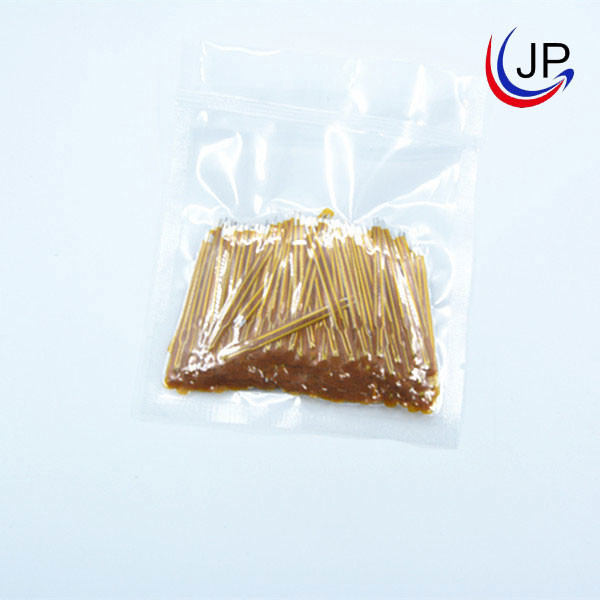

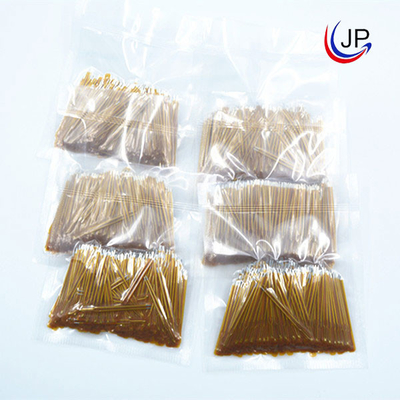

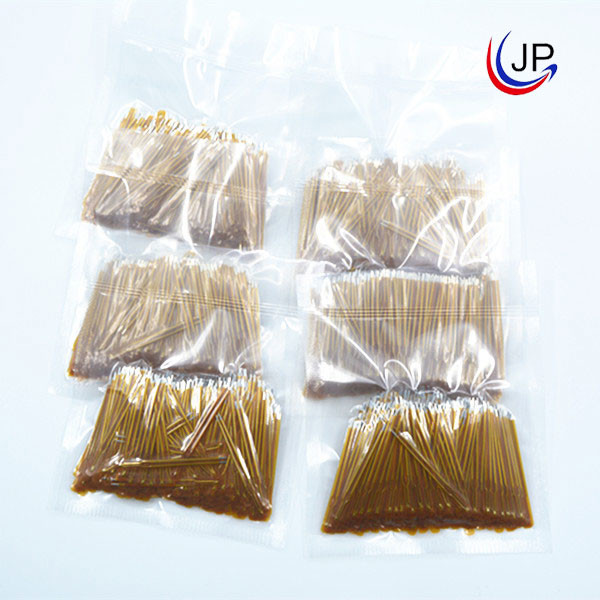

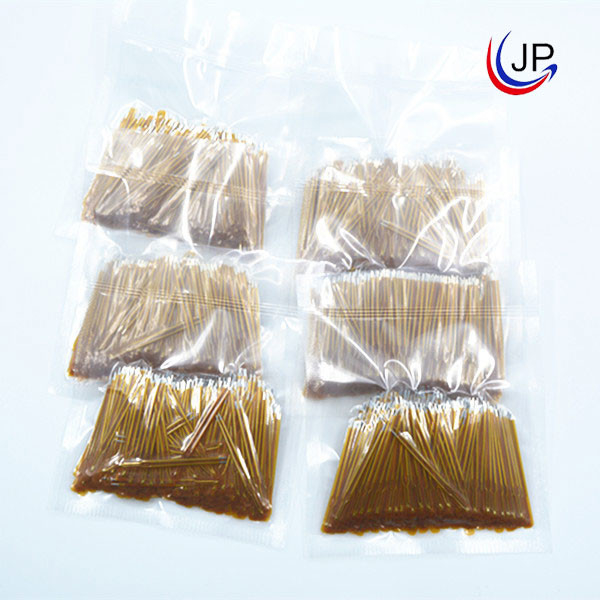

| Packaging Details: | Carton Packing |
| Delivery Time: | 2 Weeks |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 200 Million per Year |
| Width Of Film: | 3.9mm | Length Of Film: | 25mm |
|---|---|---|---|
| Parameters: | 10KΩ3435K | Operating Temperature Range: | -40℃~100℃ |
| Application: | Home Appliances, Computer, Printer, Battery Pack | Film: | Polyimide Film |
| High Light: | 25mm ntc thermistor sensor,3.9mm ntc thermistor sensor,3435K thermistor temperature sensor |
||
3.9mm 25mm NTC Thermistor Sensor Thin Film 10K 3435K
Brief Introduction:

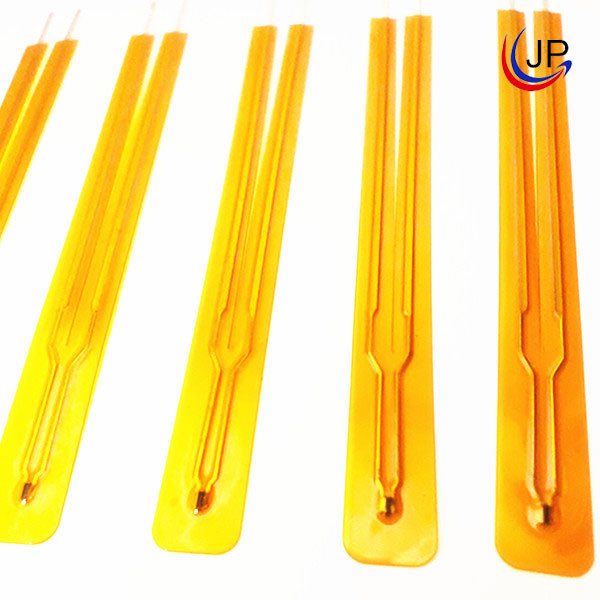

3.9mm 25mm NTC Thermistor Sensor Thin Film 10K 3435K is composed of an NTC chip, phosphor bronze bracket, and polyimide film. The width of the film is 3.9mm, the Total length is 25mm, and The resistance value of this size of the product is 10KΩ 3435K.
Features:
Thin-film type
Operating temperature range: -40℃~100℃
Film width: 3.9mm,Total length: 25mm
Application:
Computer, printer, Battery pack.
Part Number Code:
Structure and Dimensions:
Electrical Specification:
| Product Specification | Rec. at 25℃(KΩ) | Beta value | (In air) Pmax(mW) |
δ (mW/℃) |
Thermal time constant τ(sec.) | Operating Temperature Range TL-TH(℃) | Total length L(mm) |
| A6A103□3435B□□□□ | 10 | B25/85=3435 | Approx.3.5 | Approx.0.7 | Max.5.0 | -40~100 | 25~50 |
| A6A103□3977B□□□□ | 10 | B25/85=3977 | 25~50 | ||||
| A6B203□3972B□□□□ | 20 | B25/85=3972 | 25~50 | ||||
| A6B104□3435B□□□□ | 100 | B25/50=3950 | 25~50 |
