| Place of Origin: | Hefei, Anhui, China |
|---|---|
| Brand Name: | Jingpu Brand |
| Certification: | CE,ROHS,ISO13485/9001 |
| Model Number: | MF5A-7 |
| Minimum Order Quantity: | 1000 |
| Price: | USD 0.6-2 /PCS |
| Packaging Details: | Carton packing |
| Delivery Time: | 2-7days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 200 Million per Year |
| Way To Install: | Inserting | Sensing Way: | Resistence |
|---|---|---|---|
| Output Signal Type: | Analog Type | Material: | Ceramic |
| Measuring The Dielectric: | Temperature | IP Code: | IP64 |
| Transport Package: | Carton Packing | Appearance: | White |
| Warranty: | 12~24 Months | After-sale Service: | Quality Assurance |
| Customization: | Yes | Operating Temperature: | / |
| Resistence Value: | Custom | B Value: | Custom |
| Shipping: | Shipping, Air, Or Express | Wire: | PVC/XPLE/FEP/PTFE |
| High Light: | 2.252K Thermistor Housing,High Precision Thermistor Plastic Housing,HDPE Plastic Thermistor Housing |
||

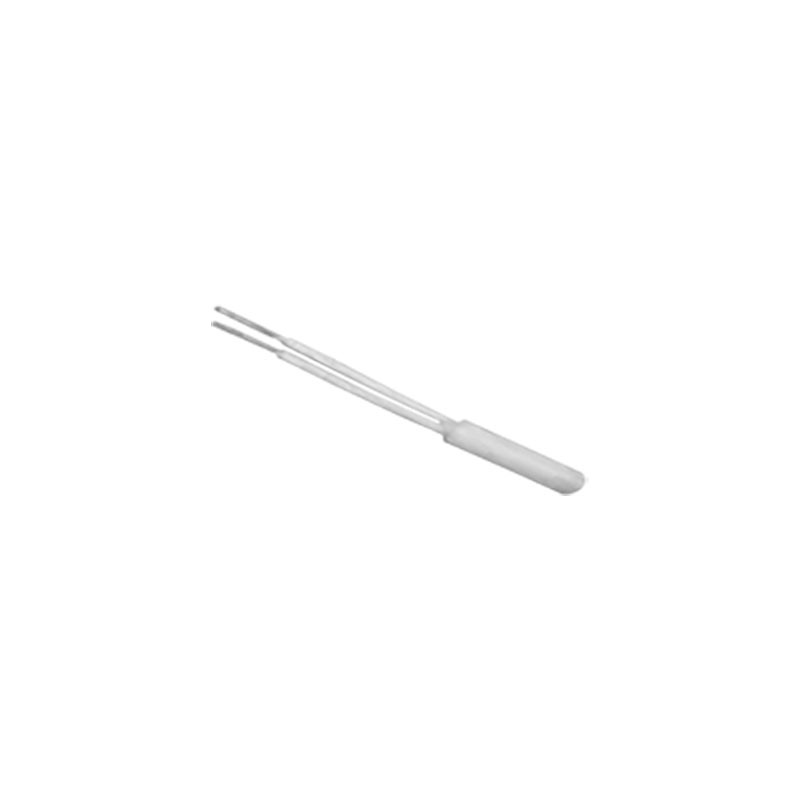

2.252K HDPE Plastic Housing High Precision Thermistor for Medical and Freezer AC
Brief Instruction:
MF5A-7 series 10KΩ2.252KΩ 3935k HDPE Plastic housing type NTC thermistor, the wire is 28AWG(1/0.3), the probe is HDPE material.
Features:
Comply for ROHS standard
R25=2.252KΩ
B25/50=3935K±0.5%

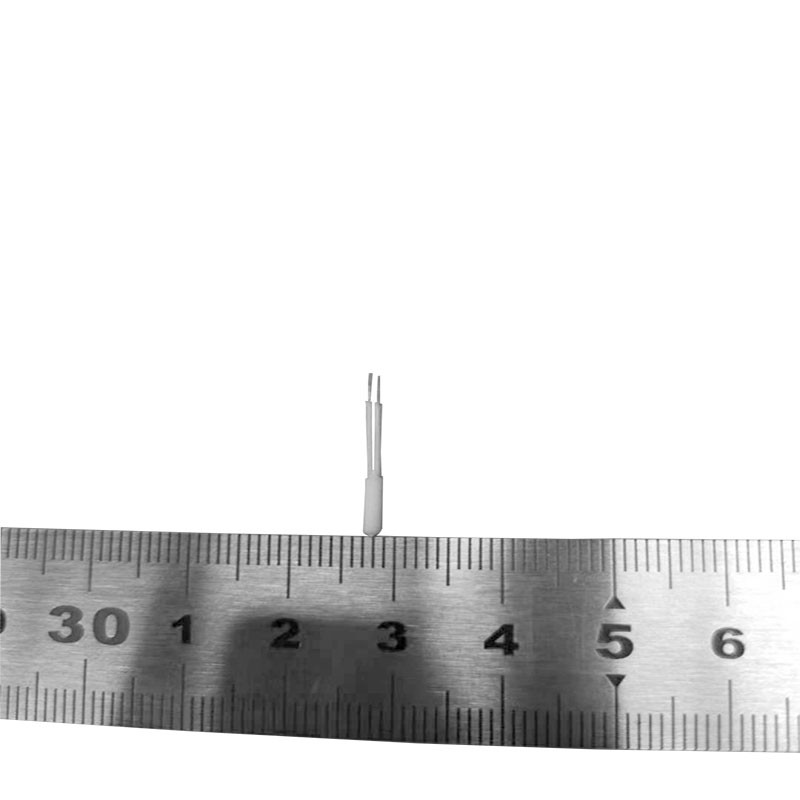

Miniature probe
(25℃~45℃) ±0.1℃
Wide parameter range: R25: (1.0~1000)KΩ,B25/85: (2000~4500)K
high precision, The allowable deviation of resistance value is up to ±0.5%, and the allowable deviation of B value is up to 0.5%.
Stable and reliable performance, due to the preferred formula, the use of special manufacturing technology and reliable sealing structure, the average life of the product can reach more than 10 years.
Widely used in air conditioners, refrigerators, electric kettles, electric ovens, rice cookers, microwave ovens, digital display thermometers, thermometers, electronic calendars and other household appliances, but also can be used in cocopying machines, fax machines, printers, program-controlled switches and batteries, mobile phone batteries, notebook battery protection board and other communication products
Application:
Household appliances
Machinery and equipment
Medical equipment
Structure and Dimensions:
