| Place of Origin: | Anhui, China |
|---|---|
| Brand Name: | JP SENSOR |
| Certification: | CE, ISO13485, ISO9001 |
| Model Number: | MF5A-7 |
| Minimum Order Quantity: | 2000 Pieces |
| Price: | To be negotiated |
| Packaging Details: | Standard Packing |
| Delivery Time: | 2 Weeks |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 200 Million per Year |
| Product Name: | Plastic Housing Type NTC Thermistor | Brand Name: | JINGPU SENSOR |
|---|---|---|---|
| Warranty: | 2 Years | OEM/ODM: | Available |
| B Value: | 2500k ~ 4500k | Resistance: | 0.3KΩ~ 2000KΩ |
| R25℃: | 2.252KΩ | B25/50: | 3976k |
| Accuracy: | ±0.2%，±0.5%，±1%，±2%，±3%， | Wire: | 28AWG(1/0.3) Wire &PVC Wire |
| High Light: | Epoxy Coated ntc probe sensor,3935k ntc probe sensor,2.252K ntc type thermistor |
||

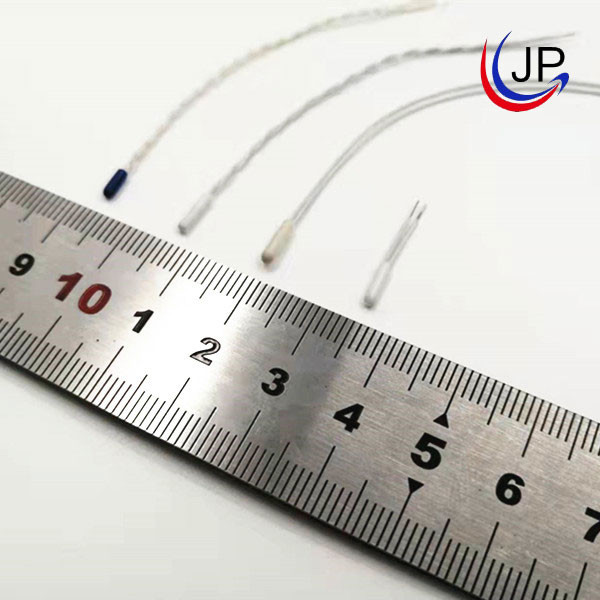

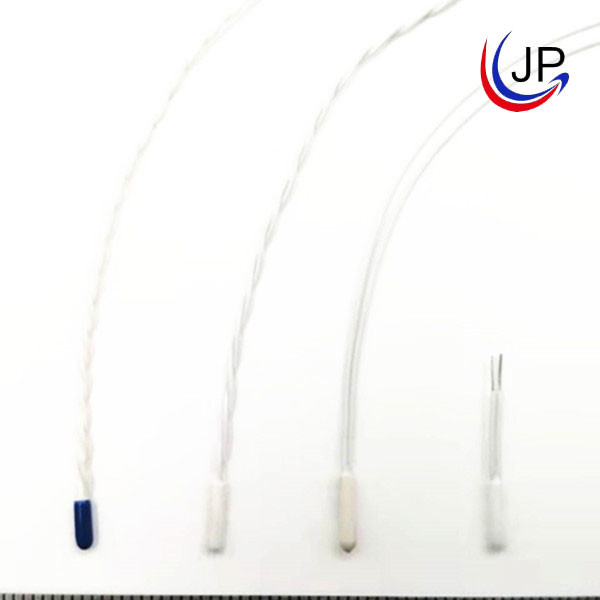

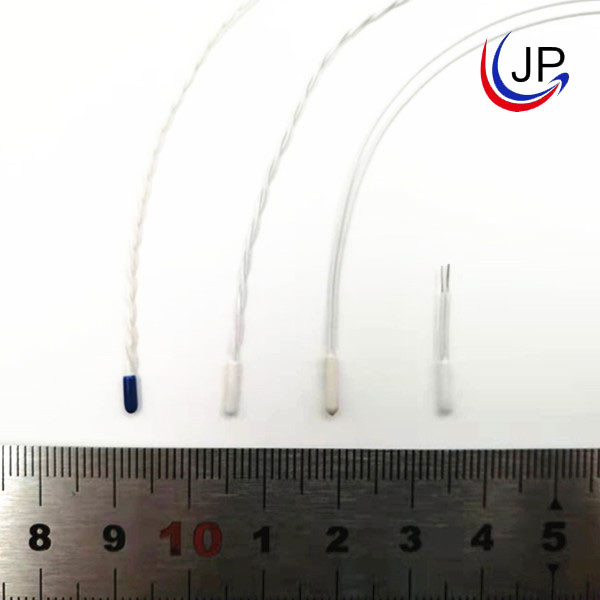

3935k Epoxy Coated NTC Probe Sensor 2.252K Plastic Housing Type
Brief Introduction:
MF5A-7 plastic housing type NTC thermistor, manufactured by Hefei Jingpu Sensor Technology Co., Ltd, consists of an NTC chip, HDPE/PP/PVC housing, and insulated wire (FEP/PVC/PVDF wire). The optional resistance value range is from 0.3kΩ to 2000kΩ, and the B value range is from 2500K to 4500K.
Features:
Comply with RoHS standard
High precision to ±0.1℃ from the temperature 25℃ to 45℃
Application:
Human body temperature measurement
Medical electric equipment
Skin / coelom / body temperature measurement
Adult/pediatric esophageal / rectal / air / skin temperature monitoring
Medical equipment, health monitor
Structure and Dimensions:
| NO. | Name | Material Specification | QTY. | Remarks |
| 1 | Chip | NTC Chip | 1 | / |
| 2 | Probe | Epoxy resin | 1 | / |
| 3 | Wire | FEP&PVDF28#(1/0.3) stripped wire | 1 | / |
Standard packing (inner packing): 100~500pcs/polybag
Electrical Specification:
| Rec. at 25℃(kΩ) | Beta value | (In air) Pmax(mW) | δ(mW/℃) | Thermal time constant τ(sec.) | Operating Temperature Range TL-TH(℃) | Total length L(mm) |
| 1 | B25/85=3435 | Approx.60 | Max.3.0 | Max.20 | -20℃~105℃(PVC wire)& -40℃~125℃( wire) | 30~1000 |
| 1.5 | B25/50=3850 | |||||
| 1.5 | B25/50=3935 | |||||
| 2 | B25/85=3550 | |||||
| 2 | B25/85=3935 | |||||
| 2.08 | B25/85=3580 | |||||
| 2.2 | B25/50=3935 | |||||
| 3 | B25/50=3950 | |||||
| 5 | B25/50=3470 | |||||
| 5 | B25/50=3950 | |||||
| 8 | B25/100=3988 | |||||
| 10 | B25/85=3435 | |||||
| 10 | B25/50=3470 | |||||
| 10 | B25/50=3935 | |||||
| 10 | B25/50=3950 | |||||
| 20 | B25/50=3950 | |||||
| 47 | B25/50=3950 | |||||
| 50 | B25/50=3950 | |||||
| 50 | B25/50=4200 | |||||
| 100 | B25/50=4200 | |||||
| 200 | B25/50=4200 | |||||
| 500 | B25/50=4450 | |||||
| 1000 | B25/85=4600 |
