| Place of Origin: | Anhui, China |
|---|---|
| Brand Name: | JP SENSOR |
| Certification: | ISO9001, RoHS |
| Model Number: | MF5A-7 |
| Minimum Order Quantity: | 1000 Pieces |
| Price: | Negotiable |
| Packaging Details: | Standard Packing |
| Delivery Time: | 2 Weeks |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 200 Million per Year |
| Resistance: | 2.252KΩ | Wire: | 28AWG(1/0.3) Bunch Wire |
|---|---|---|---|
| Probe: | HDPE | Encapsulation: | Epoxy Resin |
| Chip: | NTC Thermal Chip | Customization: | Available |
| High Light: | RoHS Thermistor Housing,Thermistor Housing 2.252Kohm,HDPE ntc thermistor probe |
||

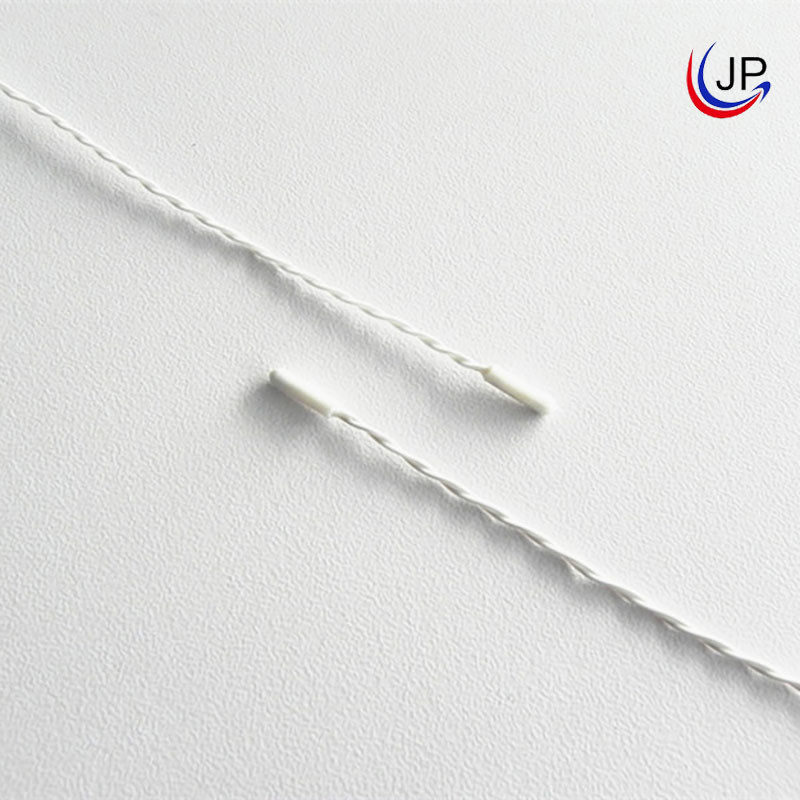

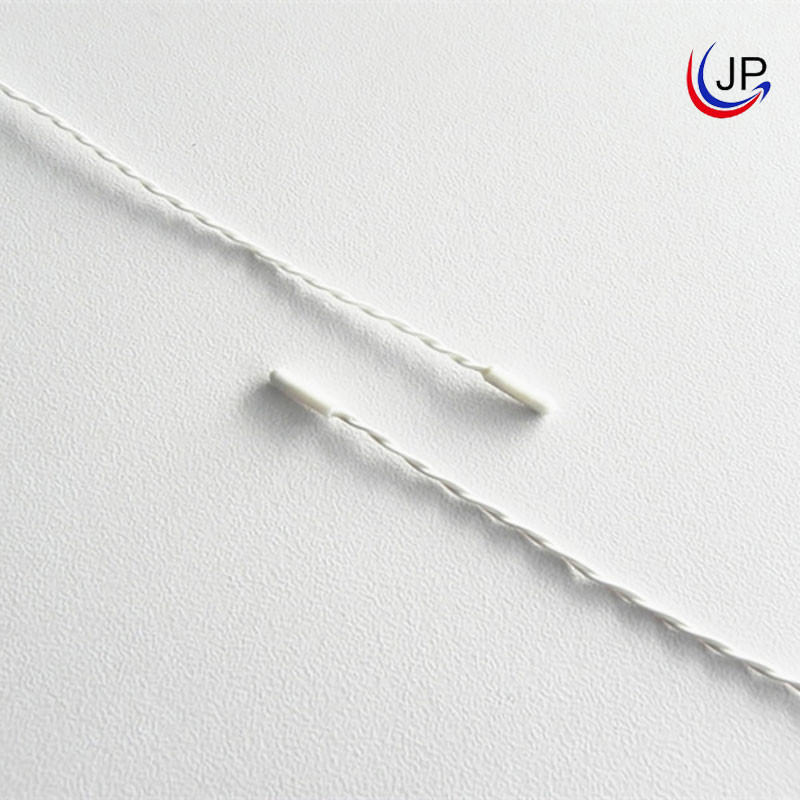

RoHS HDPE Plastic Thermistor Housing 2.252Kohm NTC Thermistor Probe
Brief Introduction:
MF5A-7 series 2.252KΩ HDPE Plastic housing type NTC thermistor consists of NTC Chip, Probe, Epoxy resin, 28AWG(1/0.3) bunch wire, its probe is HDPE. The accuracy of this product is high, and it is mainly used in the production of medical temperature sensor.
Features:
Comply with RoHS standard
(25℃ ~ 45℃) ±0.1℃
Application:
Human body temperature measurement
Medical electric equipment
Skin / coelom / body temperature measurement
Adult / pediatric esophageal / rectal / air / skin temperature monitoring
Medical equipment, health monitor
Structure and Dimensions:
Electrical Specification:
| Rec. at 25℃(kΩ)+A2:G25+A2:G25 | Beta value |
(In air) Pmax(mW) |
δ(mW/℃) | Thermal time constant τ(sec.) | Operating Temperature Range TL-TH(℃) | Total length L(mm) |
| 1 | B25/85=3435 | Approx.60 | Max.3.0 | Max.20 | -40℃~125℃ | 30~1000 |
| 1.5 | B25/50=3850 | |||||
| 1.5 | B25/50=3935 | |||||
| 2 | B25/85=3550 | |||||
| 2 | B25/85=3935 | |||||
| 2.08 | B25/85=3580 | |||||
| 2.2 | B25/50=3935 | |||||
| 3 | B25/50=3950 | |||||
| 5 | B25/50=3470 | |||||
| 5 | B25/50=3950 | |||||
| 8 | B25/100=3988 | |||||
| 10 | B25/85=3435 | |||||
| 10 | B25/50=3470 | |||||
| 10 | B25/50=3935 | |||||
| 10 | B25/50=3950 | |||||
| 20 | B25/50=3950 | |||||
| 47 | B25/50=3950 | |||||
| 50 | B25/50=3950 | |||||
| 50 | B25/50=4200 | |||||
| 100 | B25/50=4200 | |||||
| 200 | B25/50=4200 | |||||
| 500 | B25/50=4450 | |||||
| 1000 | B25/85=4600 |
