| Place of Origin: | Hefei, Anhui, China |
|---|---|
| Brand Name: | Jingpu Brand |
| Certification: | CE,ROHS,ISO13485/9001 |
| Model Number: | MF5A-7 |
| Minimum Order Quantity: | 1000 |
| Price: | USD 0.6-2 /PCS |
| Packaging Details: | Carton packing |
| Delivery Time: | 2-7days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 200 Million per Year |
| Way To Install: | Inserting | Sensing Way: | Resistence |
|---|---|---|---|
| Output Signal Type: | Analog Type | Material: | Ceramic |
| Measuring The Dielectric: | Temperature | IP Code: | IP64 |
| Transport Package: | Carton Packing | Appearance: | White |
| Warranty: | 12~24 Months | After-sale Service: | Quality Assurance |
| Customization: | Yes | Operating Temperature: | / |
| Resistence Value: | Custom | B Value: | Custom |
| Shipping: | Shipping, Air, Or Express | Wire: | PVC/XPLE/FEP/PTFE |
| High Light: | HDPE Plastic NTC Thermistor Housing,Mechanical Device Thermistor Housing,IP64 NTC Thermistor Housing |
||

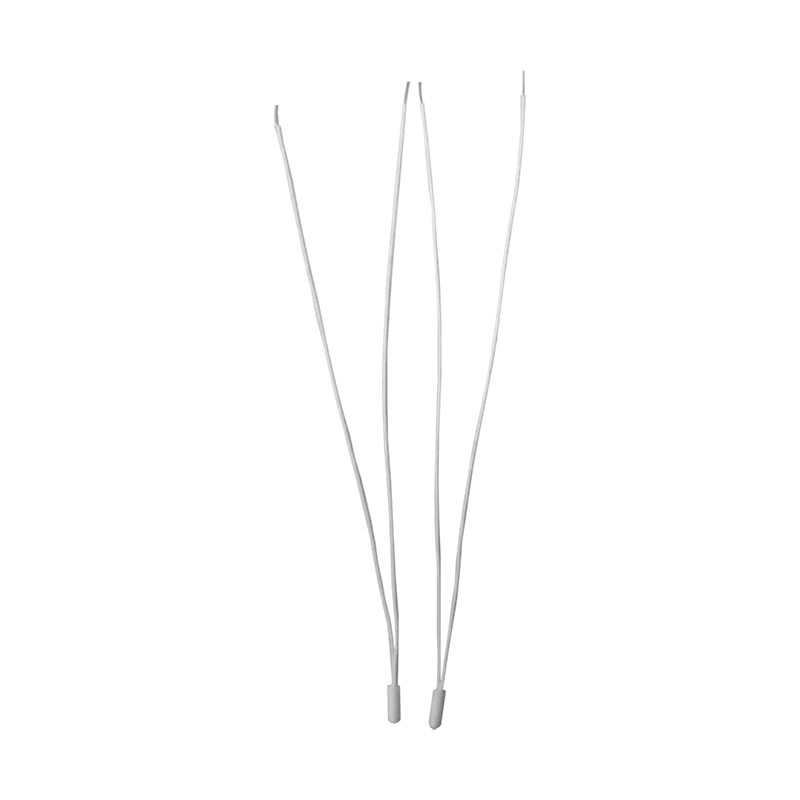

100K 4200k HDPE Plastic Housing Type NTC Thermistor for Mechanical Device
Brief Instruction:
MF5A-7 series 100KΩ HDPE Plastic housing type NTC thermistor, the wire is 28AWG(1/0.3), the probe is HDPE material.
Features:
Comply for ROHS standard
R25=100KΩ±2%
B25/50=4200K±1%
Miniature probe
Application:
Household appliances
Mechanical equipment, etc.

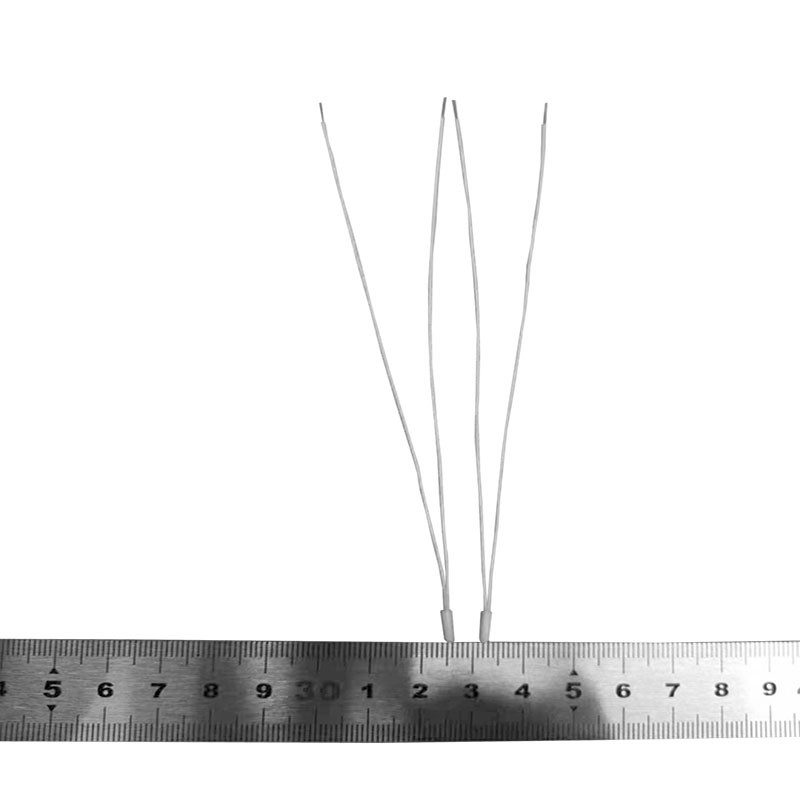

Structure and Dimensions:
1:MF5A-7 series products are NTC thermistor temperature sensors coated with epoxy resin in the same direction
2: Wide resistance range: 0.1KΩ~500KΩ
3: high accuracy of resistance value and B value
4: moisture proof, good insulation, high reliability, small time constant
5: Small volume, fast reflection speed
6: Able to work steadily for a long time with good consistency
7: Operating temperature range :-40~125℃
