| Place of Origin: | Anhui, China |
|---|---|
| Brand Name: | JP SENSOR |
| Certification: | ISO9001, RoHS |
| Model Number: | MF5A-6 |
| Minimum Order Quantity: | 5000 Pieces |
| Price: | Negotiable |

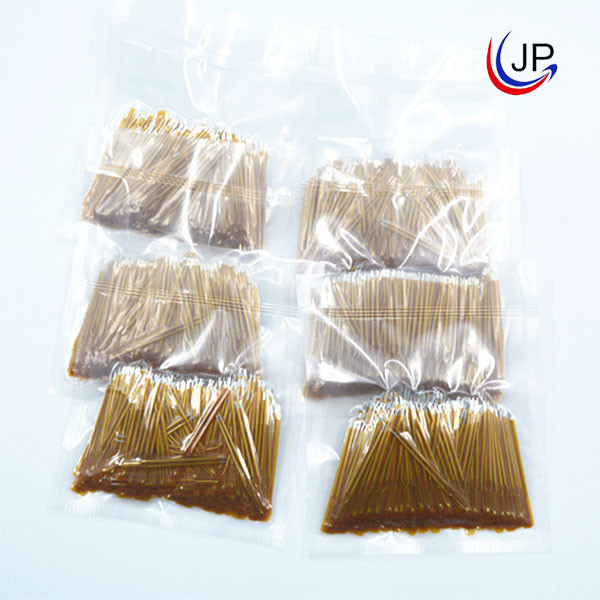

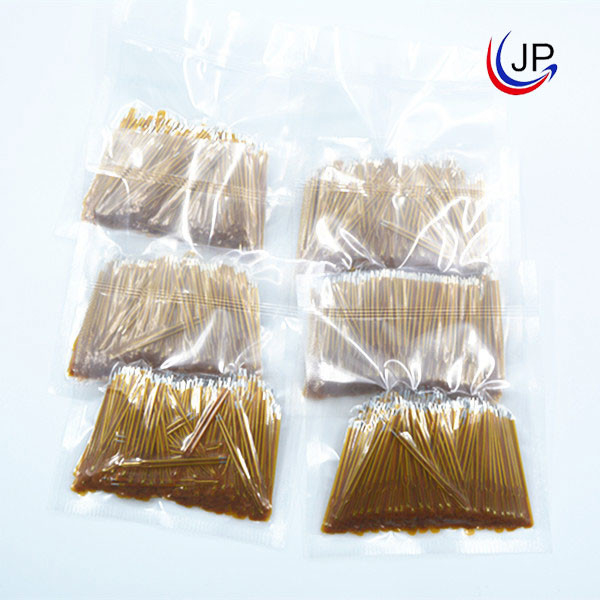

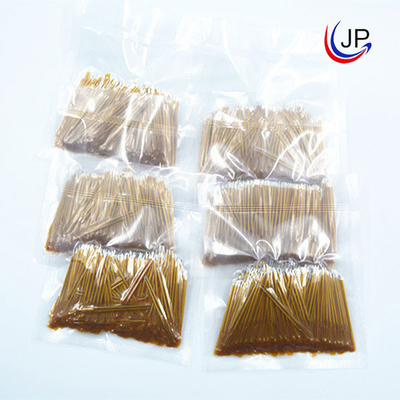

| Packaging Details: | Carton Packing |
| Delivery Time: | 2 Weeks |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 200 Million per Year |
| Width Of Film: | 3.6mm | Length Of Film: | 50mm |
|---|---|---|---|
| Parameters: | 10KΩ3977K | Operating Temperature Range: | -40℃~100℃ |
| Application: | Home Appliances, Computer, Printer, Battery Pack | Film: | Polyimide Film |
| High Light: | Polyimide Thin Film NTC Thermistor,Thin Film NTC Thermistor 10K,3977K ntc probe temperature sensor |
||

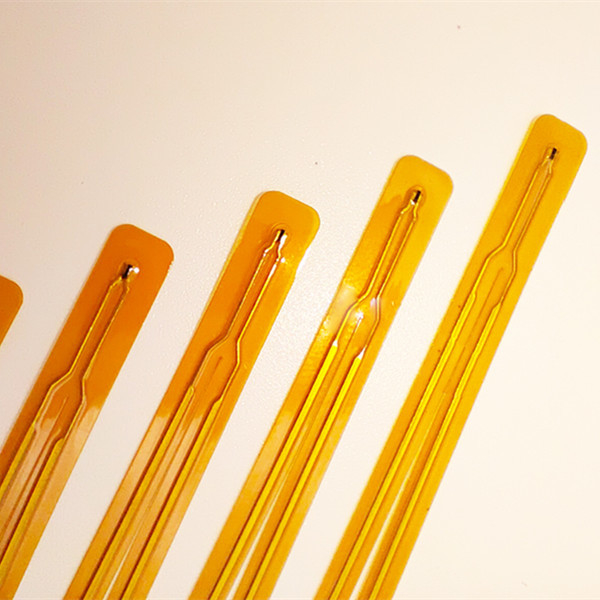

3.6mm 50mm Polyimide Thin Film NTC Thermistor 10K 3977K
Brief Introduction:

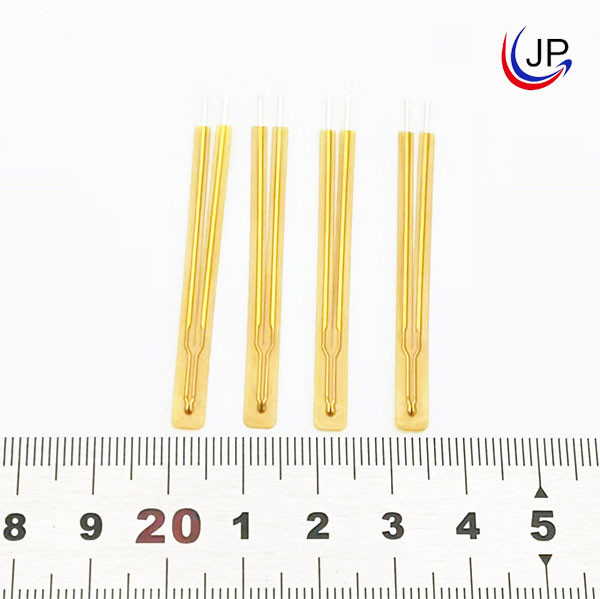

The width of the film is 3.6mm, the Total length is 50mm, The resistance value of this size of the product is 10KΩ 3977K.
Features:
Film width: 3.6mm,Total length: 50mm
R25℃=10kΩ±1%
B25/85=3977k±1%
Application:
Computer, printer, Battery pack.
Part Number Code:
Structure and Dimensions:
Electrical Specification:
| Product Specification | Rec. at 25℃(KΩ) | Beta value | (In air) Pmax(mW) |
δ (mW/℃) |
Thermal time constant τ(sec.) | Operating Temperature Range TL-TH(℃) | Total length L(mm) |
| A6A103□3435B□□□□ | 10 | B25/85=3435 | Approx.3.5 | Approx.0.7 | Max.5.0 | -40~100 | 25~50 |
| A6A103□3977B□□□□ | 10 | B25/85=3977 | 25~50 | ||||
| A6B203□3972B□□□□ | 20 | B25/85=3972 | 25~50 | ||||
| A6B104□3435B□□□□ | 100 | B25/50=3950 | 25~50 |
