| Place of Origin: | China |
|---|---|
| Brand Name: | Hefei Jingpu Sensor Technology Co., Ltd |
| Certification: | RoHS, ISO9001 |
| Model Number: | MFP |
| Minimum Order Quantity: | 1000 Pieces |
| Price: | To be negotiated |
| Packaging Details: | Carton Package |
| Delivery Time: | 3-5 Weeks |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 20K per month |
| Resistance Value: | R25℃=10KΩ±1% | Beta Value: | B0/50=3892k±1% |
|---|---|---|---|
| Probe: | (RNB8-6S)*3, Black | Wire: | UL2651-24AWG*2C, Black |
| Length: | 152 ± 12 / 152 ± 12 / 152 ± 12 Mm | Tube: | Heat-shrinkable Tube (25 ± 5)*3 Mm |
| Connector: | Molex 0430251008 | Terminal: | Molex 0430300008 |

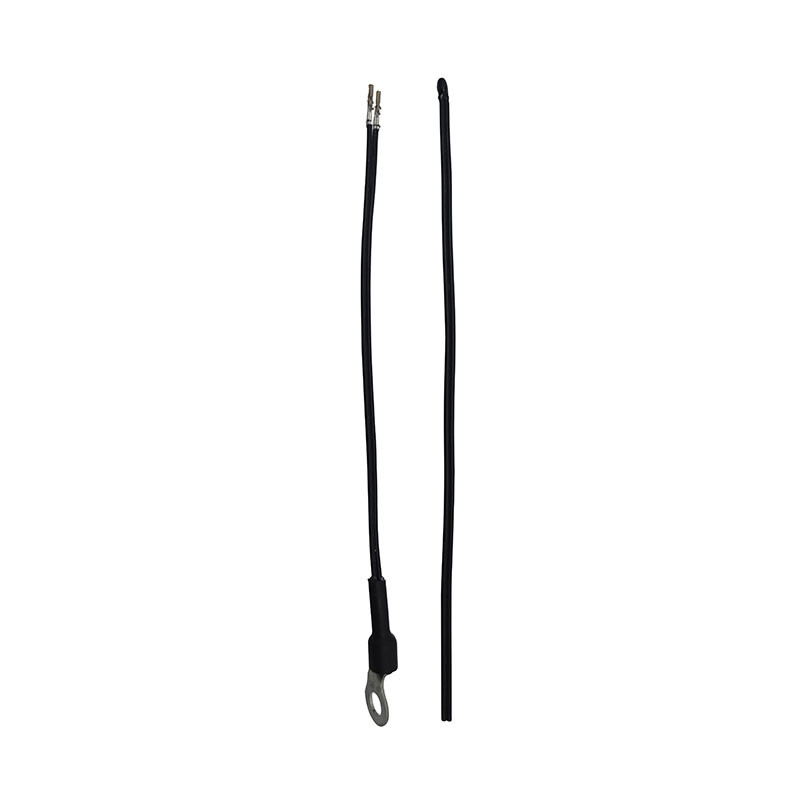

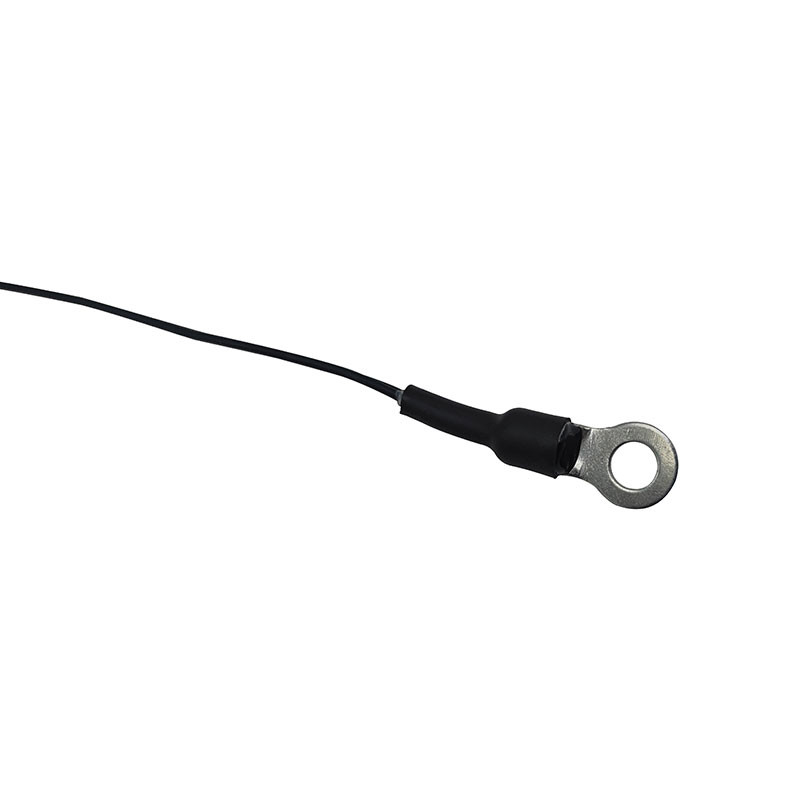

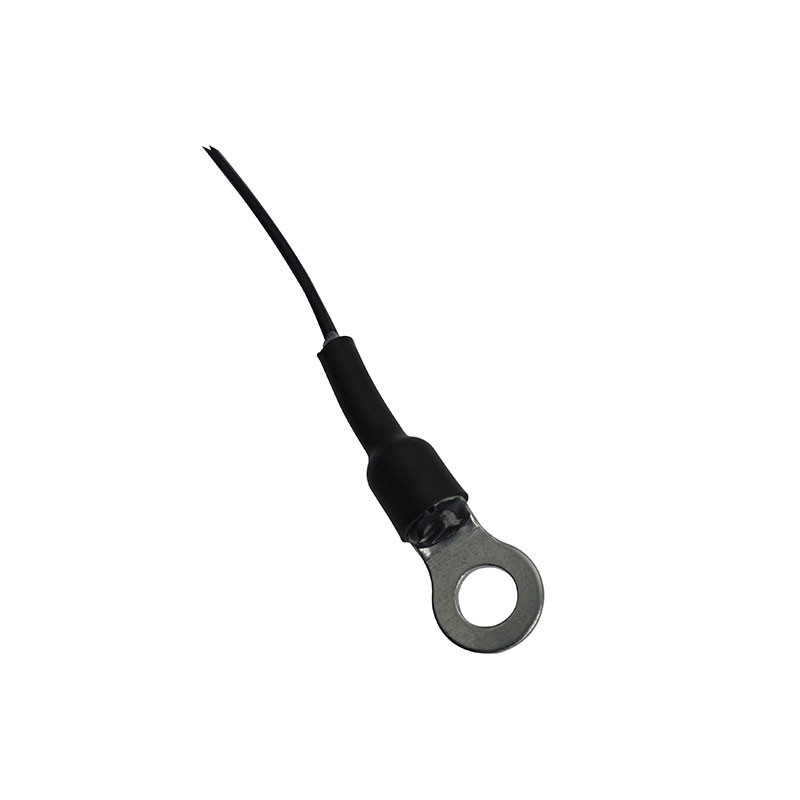

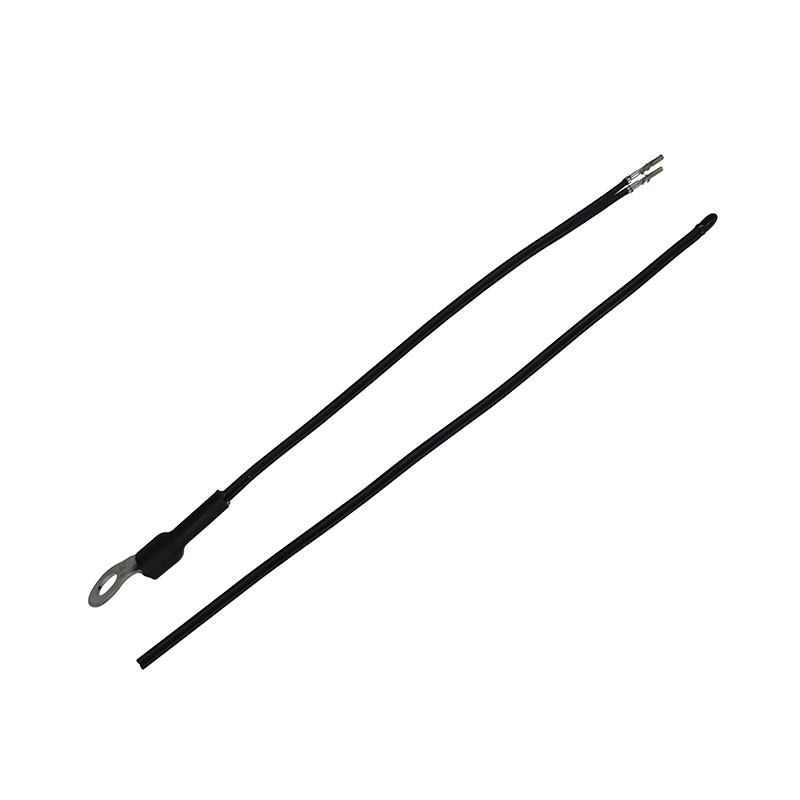

10KΩ*3 Beta0/50=3892 NTC Temperature Sensor
Product Description: This sensor offers a resistance of 10KΩ at 25℃, providing a dependable baseline for temperature measurement. With a Beta (β) value of 3892, it ensures outstanding sensitivity and stability over a wide temperature range, making it ideal for applications that require precise temperature control.
Whether monitoring environmental conditions, regulating heating and cooling systems, or ensuring product quality in industrial processes, this NTC temperature sensor delivers reliable and consistent performance.
Features:
Resistance: R25℃ = 10KΩ ± 1%
Beta Value: B0/50 = 3892K ± 1%
Probe: (RNB8-6S)*3, black
Wire: UL2651-24AWG*2C, black
Length: 152 ± 12 / 152 ± 12 / 152 ± 12 mm
Tube: Heat-shrinkable tube (25 ± 5)*3 mm
Connector: Molex 0430251008
Terminal: Molex 0430300008
Application:
Temperature measurement or temperature monitoring for EV battery,
