| Place of Origin: | Hefei, Anhui, China |
|---|---|
| Brand Name: | Jingpu Brand |
| Certification: | CE,ROHS,ISO |
| Model Number: | JP405 |
| Minimum Order Quantity: | 500 |
| Price: | USD 0.1-5 /PCS |
| Packaging Details: | Carton packing |
| Delivery Time: | 2-7days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 200 Million per Year |
| Way To Install: | Inserting | Sensing Way: | Resistence |
|---|---|---|---|
| Output Signal Type: | Analog Type | Material: | Epoxy And Metal |
| Measuring The Dielectric: | Temperature | IP Code: | IP64 |
| Transport Package: | Carton Packing | Appearance: | White |
| Warranty: | 12~24 Months | After-sale Service: | Quality Assurance |
| Customization: | Yes | Operating Temperature: | / |
| Resistence Value: | Custom | B Value: | Custom |
| Shipping: | Shipping, Air, Or Express | Wire: | PVC/XPLE/FEP/PTFE |
| High Light: | PVC sleeve Body Temperature Probe,Children'S Body Temperature Probe,IP64 Body Monitor Temperature Probe |
||
Brief Instruction:

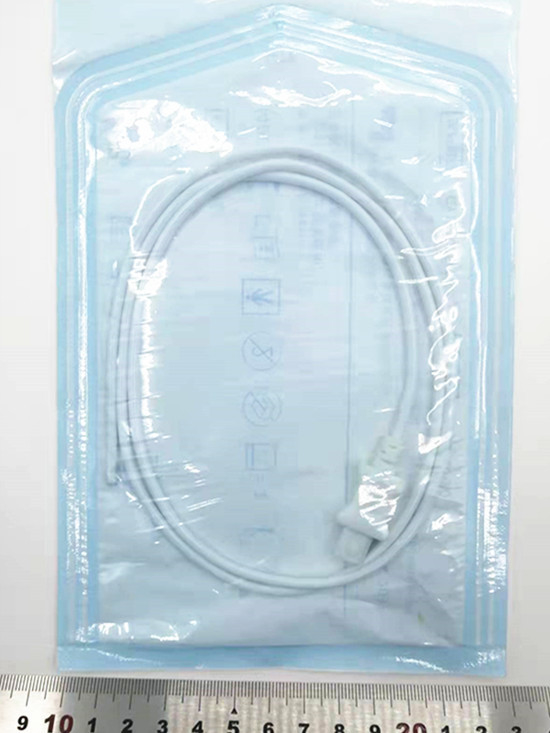

This project is a disposable medical temperature sensor, which is a body cavity temperature probe sensor for children. We have also made similar products for adults. Resistance value 2.252 kΩ. The temperature tolerance is (25℃~45℃)±0.1℃. It can be replaced by YSI400 series products.
Features:
Disposable
PVC sleeve
Disposable Tolerance(25~45)℃±0.1℃
Operating temperature range: 0℃~50℃
7Fr(OD2.3)
Application:
It can be used in conjunction with the body monitor for continuous temperature monitoring of the patient's body in ICU, emergency room, operating room and other wards
Special for children body cavity temperature measurement
Structure and Dimensions:(Unit:mm)
| NO. | Name | Material Specification | QTY. | Remarks |
| 1 | Chip | NTC Thermal Chip | 1 | / |
| 2 | Tube | PVCφ2.3 | 1 | white |
| 3 | Plug |
TPE(Type M2) Compatible with Molex 03-06-1023 |
1 | white |
Our company is based on customized products, and we must determine the product requirements, such as: wire requirements, performance parameters, probe size requirements, tail connection mode, use environment, or we are not good delivery or production, at the same time, the product ultimately achieve the product function you need for the first.
