| Place of Origin: | Hefei, Anhui, China |
|---|---|
| Brand Name: | Jingpu Brand |
| Certification: | CE,ROHS,ISO |
| Model Number: | JP404 |
| Minimum Order Quantity: | 500 |
| Price: | USD 0.1-5 /PCS |
| Packaging Details: | Carton packing |
| Delivery Time: | 2-7days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 200 Million per Year |
| Way To Install: | Inserting | Sensing Way: | Resistence |
|---|---|---|---|
| Output Signal Type: | Analog Type | Material: | Epoxy And Metal |
| Measuring The Dielectric: | Temperature | IP Code: | IP64 |
| Transport Package: | Carton Packing | Appearance: | White |
| Warranty: | 2 Years | After-sale Service: | Quality Assurance |
| Customization: | Yes | Operating Temperature: | / |
| Resistence Value: | Custom | B Value: | Custom |
| Shipping: | Shipping, Air, Or Express | Wire: | PVC/XPLE/FEP |
| High Light: | Ntc 10000 Ohm Temperature Sensor,Disposable Ntc Temperature Probe,Medical Monitors Ntc Temperature Probe |
||

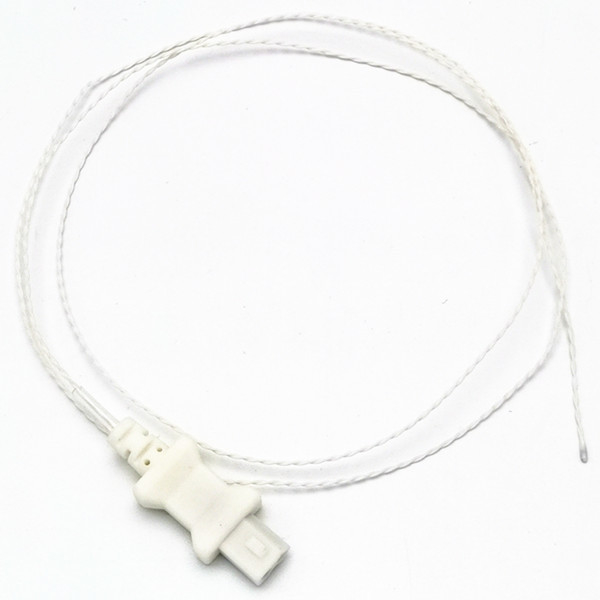

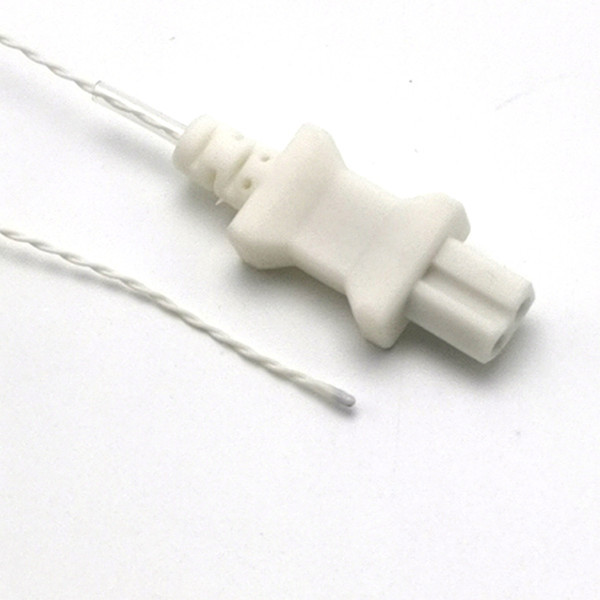

2.252kohm 10k Bunch Wire Disposable Ntc Temperature Probe For Medical Monitors
Brief Instruction:
The rated resistance value 2.252KΩ or 10KΩ. Total length is 0.7&0.9Meters, and the sensor measuring tolerance within ±0.1℃. Used for monitors, suitable for YSI400 series products replacement.
Features:
Disposable Tolerance(25~45)℃±0.1℃
Operating temperature range: 0℃~50℃
Application:
Applicable to Medical monitors
Structure and Dimensions:(Unit:mm)
Standard packing (inner packing): 1 pcs/polybag
Operation Notice
1. Application:Temperature measure ；
2. The current flowing through the NTC is controlled within the Pmax range to avoid the measurement error caused by the self-heating of the component.
3. Storage Temperature -10℃～40℃,≤75%RH；Avoid in a corrosive gas and sunlit environment; After opening the package, it needs to be sealed again.
Please contact us for detailed specification data, we have a professional technical team to provide services for you.
