| Place of Origin: | Anhui, China |
|---|---|
| Brand Name: | JP SENSOR |
| Certification: | ISO13485, ISO9001, RoHS |
| Model Number: | MFP |
| Minimum Order Quantity: | 500 Pieces |
| Price: | Negotiable |
| Packaging Details: | Standard Packaging |
| Delivery Time: | 1-2 Weeks |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 200 Million per Year |
| Resistance Tolerance: | ±3% | Wire: | UL2651 24AWG*2C |
|---|---|---|---|
| Shipping: | Express, Air Freight | Resistance: | R0℃=6.27KΩ |
| Operating Temperature Range: | -20℃~105℃ | Beta Value: | B(25/50℃)=3500K |
| Beta Value Tolerance: | ±2% | OEM/ODM: | Available |
| High Light: | 6.27Kohm NTC Temperature Probe,3500K NTC Temperature Probe,3500K NTC Temperature Sensor |
||
High Accuracy 6.27Kohm 3% 3500K NTC Temperature Probe
Product Description:

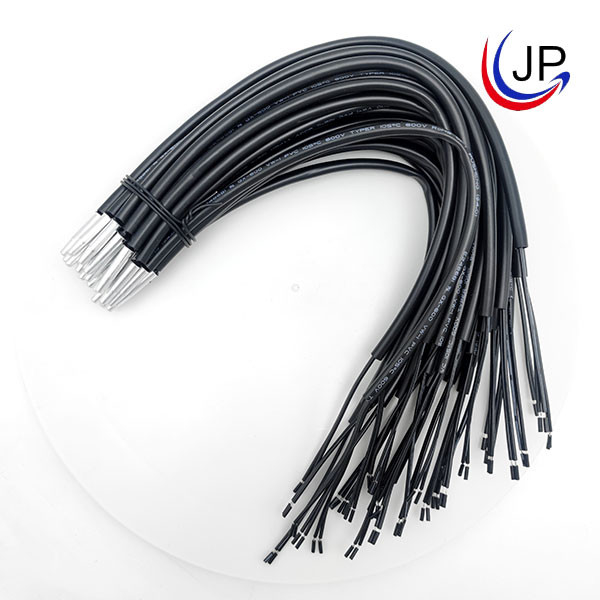

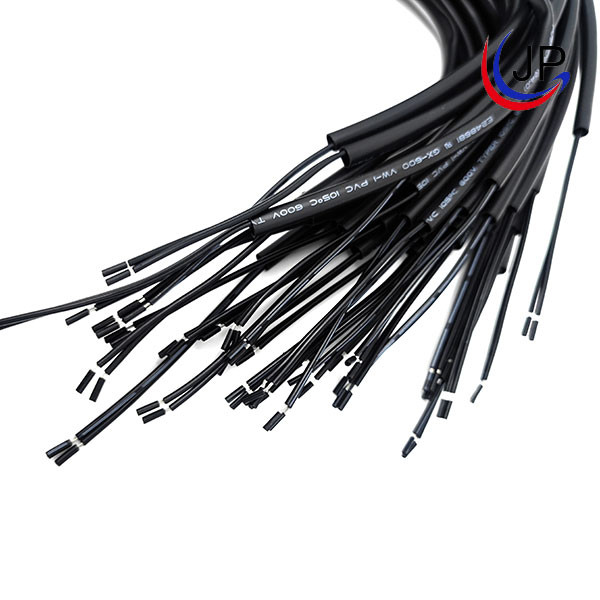

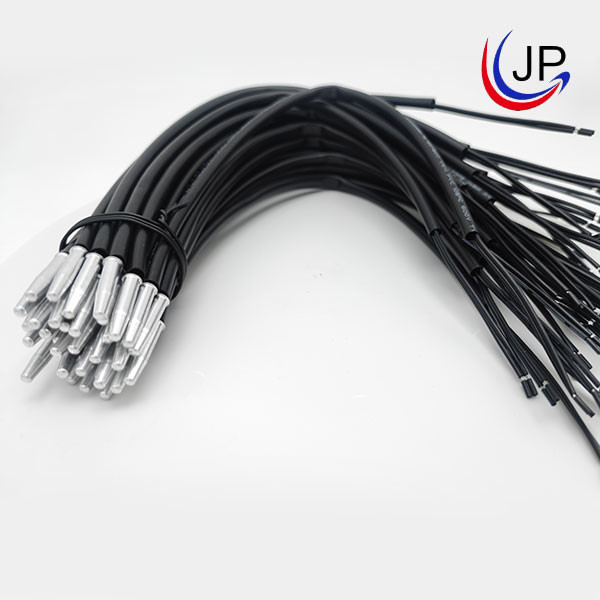

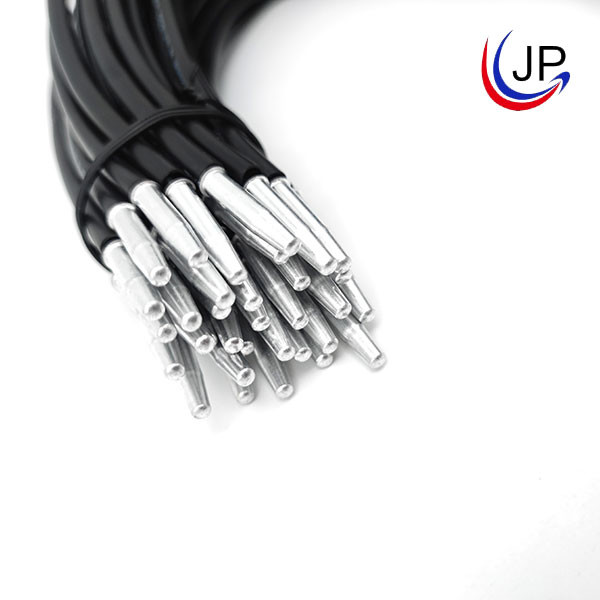

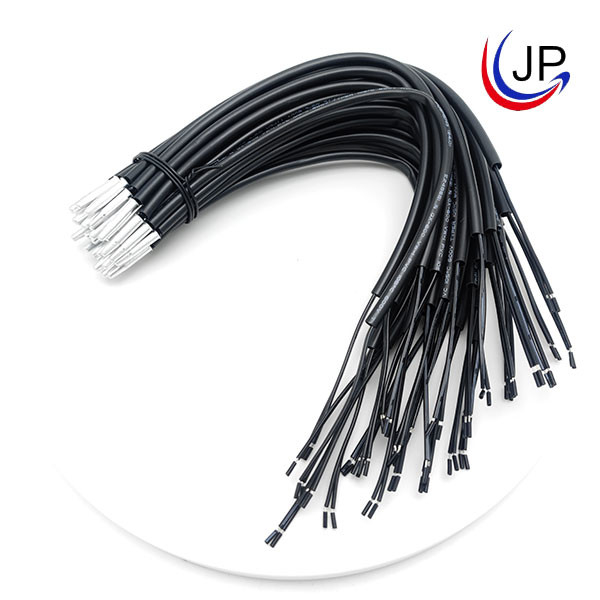

High Accuracy 6.27Kohm 3% 3500K NTC Temperature Probe is an MPF series NTC temperature sensor. The Resistance is R0℃= 6.27Kohm±3%, the beta value is B25/50=3500K±2%, the probe is aluminum φ4.4*21mm, the cable is UL2651-24awg*2C, and the total length is 310mm.
Features:
R0℃=6.27Kohm
Resistance Tolerance=±3%
B(25/50℃)=3500K
Beta Value Tolerance=±2%
Wire: UL2651 24AWG*2C
Operating Temperature Range: -20~105℃
Technical Specification:
| Rec. at 25℃(kΩ) | Beta value | (In air) Pmax(mW) | δ(mW/℃) | Thermal time constant τ(sec.) | Operating Temperature Range TL-TH(℃) | Total length L(mm) |
| 1 | B25/85=3435 | Approx.60 | Max.3.0 | Max.20 | -20℃~125℃ | 100~5000 |
| 1.5 | B25/50=3850 | |||||
| 1.5 | B25/50=3935 | |||||
| 2 | B25/85=3550 | |||||
| 2 | B25/85=3935 | |||||
| 2.08 | B25/85=3580 | |||||
| 2.2 | B25/50=3935 | |||||
| 3 | B25/50=3950 | |||||
| 5 | B25/50=3470 | |||||
| 5 | B25/50=3950 | |||||
| 8 | B25/100=3988 | |||||
| 10 | B25/85=3435 | |||||
| 10 | B25/50=3470 | |||||
| 10 | B25/50=3935 | |||||
| 10 | B25/50=3950 | |||||
| 20 | B25/50=3950 | |||||
| 47 | B25/50=3950 | |||||
| 50 | B25/50=3950 | |||||
| 50 | B25/50=4200 | |||||
| 100 | B25/50=4200 | |||||
| 200 | B25/50=4200 | |||||
| 500 | B25/50=4450 | |||||
| 1000 | B25/85=4600 |
Application:
NTC temperature sensors manufactured by Hefei Jingpu Sensor Technology Co., Ltd are applied in home appliances, Air conditioning, Water heaters, the Battery pack of vehicles, medical devices, etc.
In order to offer you the right model for this type of product, please provide the necessary information as follows.:
1. Application of the product: ______
2. The operating temperature range: ______℃ to ______℃
3. Working environment of this product: ______
4. R25℃:______, B25/50℃ or B25/85℃:______
5. Wire Specification:______
6. The dimension and the drawing of your target product:______
For more details, please contact me via: sales05@jingpusensor.com
