| Place of Origin: | Anhui, China |
|---|---|
| Brand Name: | JP SENSOR |
| Certification: | ISO13485, ISO9001, RoHS |
| Model Number: | MFP-3G |
| Minimum Order Quantity: | 500 Pieces |
| Price: | To be negotiated |
| Packaging Details: | Standard Package |
| Delivery Time: | 1-2 Weeks |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 200 Million per Year |
| Resistance Value: | R0℃=6.65Kohm | Operating Temperature Range: | -20℃~105℃ |
|---|---|---|---|
| Beta Value: | B(25/50℃)=3470K | Wire: | UL2651 24AWG*2C |
| Shipping: | Sea Freight, Express, Air Freight | Beta Value Tolerance: | ±2% |
| Resistance Tolerance: | ±5% | OEM/ODM: | Available |
| High Light: | 3470K NTC Temperature Probe,6.65KΩ NTC Temperature Probe,ODM Ntc Temperature Sensor |
||
5% R0 6.65KΩ 3470K NTC Temperature Probe
Product Description:
5% R0 6.65KΩ 3470K NTC Temperature Probe is MPF series NTC thermistor temperature sensor. The Resistance is R0℃= 6.65Kohm±5%, the beta value is B25/50=3470K±2%, the probe is aluminum φ5.5-3.5*23.5mm, the cable is UL2651-24awg*2C, and the total length is 180mm.
Features:
R0℃=6.65Kohm
Resistance Tolerance=±5%
B(25/50℃)=3470K
Beta Value Tolerance=±2%
Cable: UL2651 24AWG*2C
Operating Temperature Range: -20~105℃
Technical Specification:
| Rec. at 25℃(kΩ) | Beta value | (In air)Pmax(mW) | δ(mW/℃) | Thermal time constant τ(sec.) | Operating Temperature Range TL-TH(℃) | Total length L(mm) |
| 1 | B25/85=3435 | Approx.60 | Max.3.0 | Max.20 | -20℃~105℃ | 100~5000 |
| 1.5 | B25/50=3850 | |||||
| 1.5 | B25/50=3935 | |||||
| 2 | B25/85=3550 | |||||
| 2 | B25/85=3935 | |||||
| 2.08 | B25/85=3580 | |||||
| 2.2 | B25/50=3935 | |||||
| 3 | B25/50=3950 | |||||
| 5 | B25/50=3470 | |||||
| 5 | B25/50=3950 | |||||
| 8 | B25/100=3988 | |||||
| 10 | B25/85=3435 | |||||
| 10 | B25/50=3470 | |||||
| 10 | B25/50=3935 | |||||
| 10 | B25/50=3950 | |||||
| 20 | B25/50=3950 | |||||
| 47 | B25/50=3950 | |||||
| 50 | B25/50=3950 | |||||
| 50 | B25/50=4200 | |||||
| 100 | B25/50=4200 | |||||
| 200 | B25/50=4200 |
Application:
Our NTC temperature sensors are applied in home appliances, Air conditioning, Water heaters, Battery pack of vehicle, medical devices, ect.
Structure and Dimension (Unit: mm)
Electrical Specification:

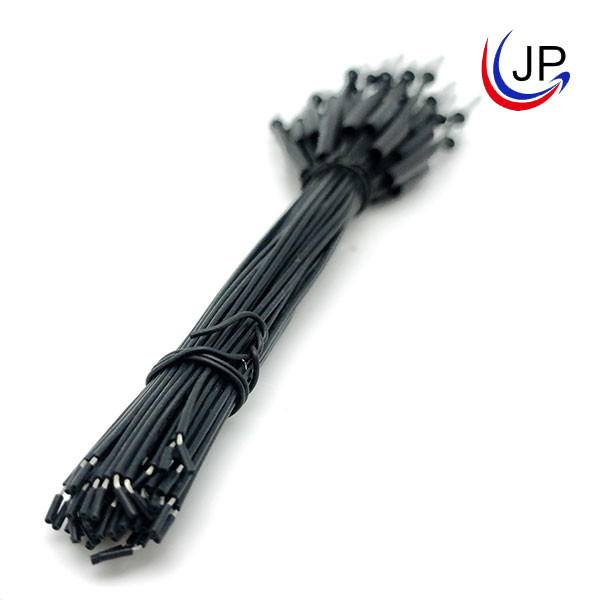

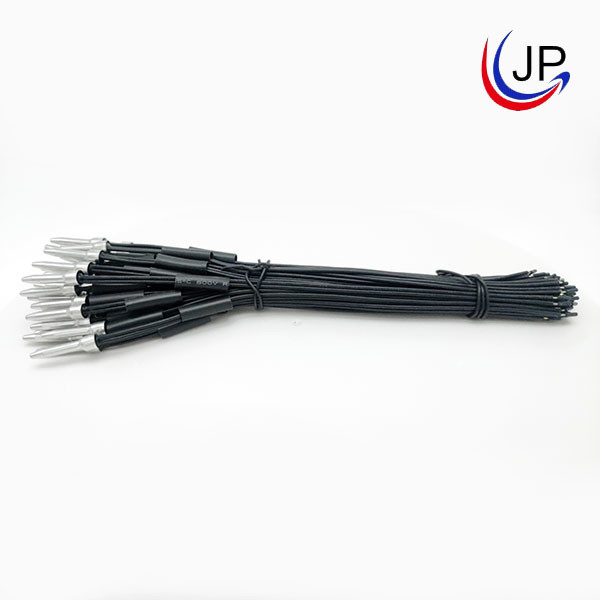

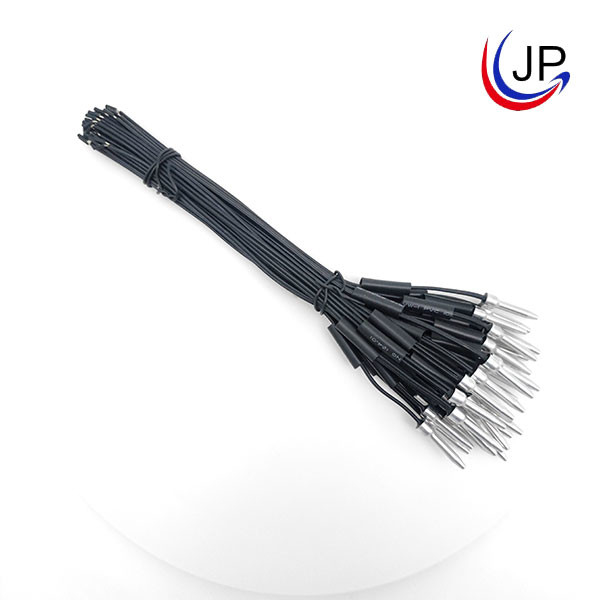

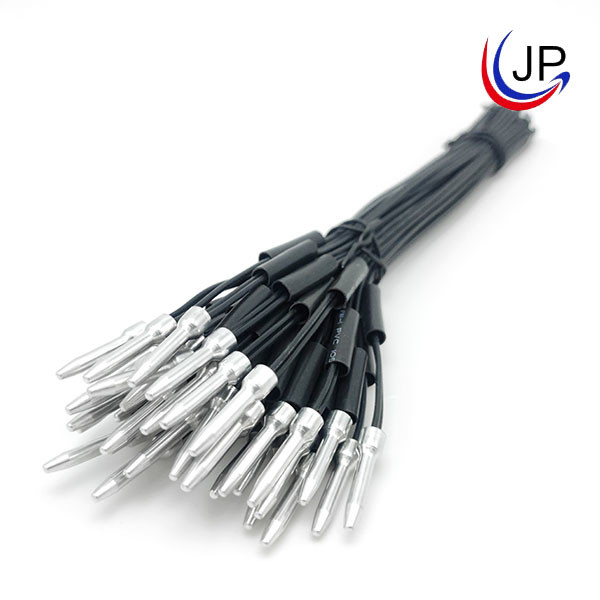

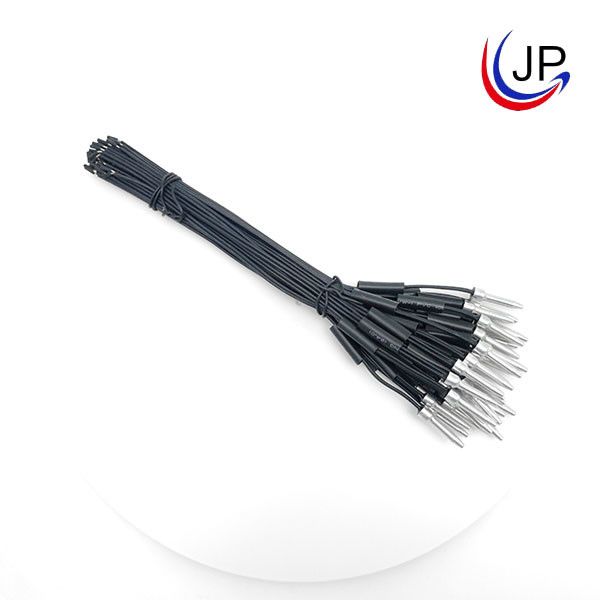

Product Images:
FAQ:
1. What is your MOQ?
Different type of our product has different MOQs, but we will provide you with the best MOQ according to your specific order.
2. Could you please send me free samples?
Of course, samples are available and free except for the express fee. Express like DHL, FedEx, SF express, UPS, EMS, etc are available. You can provide your express account or ask your courier to pick up the product you ordered.
3. What is your delivery time?
The delivery time is about 2-7days after receipt of payment. (Different types of products have different crafts, the exact time shall be consulted in advance.)
4. What is the payment method?
T/T, L/C, Western Union.
5. Can you accept OEM&ODM orders?
OEM/ODM is available from us. We accept all types of OEM&ODM orders and cooperations.
