| Place of Origin: | Anhui, China |
|---|---|
| Brand Name: | JINGPU SENSOR |
| Certification: | CE, ISO13485, ISO9001 |
| Model Number: | MF5A-5 |
| Minimum Order Quantity: | 3000 Pieces |
| Packaging Details: | Standard Packing |
| Delivery Time: | 2 Weeks |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 200 Million per Year |
| Product Name: | Insulated Wire PVC NTC Thermistor | Brand Name: | JINGPU SENSOR |
|---|---|---|---|
| Model Number: | MF5A-5 | Warranty: | 2 Years |
| OEM/ODM: | Available | Customization: | Available |
| Shipping: | By Air, By Sea, Express | Packing: | Standard Packing |
| Material: | Insulated Wire ( Cable & PVC Cable), NTC Chip And Epoxy Resin | Feature: | Comply With RoHS Standard |
| Operating Temperature Range(PVC): | -20℃~105℃ | Operating Temperature Range(): | -40℃~150℃ |
| High Light: | PVC NTC Thermistor Probe,Insulated Wire NTC Thermistor Probe,ISO9001 thermistor type temperature sensor |
||
Insulated Wire PVC NTC Thermistor Probe For Temperature Sensing Temperature Control And Temperature Compensation
Brief Introduction:
Insulated wire NTC thermistor is consist of the insulated wire ( cable & PVC cable), NTC chip, and epoxy resin, which is simple, functional, and accurate. The optional resistance value range is from 0.3kΩ to 2000kΩ, and the beta value range is 2500K to 4500K. These insulated wire NTC thermistors are widely used for home appliances, automotive, medical equipment, power tool, etc.
Features:
Comply with RoHS standard
miniature designed
Interchangeability
PVC insulated lead wires series Operating temperature range: -20℃~105℃
(PTFE) insulated lead wires series Operating temperature range: -40℃~150℃
Proven stability and reliability
Rapid time response
Custom probe assemblies are available
Application:
Temperature sensing, control, and compensation
Tight tolerance instrumentation
General instrumentation applications ( e.g. home appliance, automotive, power tool)
Part Number Code:
Structure and Dimensions:
| NO. | Name | Material Specification | QTY. | Remarks |
| 1 | Chip | NTC Thermal Chip | 1 | / |
| 2 | Encapsulation | Epoxy resin | 1 | / |
| 3 | Wire | Cable | 2 | / |
Electrical Specification:
| Rec. at 25℃(kΩ) | Beta value | (In air) Pmax(mW) | δ(mW/℃) | Thermal time constant τ(sec.) | Operating Temperature Range TL-TH(℃) | Total length L(mm) |
| 1 | B25/85=3435 | Approx.60 | Max.3.0 | Max.20 | -20℃~105℃(PVC wire)& -40℃~125℃( or XLPE wire) | 13.5~1000 |
| 1.5 | B25/50=3850 | |||||
| 1.5 | B25/50=3935 | |||||
| 2 | B25/85=3550 | |||||
| 2 | B25/85=3935 | |||||
| 2.08 | B25/85=3580 | |||||
| 2.2 | B25/50=3935 | |||||
| 3 | B25/50=3950 | |||||
| 5 | B25/50=3470 | |||||
| 5 | B25/50=3950 | |||||
| 8 | B25/100=3988 | |||||
| 10 | B25/85=3435 | |||||
| 10 | B25/50=3470 | |||||
| 10 | B25/50=3935 | |||||
| 10 | B25/50=3950 | |||||
| 20 | B25/50=3950 | |||||
| 47 | B25/50=3950 | |||||
| 50 | B25/50=3950 | |||||
| 50 | B25/50=4200 | |||||
| 100 | B25/50=4200 | |||||
| 200 | B25/50=4200 | |||||
| 500 | B25/50=4450 | |||||
| 1000 | B25/85=4600 |

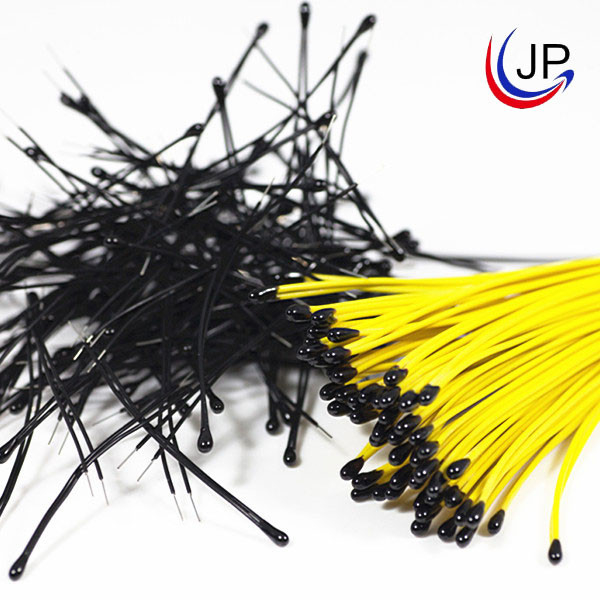

Product Display:

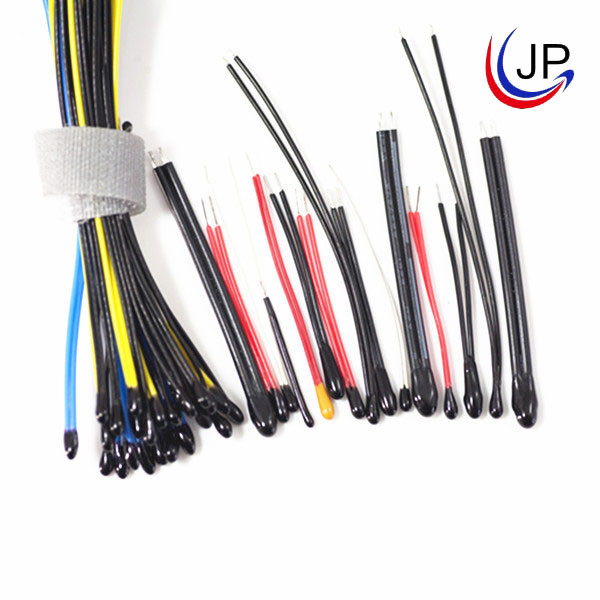

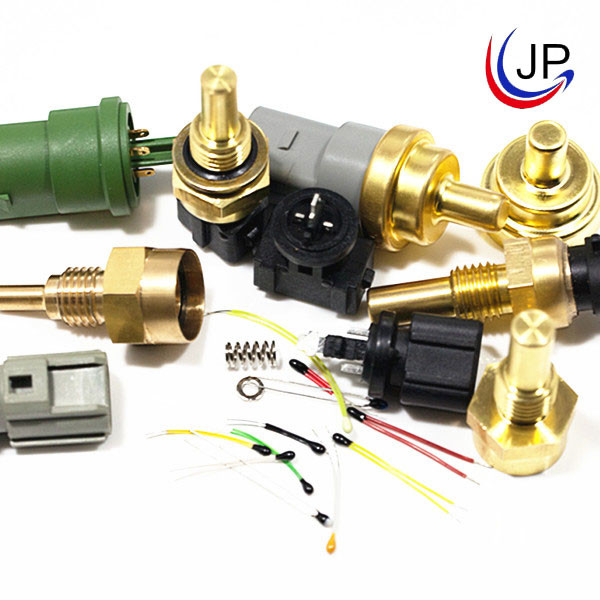

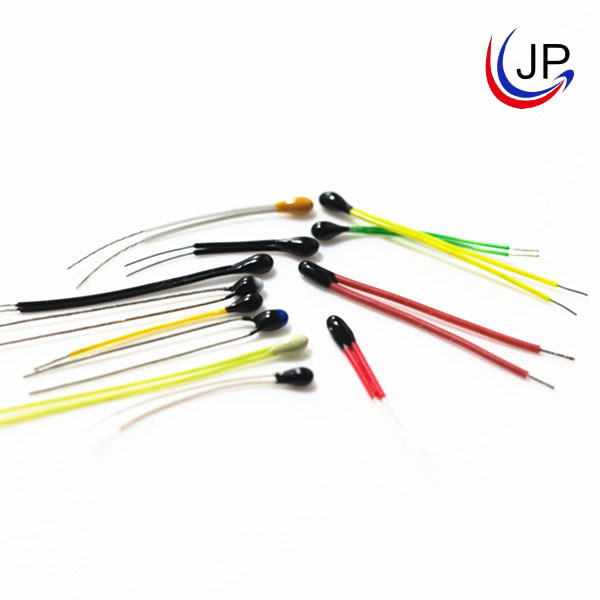

Other Product Images:
