| Place of Origin: | Anhui, China |
|---|---|
| Brand Name: | JINGPU SENSOR |
| Certification: | CE, ISO13485, ISO9001, RoHS |
| Model Number: | JP411 |
| Minimum Order Quantity: | 500 Pieces |
| Price: | To be negotiated |
| Packaging Details: | Standard Packaging |
| Delivery Time: | 2 Weeks |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 200 Million per Year |
| Nominal Resistance: | R25℃=2.252KΩ | Tolerance: | （25~45）℃±0.1℃ |
|---|---|---|---|
| Operation Temperature Range:: | 0℃~50℃ | Chip: | NTC Thermistor |
| Tube: | PI Tube | Wire: | Enamelled Wire |
| Plug: | PVC Plug | Custom: | Available |
| High Light: | jingpu Medical ntc probe sensor,jingpu ntc probe sensor Disposable,jingpu ntc probe sensors Disposable |
||

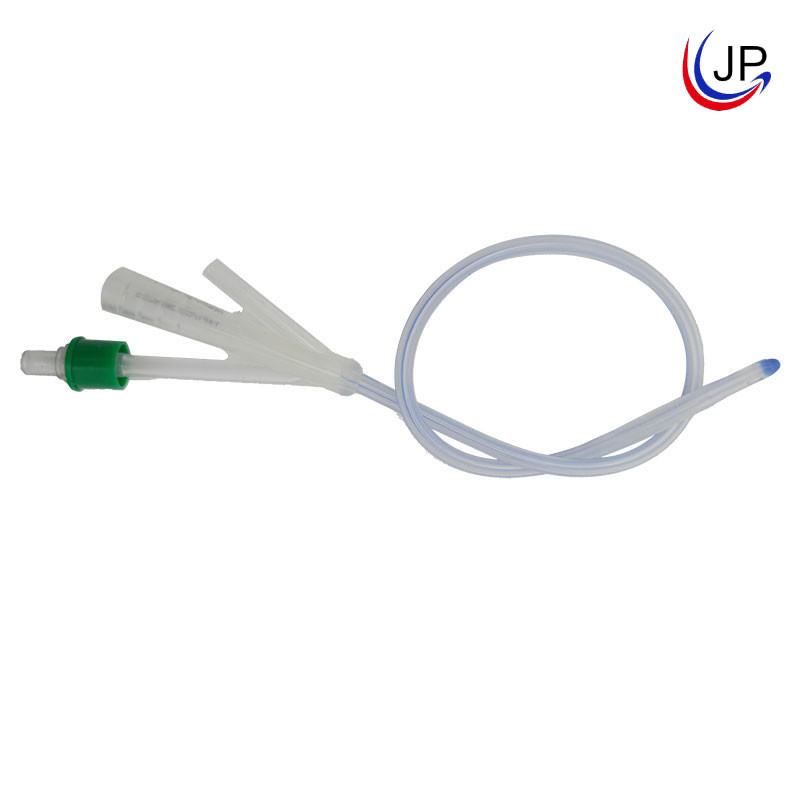

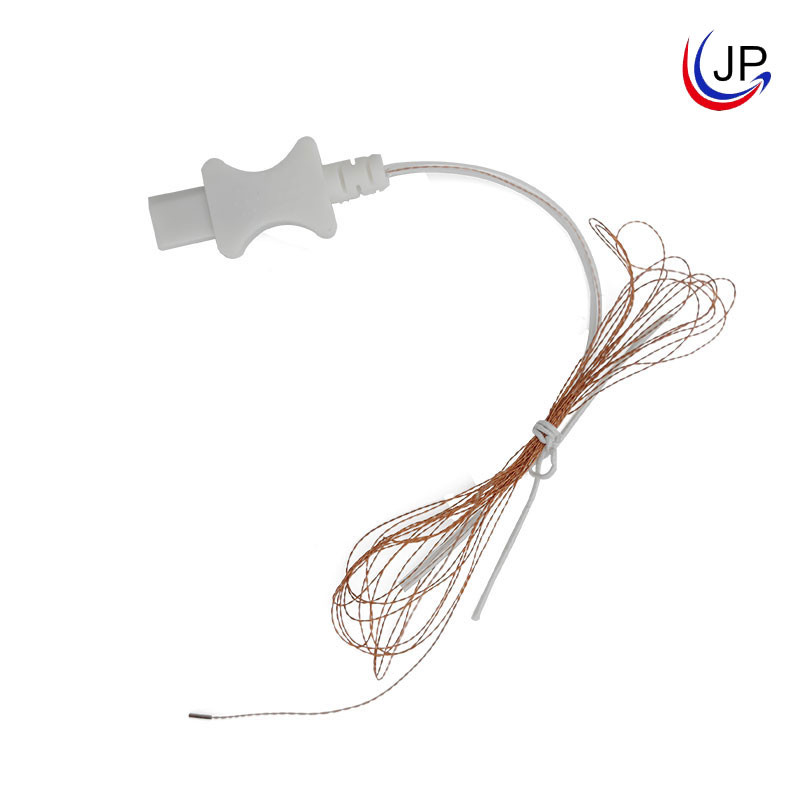

Medical NTC Probe Sensor Disposable For Urinary Catheter
Product Description:
The JP411 disposable urinary catheter medical temperature sensor is used to monitor the urethral canal temperature of the human body. The sensor is packaged in a three-lumen catheter, and the nominal resistance value of the product is 2.252KΩ. The total length of the product is generally 0.7 ~ 0.9 meters, and the measurement tolerance is (25 ~ 45) ℃ ± 0.1 ℃.
Features:
Disposable
Tolerance:(25~45)℃±0.1℃
Operation Temperature Range: 0℃~50℃
Extension Cable available
R25℃=2.252KΩ
Application:
Compatible with monitors, suitable for the emergency clinic, ICU, operation room, etc.
Continuous monitoring of patient temperature.
Structure and Dimensions(mm):
Electrical Specification:
| Item | Code | Test condition | Performance requirements | Unit |
| (Rated resistance) | R25℃ | +25℃±0.02℃ | 2.252 | kΩ |
| (B value) | B25/50 | +25℃±0.02℃, +50℃±0.02℃ | 3935 | K |
| (Response time) | τ | 23℃(air)→44℃(water),≤±0.1℃ | ≤150 | S |
| (Max.Energy Dissipation) | Pmax | In water(≤1.2mA),≤0.02℃ | Approx 50 | μW |
| (Withstand voltage) | Hi-pot | AC500V 1mA 1s In still air | No break down | V |
| (Operating Temp. Range) | OTR | In still air | 0～50 | ℃ |
