| Place of Origin: | Anhui, China |
|---|---|
| Brand Name: | JP SENSOR |
| Certification: | CE, ISO13485, ISO9001, RoHS |
| Model Number: | JP402 |
| Minimum Order Quantity: | 1000 Pieces |
| Price: | To be negotiated |
| Packaging Details: | Carton Packing |
| Delivery Time: | 2 Weeks |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 200 Million per Year |
| Resistance: | 2.252KΩ Or 10KΩ | Tolerrance: | （25~45）℃±0.1℃ |
|---|---|---|---|
| Operating Temperature Range: | 0℃~50℃ | Application: | Suitable For Medical Monitoring Equipment |
| Chip: | NTC Thermistor | Probe: | SUSφ2*9.5 |
| Cable: | PVC 28AWG OD2.0 Shielded Round Sheath Wire | Plug: | Micro |
| High Light: | jingpu NTC Medical Temperature Sensor,jingpu 2.252K Medical Temperature Sensor,jingpu NTC Medical Temperature Sensors |
||

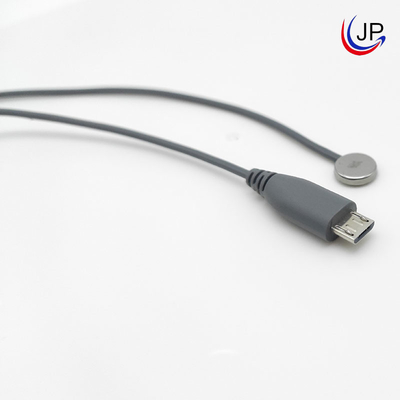

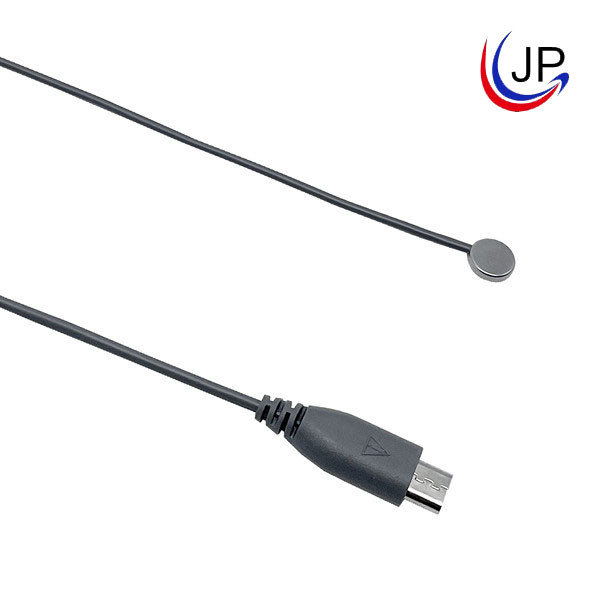

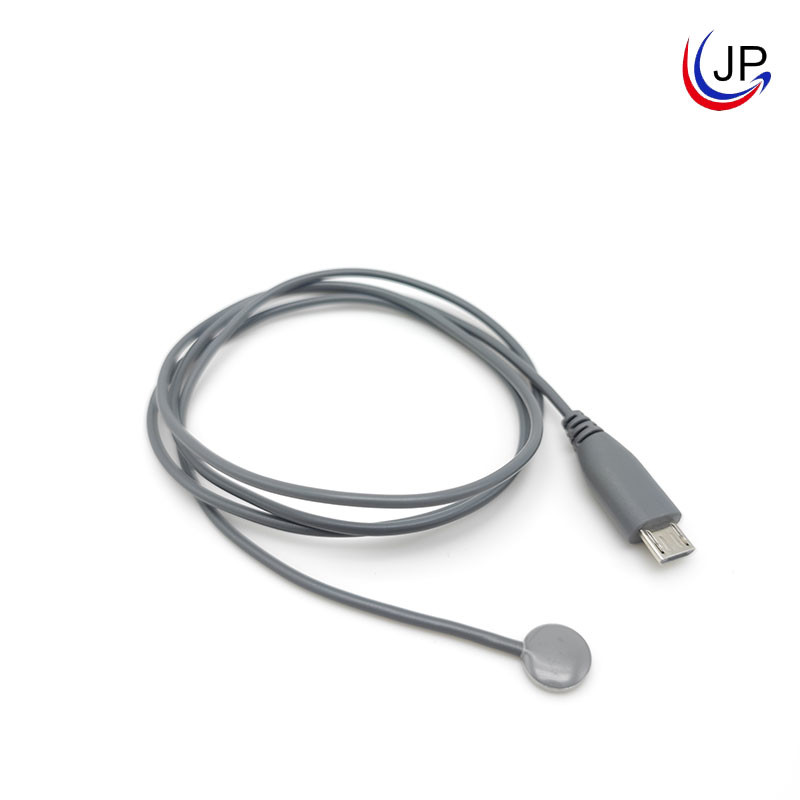

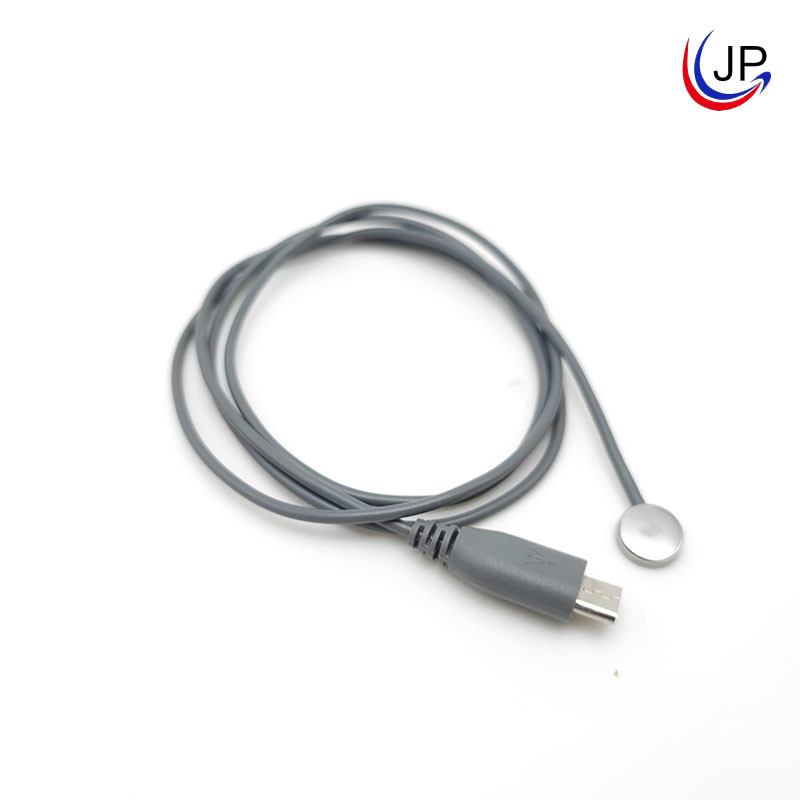

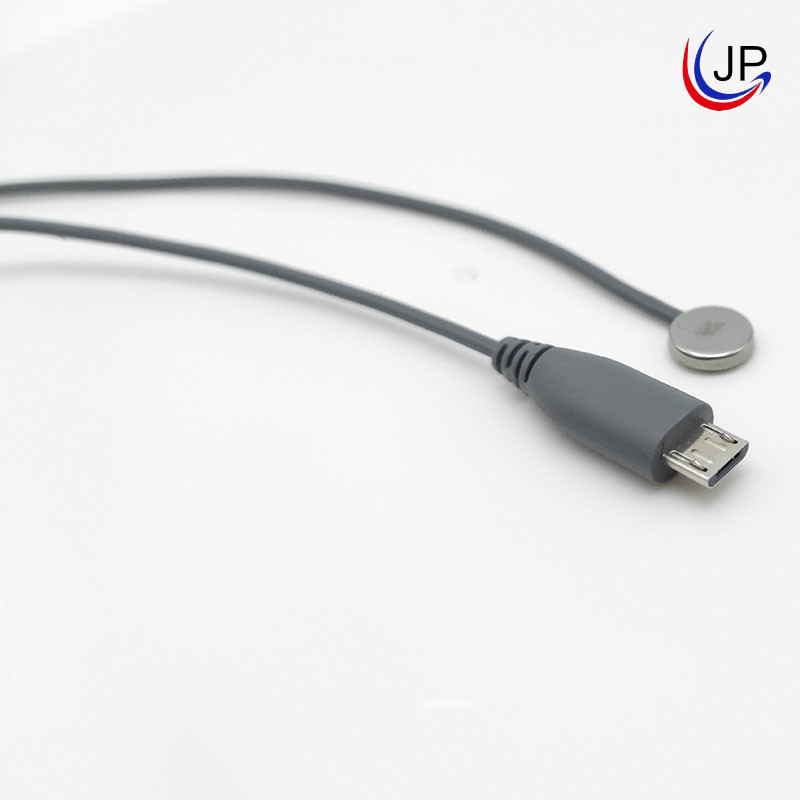

10K 2.252K NTC Medical Temperature Sensor Micro Plug Skin Temperature Probe
Brief Introduction:
Skin temperature probe medical temperature sensor is widely used for human body surface temperature measurement. The sensor probe is epoxy and metal disk, MICRO plug, or customized connector according to the customer’s requirement. The rated resistance value 2.252KΩ or 10KΩ.
Features:
Human body surface temperature measurement
Reusable
(25~45)℃±0.1℃
Operating temperature range: 0℃~50℃
Application:
Suitable for medical monitoring equipment
Structure and Dimensions:(Unit: mm)
| NO. | Name | Material Specification | QTY. | Remarks |
| 1 | Chip | NTC Thermistor | 1 | |
| 2 | Probe | SUSφ2*9.5 | 1 | / |
| 3 | Encapsulation | Epoxy | / | gray |
| 4 | Cable | PVC 28AWG OD2.0 Shielded round sheath wire | 1 | gray |
| 5 | Plug | MICRO | 1 | gray |
