| Place of Origin: | Anhui, China |
|---|---|
| Brand Name: | JP SENSOR |
| Certification: | CE, ISO13485, ISO9001, RoHS |
| Model Number: | JP404 |
| Minimum Order Quantity: | 1000 Pieces |
| Price: | Negotiable |
| Packaging Details: | Carton Package |
| Delivery Time: | 2 Weeks |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 200 Million per Year |
| Resistance: | R25=10kΩ（±0.1℃) | B Value: | B25 / 85=3976±0.5% |
|---|---|---|---|
| Wire: | OD 0.12*2 Enameled Wire | Operating Temperature: | 0℃~60℃ |
| Temperature Tolerance: | 25℃~45℃ ±0.1℃ | Usage: | Applied For Urinary Catheters, Cardiothoracic Surgery, Laboratory Animal Research, Etc. |
| Customization: | Available | Feature: | Comply With RoHS, Fast Response, Miniature |
| High Light: | jingpu NTC medical thermistor,jingpu 3976 medical thermistor,jingpu 10K ntc temperature probe |
||

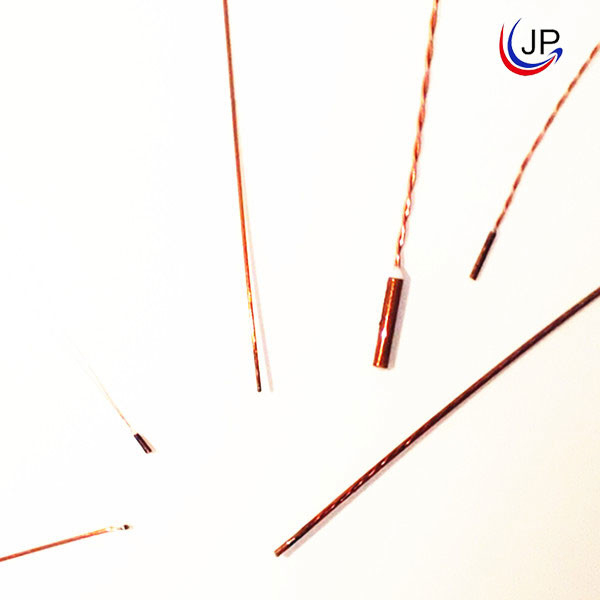

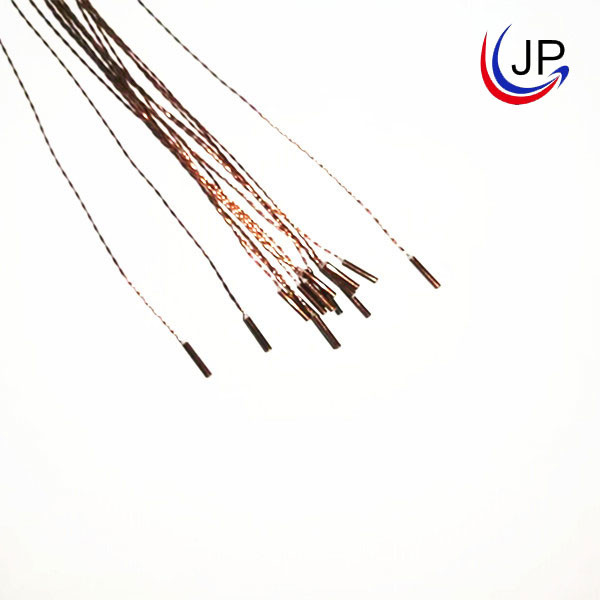

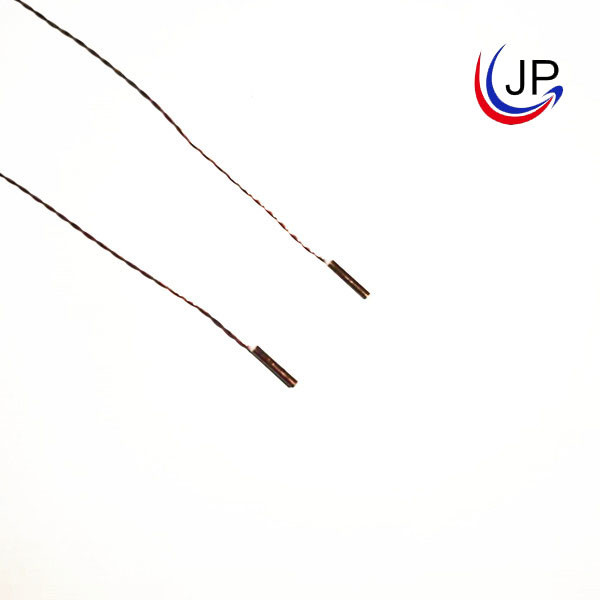

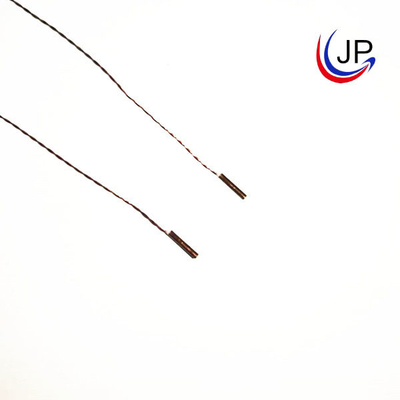

10K 3976 PI Max NTC Medical Thermistor 0.5mm Epoxy Resin Enamelled Wire
Brief Introduction:
JP404 medical temperature sensor is a miniature medical temperature sensor NTC thermistor. After the miniature chip is welded, it is covered with a polyimide tube with an outer diameter of Max φ0.5. The inside of the sleeve is filled with epoxy, and the lead is covered by OD0.12*2 enameled wire.
Features:
Comply with RoHS
Miniature
Fast Response
Operating Temperature Range: 0℃~60℃
Measurement Tolerance: 25℃~45℃ ±0.1℃
R25=10kΩ(±0.1℃)
B25/85=3976±0.5%
Application:
Applied for urinary catheters, laboratory animal research, cardiothoracic surgery, etc.
Structure and Dimensions:(Unit: mm)
Electrical Specification:
| Item | Code | Test condition | Performance requirements | Unit |
| (Rated resistance) | R25℃ | +25℃±0.02℃ | 10 | kΩ |
| (B value) | B25/85 | +25℃±0.02℃, +85℃±0.02℃ | 3976 | K |
| (Response time) | τ | 23℃(air)→44℃(water),≤±0.1℃ | ≤5 | S |
| (Max.Energy Dissipation) | Pmax | In water(≤1.2mA),≤0.02℃ | Approx 50 | μW |
| (Withstand voltage) | Hi-pot | AC300V 1mA 1s In still air | No break down | V |
| (Operating Temp. Range) | OTR | In still air | 0～50 | ℃ |
