| Place of Origin: | Anhui, China |
|---|---|
| Brand Name: | JINGPU SENSOR |
| Certification: | ISO9001, RoHS |
| Model Number: | MF5A-5 |
| Minimum Order Quantity: | 500 Pieces |
| Price: | To be negotiated |
| Packaging Details: | Standard Packaging |
| Delivery Time: | 2 Weeks |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 200 Million per Year |
| Resistance: | R25℃=10kΩ±1% | B Value: | B25/85=3435k±1% |
|---|---|---|---|
| Operating Temperature Range: | -40℃~150℃ | Application: | General Instrumentation Applications ( E.g. Home Appliance, Automotive, Power Tool) |
| Cable: | Cable | Encapsulation: | Epoxy Resin |
| High Light: | 3435k poxy Thermistor,10k Epoxy Thermistor,Batteries NTC Probe Temperature Sensor |
||

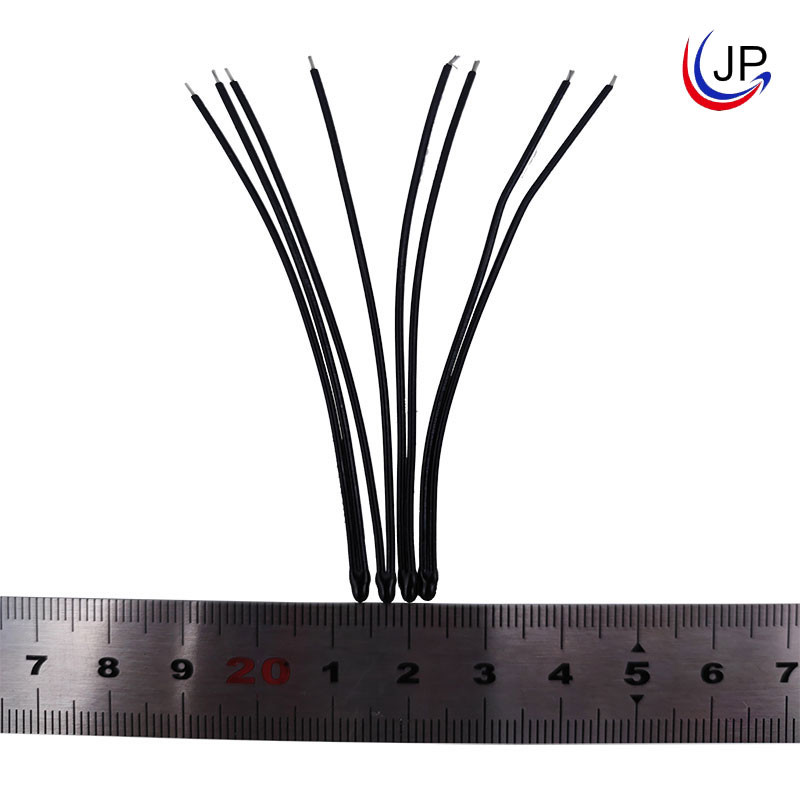

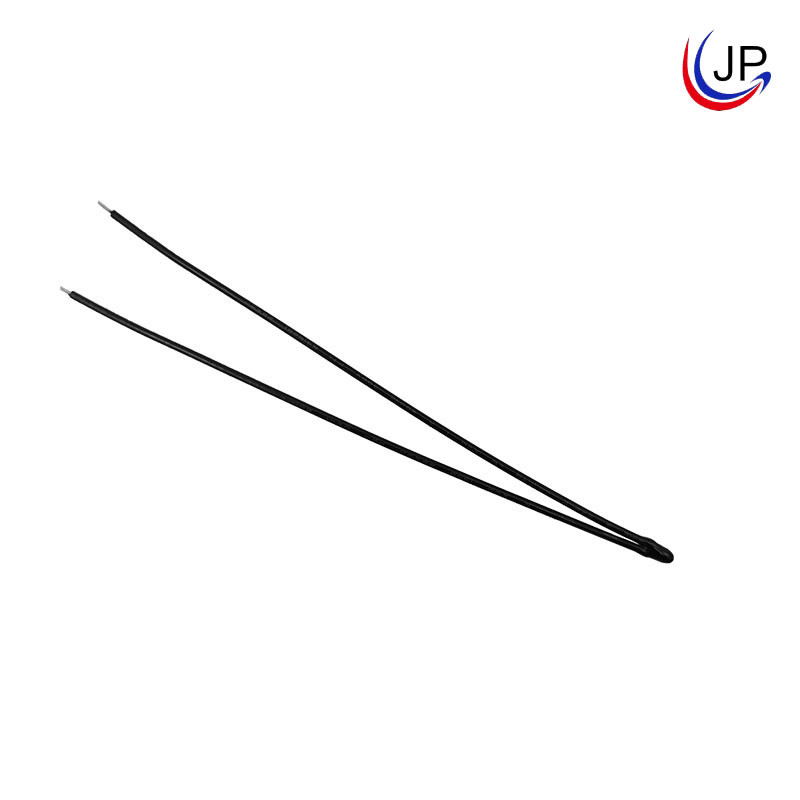

NTC 10k 3435k Epoxy Thermistor, Batteries NTC Probe Temperature Sensor
Product Description:
wire, NTC chip, and epoxy resin. These insulated wire NTC thermistors are widely used for home appliances, automotive, medical equipment, power tool, etc.
Features:
Comply with RoHS standard
Interchangeability
(PTFE) insulated lead wires series Operating temperature range: -40℃~150℃
R25℃=10kΩ±1%
B25/85=3435k±1%
Application:
General instrumentation applications ( e.g. home appliances, automotive, power tools)
Structure and Dimensions:
Electrical Specification:
| Rec. at 25℃(kΩ) | Beta value | (In air) Pmax(mW) | δ(mW/℃) | Thermal time constant τ(sec.) | Operating Temperature Range TL-TH(℃) | Total length L(mm) |
| 1 | B25/85=3435 | Approx.60 | Max.3.0 | Max.20 | -20℃~105℃(PVC wire)& -40℃~125℃( or XLPE wire) | 13.5~1000 |
| 1.5 | B25/50=3850 | |||||
| 1.5 | B25/50=3935 | |||||
| 2 | B25/85=3550 | |||||
| 2 | B25/85=3935 | |||||
| 2.08 | B25/85=3580 | |||||
| 2.2 | B25/50=3935 | |||||
| 3 | B25/50=3950 | |||||
| 5 | B25/50=3470 | |||||
| 5 | B25/50=3950 | |||||
| 8 | B25/100=3988 | |||||
| 10 | B25/85=3435 | |||||
| 10 | B25/50=3470 | |||||
| 10 | B25/50=3935 | |||||
| 10 | B25/50=3950 | |||||
| 20 | B25/50=3950 | |||||
| 47 | B25/50=3950 | |||||
| 50 | B25/50=3950 | |||||
| 50 | B25/50=4200 | |||||
| 100 | B25/50=4200 | |||||
| 200 | B25/50=4200 | |||||
| 500 | B25/50=4450 | |||||
| 1000 | B25/85=4600 |
