| Place of Origin: | Anhui, China |
|---|---|
| Brand Name: | JP SENSOR |
| Certification: | ISO9001, RoHS |
| Model Number: | MF5A-3A |
| Minimum Order Quantity: | 5000 Pieces |
| Price: | Negotiable |
| Packaging Details: | Carton Packing |
| Delivery Time: | 2 Weeks |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 200 Million per Year |
| Resistance: | R25℃=30KΩ | B Value: | B25/100=3964 |
|---|---|---|---|
| Components: | Copper Clad Steel Lead Wire, Soldered NTC Chip And Epoxy Resin | Resistance Range: | 0.3kΩ To 2000kΩ |
| Beta Value Range: | 2500K To 4500K | Operating Temperature Range: | -40℃~125℃ |
| Application: | Home Appliance Such As Referigerator, Dryer, HVAC Etc And Automotive Parts | Cable: | CP Cable |
| High Light: | Epoxy Coated ntc negative temperature coefficient thermistor,3964K ntc negative temperature coefficient thermistor,30K Negative Temperature Coefficient Thermistor |
||

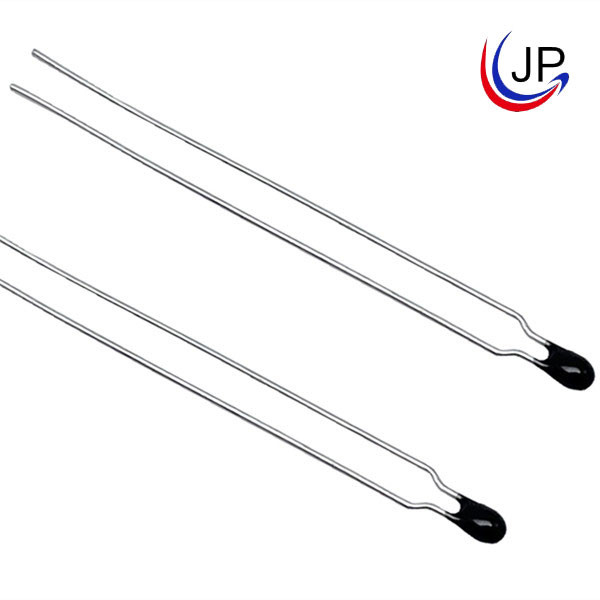

30K 3964K Epoxy Coated NTC Negative Temperature Coefficient Thermistor CP Cable
Brief Introduction:
30K 3964K Epoxy Coated NTC Negative Temperature Coefficient Thermistor CP Cable is composed of Copper clad steel lead wire, soldered NTC chip, and epoxy resin. The sensor features are simple, functional, and highly accurate. The optional resistance value range is from 0.3kΩ to 2000kΩ, and the beta value range is from 2500K to 4500K.
Features:
Comply with RoHS standard
miniature designed
good interchangeable
Operating temperature range: -40℃~125℃
Low-cost, solid-state temperature sensor
High sensitivity to changes in temperature
Suitable for temperature measurement, control, and compensation
Application:
Home appliances such as refrigerators, dryers, HVAC, etc
Automotive parts
Part Number Code:
Structure and Dimensions:(unit: mm)
Electrical Specification:
| Rec. at 25℃(kΩ) | Beta value | (In air)Pmax(mW) | δ(mW/℃) | thermal time constant τ(sec.) | Operating Temperature Range TL-TH(℃) | Total length L(mm) |
| 1 | B25/85=3435 | Approx.60 | Max.3.0 | Max.20 | -40℃~125℃ | 8~100 |
| 1.5 | B25/50=3850 | |||||
| 1.5 | B25/50=3935 | |||||
| 2 | B25/85=3550 | |||||
| 2 | B25/85=3935 | |||||
| 2.08 | B25/85=3580 | |||||
| 2.2 | B25/50=3935 | |||||
| 3 | B25/50=3950 | |||||
| 5 | B25/50=3470 | |||||
| 5 | B25/50=3950 | |||||
| 8 | B25/100=3988 | |||||
| 10 | B25/85=3435 | |||||
| 10 | B25/50=3470 | |||||
| 10 | B25/50=3935 | |||||
| 10 | B25/50=3950 | |||||
| 20 | B25/50=3950 | |||||
| 47 | B25/50=3950 | |||||
| 50 | B25/50=3950 | |||||
| 50 | B25/50=4200 | |||||
| 100 | B25/50=4200 | |||||
| 200 | B25/50=4200 | |||||
| 500 | B25/50=4450 | |||||
| 1000 | B25/85=4600 |

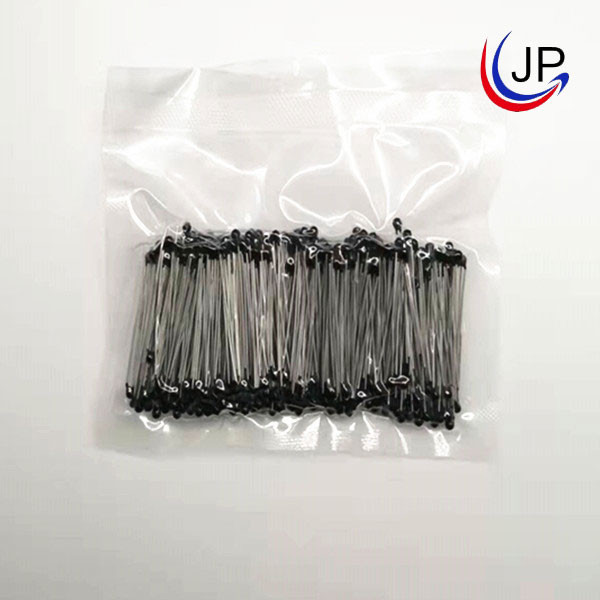

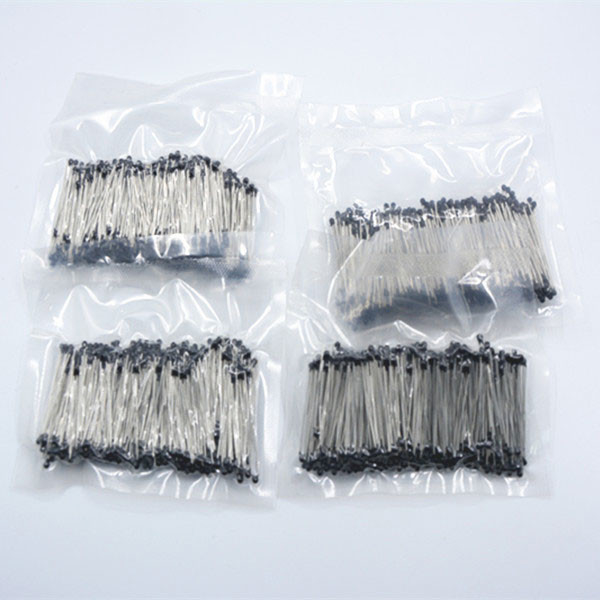

Standard packing (inner packing): 500pcs/polybag
